Symbol Symbol Color Symbol Symbol Color Symbol Name
WH White GN Green Grounding wire
YE Yellow BN Brown COMP Compressor
RD Red BU Blue CAP Jumper Cap
YEGN Yellow/Green BK Black / /
VT Violet OG Orange / /
5. Electrical Part

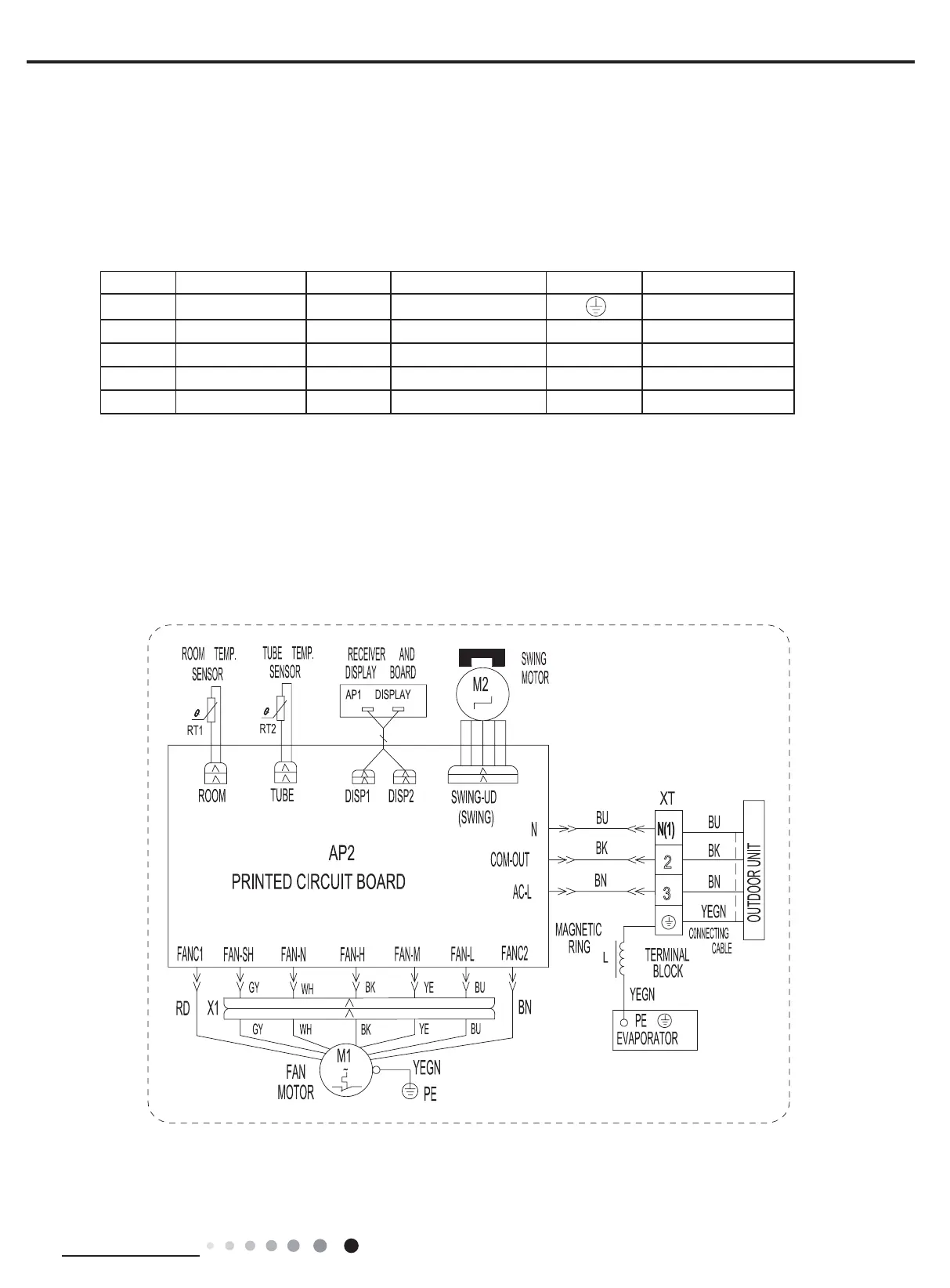

5.1 Wiring Diagram
● Indoor Unit
● Instruction
Note: Jumper cap is used to determine fan speed and the swing angle of horizontal lover for this model.
