Lennox LM036CI-100P232-1X User Manual

43
Installation and Maintenance
Service Manual
NO.
Description
Part Code
Qty
LM036CI-100P232-1X LM036HI-100P232-1X
Product Code Y6695 Y6705
1 Front Panel Assy
20900700005 20900700005
1
2 Decorative Strip Sub-Assy / / /
3 Stand Bar 2421212001 2421212001 1
4 Filter Sub-Assy 11122106 11122106 2
5 Front Case Sub-assy 20900700005 20900700005 1
6 Upper Guide Louver
1051216601 1051216601
1
7 Lower Guide Louver 1051216701 1051216701 1
8 Axile Bush 10542704 10542704 6
9 Air Louver 2 1051216902 1051216902 2
10 Air Louver 1 1051216802 1051216802 16
11 Connecting Rod 10582086 10582086 2
12 Louver Clamp 26112158 26112158 9
13 Step Motor
/ /
/
14 Water Tray 2018213802 2018213802 1
15 Air Guider System in Water Tray Assy 00007000006 00007000006 1
16 Screw Cover
2425200506 2425200506
4
17 Rubber Plug (Water Tray) 76712012 76712012 1
18 Rear Case Sub-Assy 20162027 20162027 1
19 Cross Flow Fan 1 10352039 10352039 1
20 Bearing Holder Sub-assy
26152028 26152028
1
21 Cross Flow Fan 2 10352040 10352040 1
22 O-Gasket sub-assy of Bearing 76512051 76512051 1
23 Left Evaporator Support 24212041 24212041 1
24 Evaporator Assy 01002596 01002664 1
25 Wall Mounting Frame
01252398 01252398
1
26 Fan Motor 1501212003 1501212003 1
27 Pipe Clamp 26112071 26112071 1
28 Drainage Hose 0523001404 0523001404 1
29 Cover Plate 2012212402 2012212402 1
30 Motor Fixed Clip
26112354 26112354
1
31 Step Motor 1521210701 1521210701 1
32 Press Plate(Crank) 26112070 26112070 1
33 Crank-guide 10582041 10582041 1
34 Upper Crank 10562004 10562004 1
35 Lower Crank
10562005 10562005
1
36 Step Motor / / /
37 Electric Box Assy 10000202768 10000202769 1
38 Electric Box
20112127 20112127
1
39 Capacitor CBB61
3301074713 3301074713
1
40 Terminal Board
42011233 42011233
1
41 Main Board
30135545 30135546
1
42 Display Board
30565277 30565277
1
43 Electric Box Cover
20112044 20112044
1
44 Electric Box Cover
20112044S 20112044S
1
45 Remote Controller
30510112_L29951 30510112_L29951
1
46 Connecting Cable
400205235 400205235
1
47 Connecting Cable
400205402 400205402
1
48 Temperature Sensor
390000451 390000451
1
49 Ambient Temperature Sensor 390000591 390000591 1

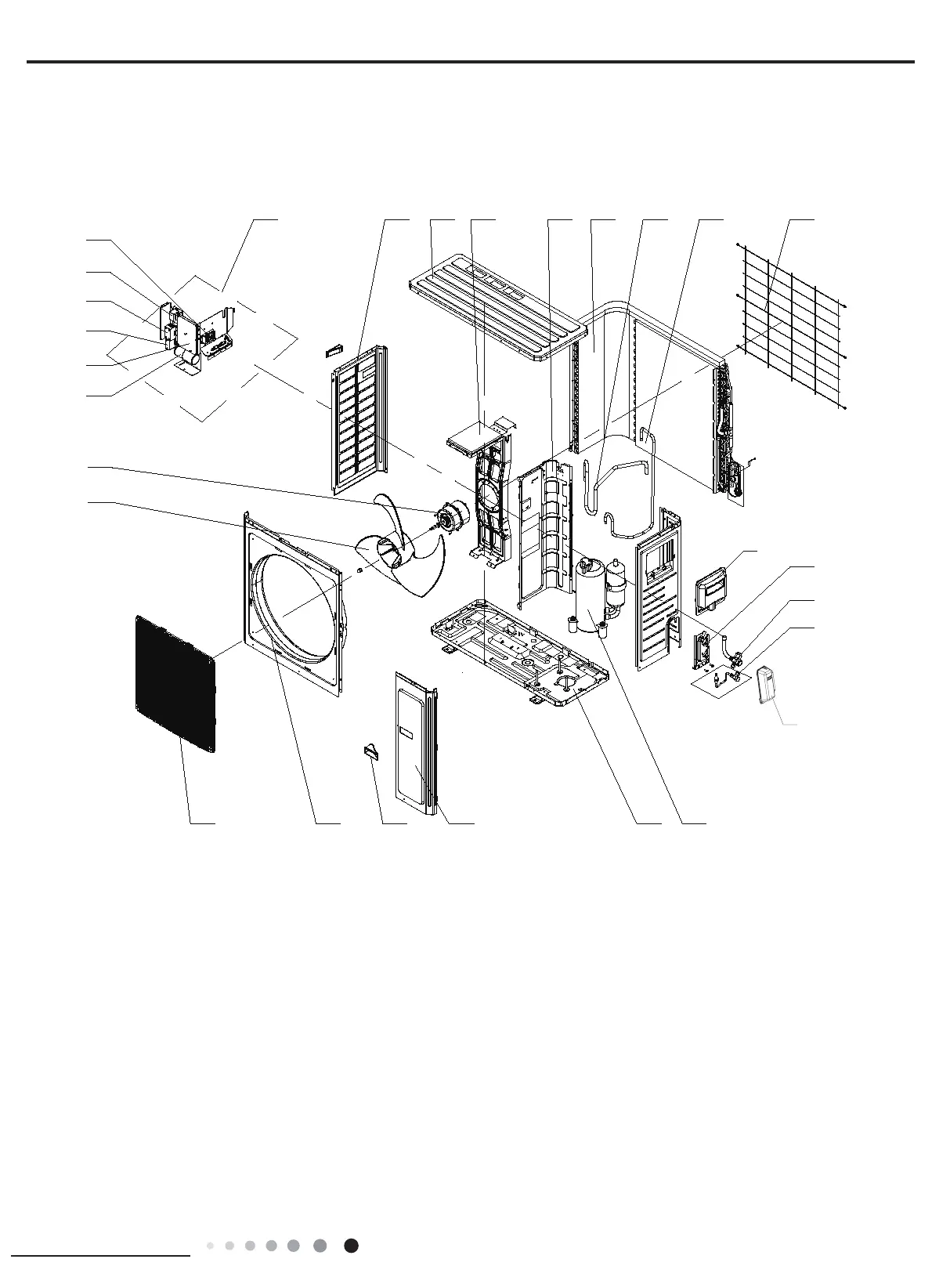

10.2 Outdoor Unit
LM036CO-100P232-1X
9
7
6
8
1
2
20
21
5
3
4
2526
24
23
22
18
27
19
15
17
1413121110
16
28
