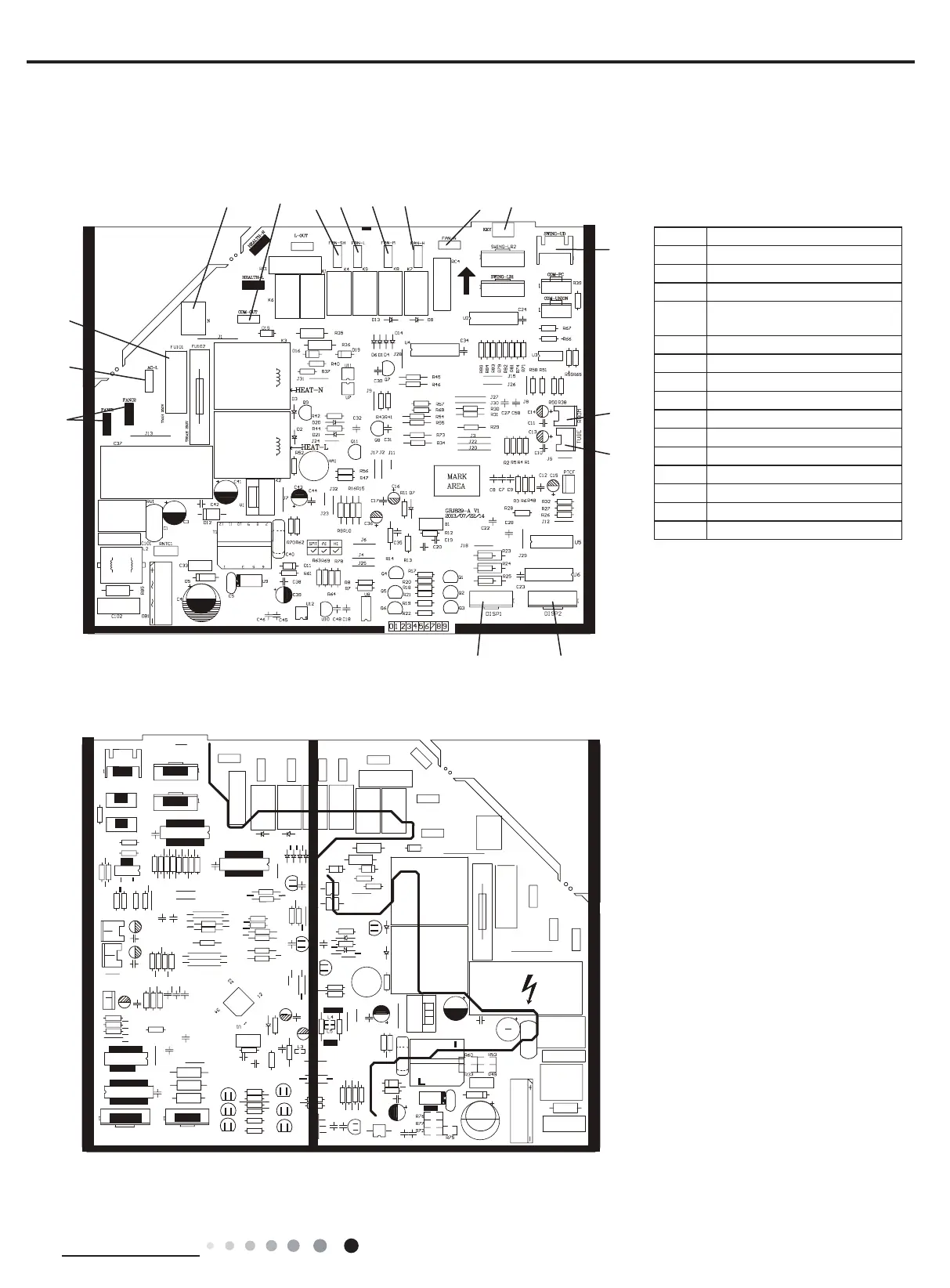

5.2 PCB Printed Diagram
● Top view
● Bottom view
1 Fan motor capacitor terminal
2 Live wire
3 Fuse
4 Neutral wire
5
Indoor & outdoor unit
communication cable terminal
6
超强风接插端子
7 Low fan level terminal
8 Medium fan level terminal
9 High fan level terminal
10
风机零线接插端子
11 Auto button
12 Up & down swing terminal
13 Ambient temp. sensor
14 Tube temp. sensor
15 No.2 double-8 display terminal
16 No.1 double-8 display terminal
1
2
3
456879 1110
12
13
14
15
16
