Technical Information
Service Manual

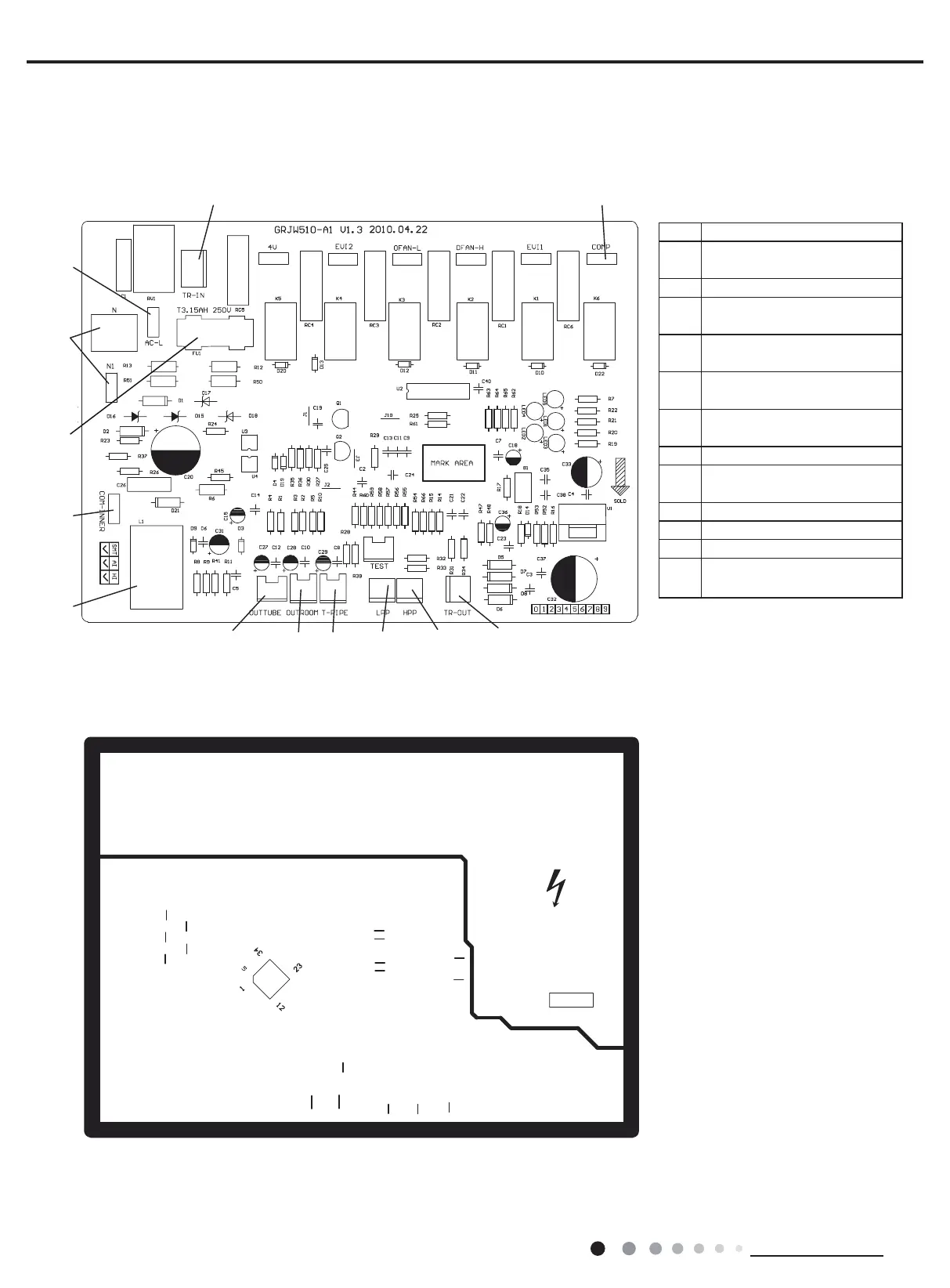

● Top view
● Bottom view
Outdoor Unit
/LM036CO-100P232-1X
1 Input of transformer
2
Terminal for outdoor fan and
compressor
3 Output of transformer
4
Terminal for high pressure
protection
5
Terminal for low pressure
protection
6
Terminal for outdoor ambient
temp sensor
7
Terminal for outdoor pipe temp
sensor
8 Current mutual-inductor
9
Terminal for communication
wire
10 Protective tube
11 Terminal for neutral wire
12 Terminal for live wire
13
Wiring terminal of outdoor
discharge temperature sensor
1 2
3
4
5
613
7
9
8
10
11
12
