Lennox LM036CI-100P232-1X User Manual

13
Technical Information
Service Manual
12 34
5
6
7
81415 9
10
11
12
13

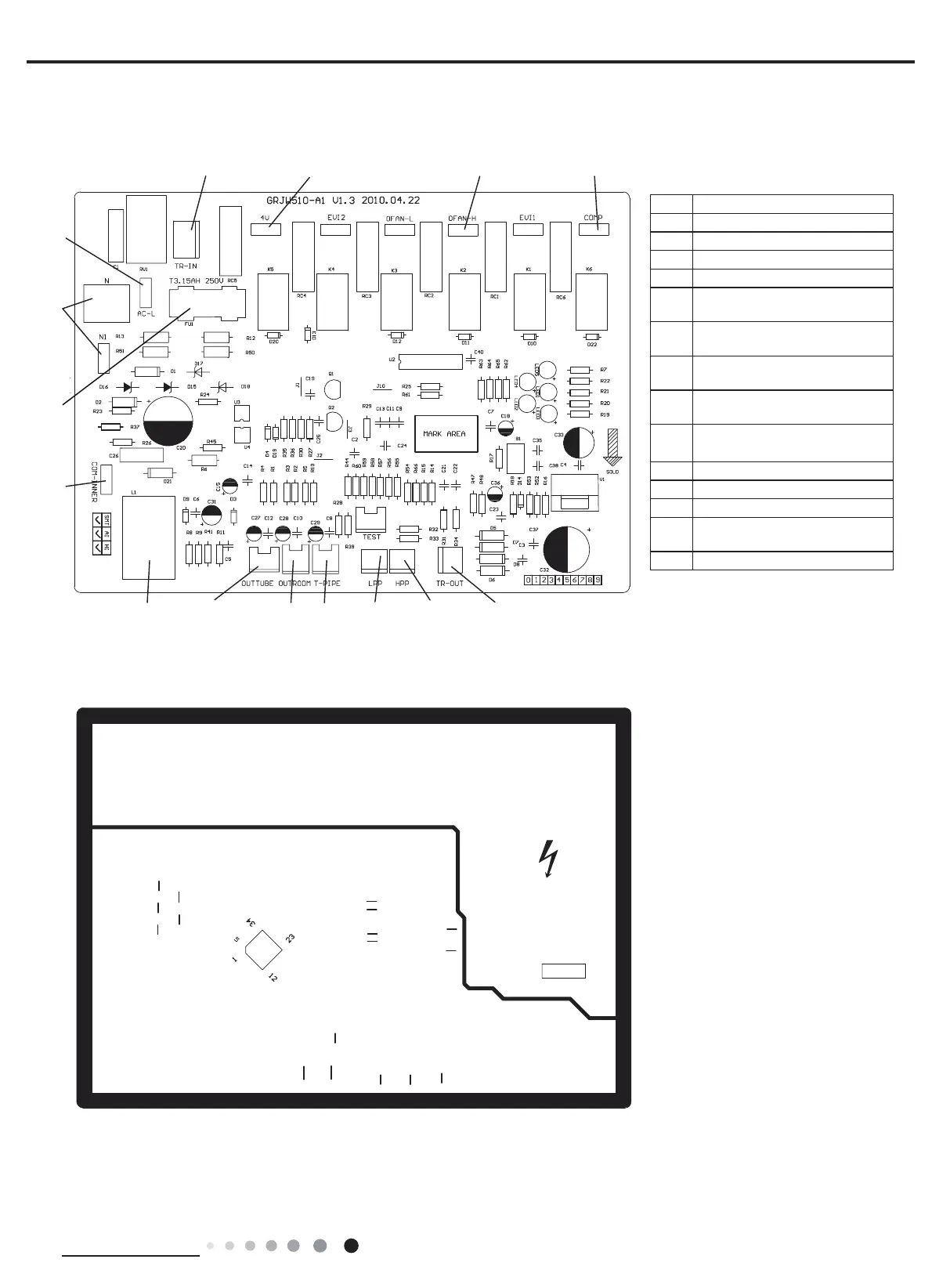

● Top view
● Bottom view
LM036HO-100P232-1X
1 Input of transformer
2 Terminal for 4-way valve
3 Terminal for outdoor fan
4 Terminal for compressor
5 Output of transformer
6
Terminal for high pressure
protection
7
Terminal for low pressure
protection
8
Terminal for outdoor ambient
temp sensor
9
Terminal for outdoor pipe temp
sensor
10
Terminal for communication
wire
11 Protective tube
12 Terminal for neutral wire
13 Terminal for live wire
14
Wiring terminal of outdoor
discharge temperature sensor
15 Current mutual-inductor
