Lennox M33A036S4-1P - MPA024 S4 S, MPA030 S4 S, MPA036 S4 S Dimensions

Lennox Mini-Split Service Manual / Page 42

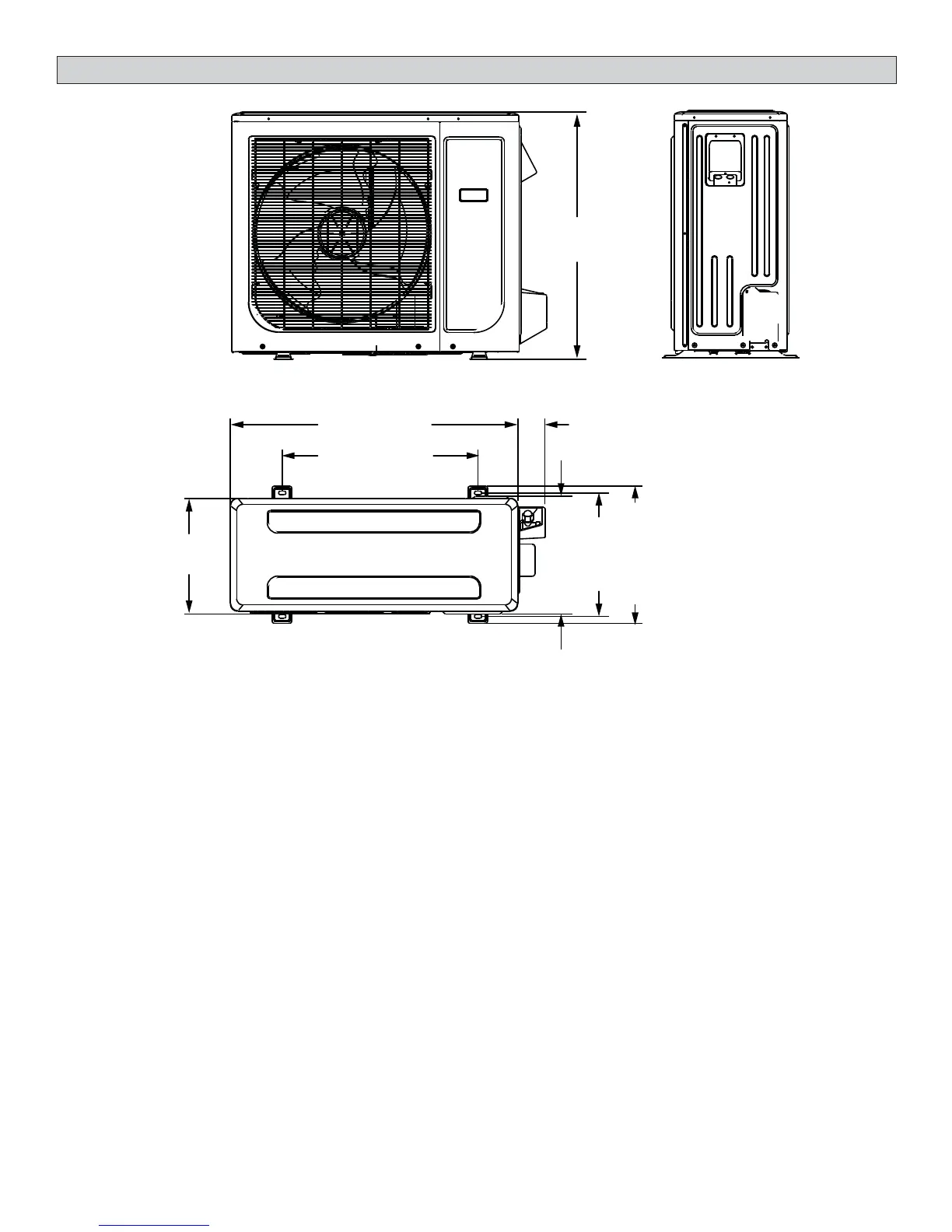

MPA024S4S, MPA030S4S, MPA036S4S Dimensions
FRONT VIEW
SIDE VIEW
31-7/8
(810)
TOP VIEW
37-1/4 (946)
25-1/4 (641)
15-1/2
(394)
15-1/8 (384)
16 (406)
17-5/8 (448)
3-3/8 (86)
