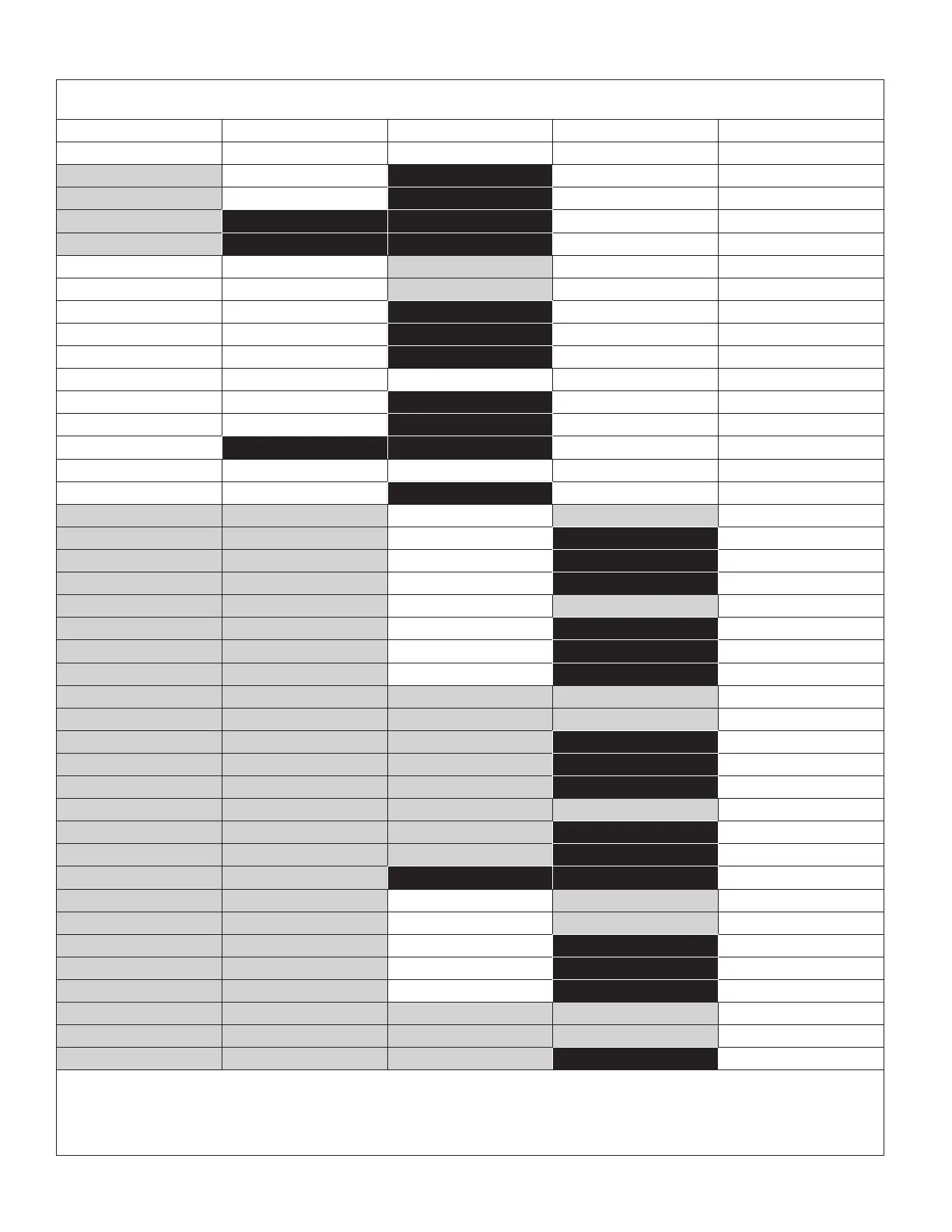

Table 10. MPC048S4M

Number of Zones and Outdoor Unit Connection Sizes

NOTE - Letter = Indoor Unit Zone Connection on Outdoor Unit

Zone 1 (A) Zone 2 (B) Zone 3 (C) Zone 4 (D) Zone 5 (E)

1/4 in. liq + 1/2 in. gas 1/4 in. liq + 1/2 in. gas 1/4 in. liq + 3/8 in. gas 1/4 in. liq + 3/8 in. gas 1/4 in. liq + 3/8 in. gas

009 018 030 - - - - - -

009 018 036 - - - - - -

009 024 024 - - - - - -

009 024 030 - - - - - -

012 012 012 - - - - - -

012 012 018 - - - - - -

012 012 024 - - - - - -

012 012 030 - - - - - -

012 012 036 - - - - - -

012 018 018 - - - - - -

012 018 024 - - - - - -

012 018 030 - - - - - -

012 024 024 - - - - - -

018 018 018 - - - - - -

018 018 024 - - - - - -

006 006 006 018 - - -

006 006 006 024 - - -

006 006 006 030 - - -

006 006 006 036 - - -

006 006 009 018 - - -

006 006 009 024 - - -

006 006 009 030 - - -

006 006 009 036 - - -

006 006 012 012 - - -

006 006 012 018 - - -

006 006 012 024 - - -

006 006 012 030 - - -

006 006 012 036 - - -

006 006 018 018 - - -

006 006 018 024 - - -

006 006 018 030 - - -

006 006 024 024 - - -

006 009 009 012 - - -

006 009 009 018 - - -

006 009 009 024 - - -

006 009 009 030 - - -

006 009 009 036 - - -

006 009 012 012 - - -

006 009 012 018 - - -

006 009 012 024 - - -

LEGEND:

CLEAR = No adapters required.

GRAY = 3/8 x 1/2 in. gas pipe adapter is required for line set connection to outdoor unit (furnished with outdoor unit).

BLACK = 1/4 x 3/8 in. liquid pipe adapter is required for line set connection to the 048 outdoor unit (furnished with outdoor unit).

1/2 x 5/8 in. gas pipe adapter is required for line set connection to the 048 outdoor unit (furnished with outdoor unit).
