85
17. MPC Condensate Pump Diagrams

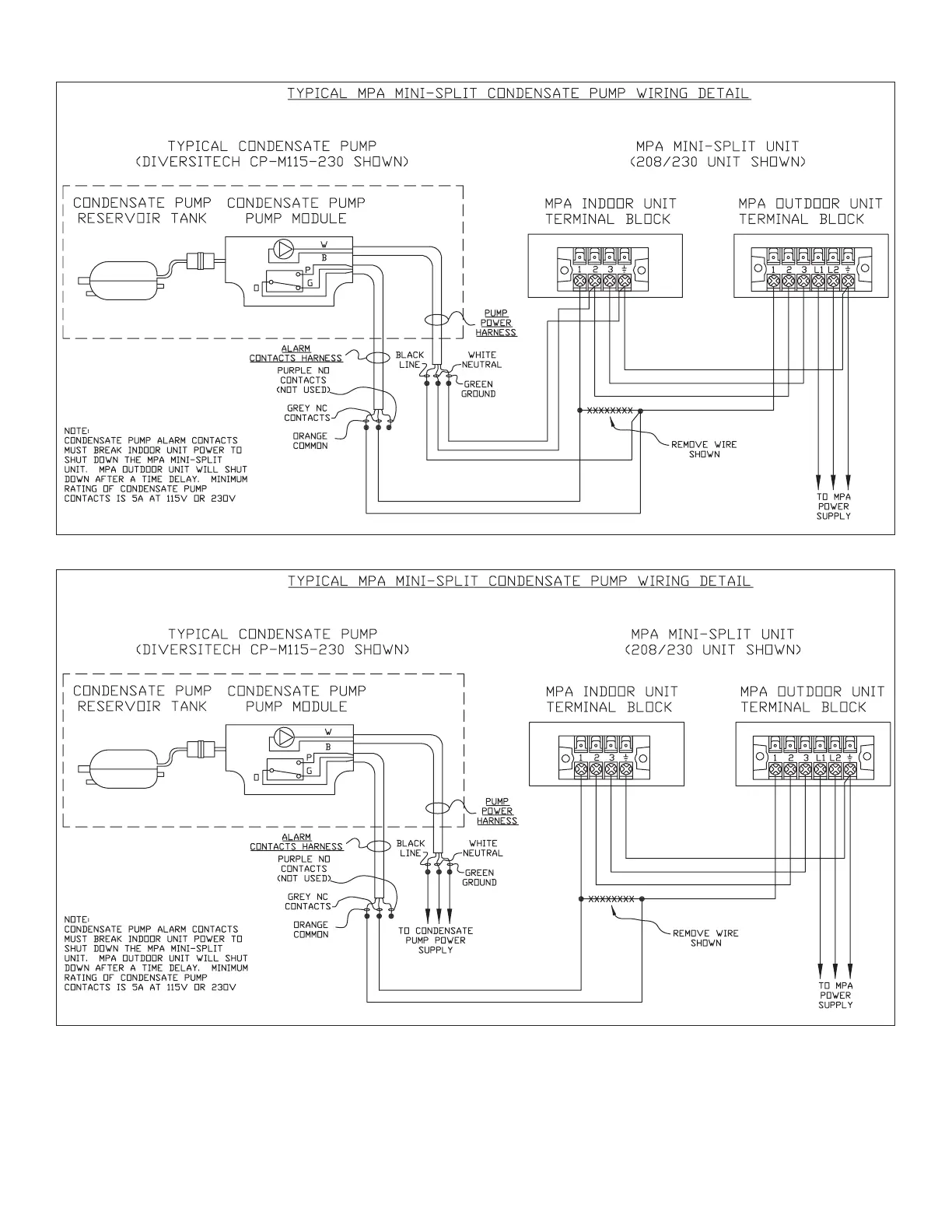

Figure 33. MPC Condensate Pump Powered by MPA Wiring Diagram
Figure 34. MPC Condensate Pump Powered by Separate Source Wiring Diagram
