Lennox MCFA024S4-2P

6

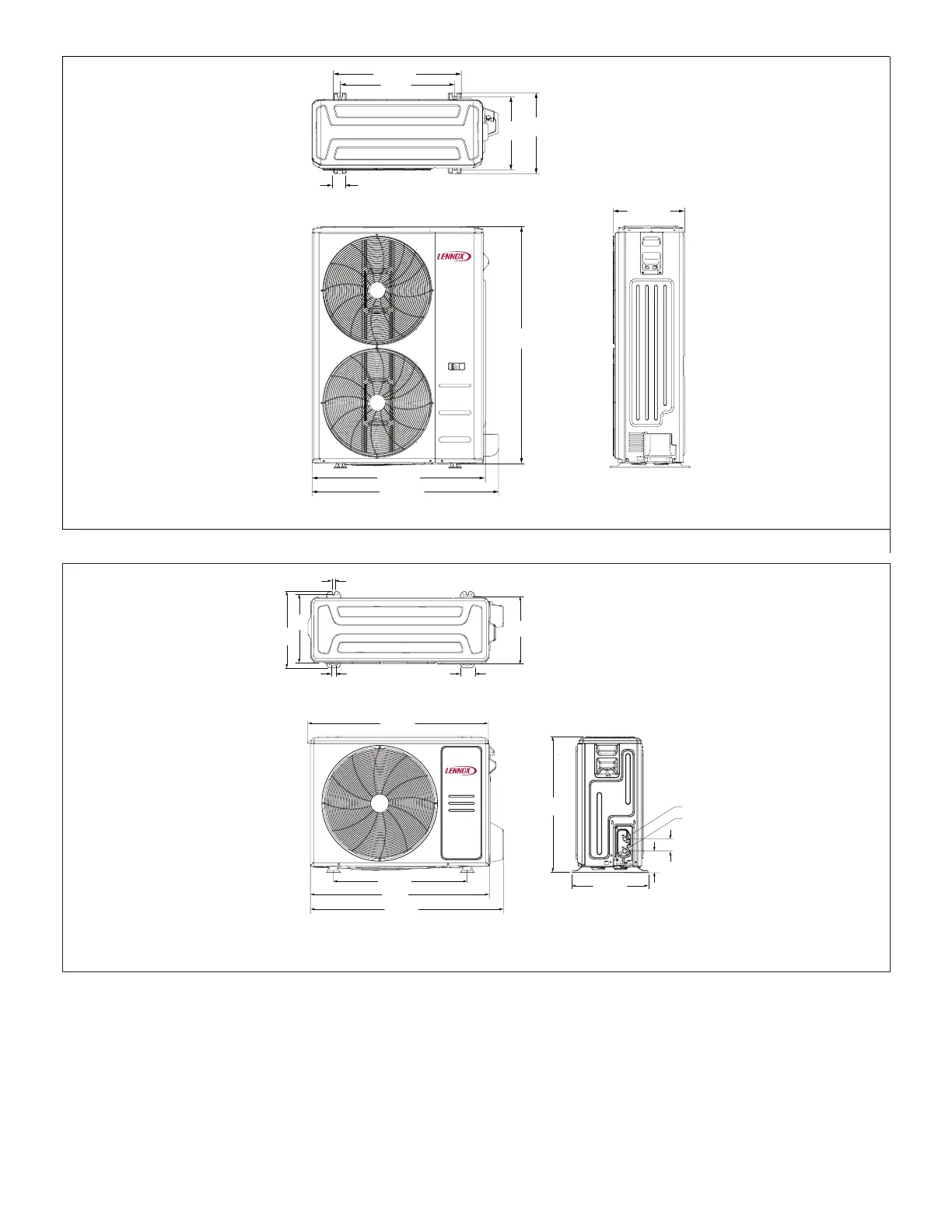

TOP VIEW
41-1/8 (1045)
FRONT VIEW
SIDE VIEW
3
(76)
52-1/2
(1333)
37-1/2 (953)
16-3/8 (416)
15-7/8
(403)
17-5/8
(448)
25 (635)
27-7/8 (708)
Figure 4. 
TOP VIEW
FRONT VIEW
SIDE VIEW
15
(381)
13-3/4
(349)
12-3/4
(324)
35-1/4 (895)
2-3/8 (60)
4-1/4
(108)
13-1/2 (343)
26-1/2
(673)
1/2 (13)
GAS VALVE
LIQUID VALVE
2-7/8 (73)2-7/8 (73)
35 (889)
26-1/8 (664)
37-5/8 955)
Figure 5. 
