ML195UH PARTS IDENTIFICATION

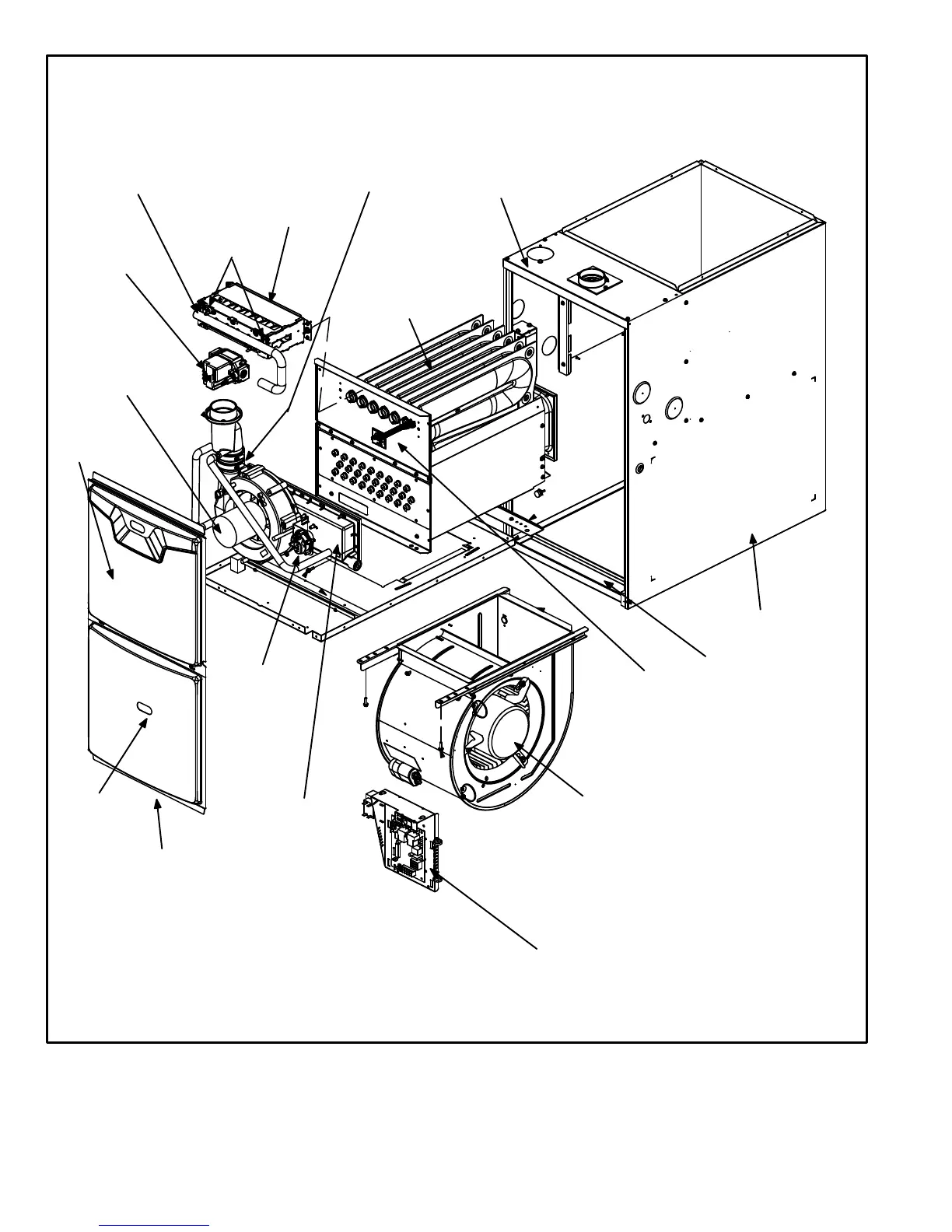

FIGURE 1
TOP CAP
CABINET
BURNER BOX
ASSEMBLY
SIGHT
GLASS
DuralokPlus
TM
HEAT EXCHANGER
ASSEMBLY
CONTROL BOX
(includes integrated control, transformer and interlock switch)
COMBUSTION AIR
INDUCER
BLOWER
ACCESS
DOOR
BURNER
ACCESS
PANEL
COMBUSTION
AIR PRESSURE
SWITCH
PRIMARY LIMIT
GAS VALVE
BLOWER
ASSEMBLY
FLEXIBLE NO-HUB
EXHAUST COLLAR
MANIFOLD
COLD END
HEADER BOX
BAG ASSEMBLIES
(shipping location)
ROLLOUT
SWITCHES
