CAUTION
Do not use copper tubing or existing copper
condensate lines for drain line
6 -
HorizontalFurnace4” Min.to5” Max.above
condensatedrain connection)
FurnaceCondensate
Drain
Connection
From Evaporator Coil
Optional

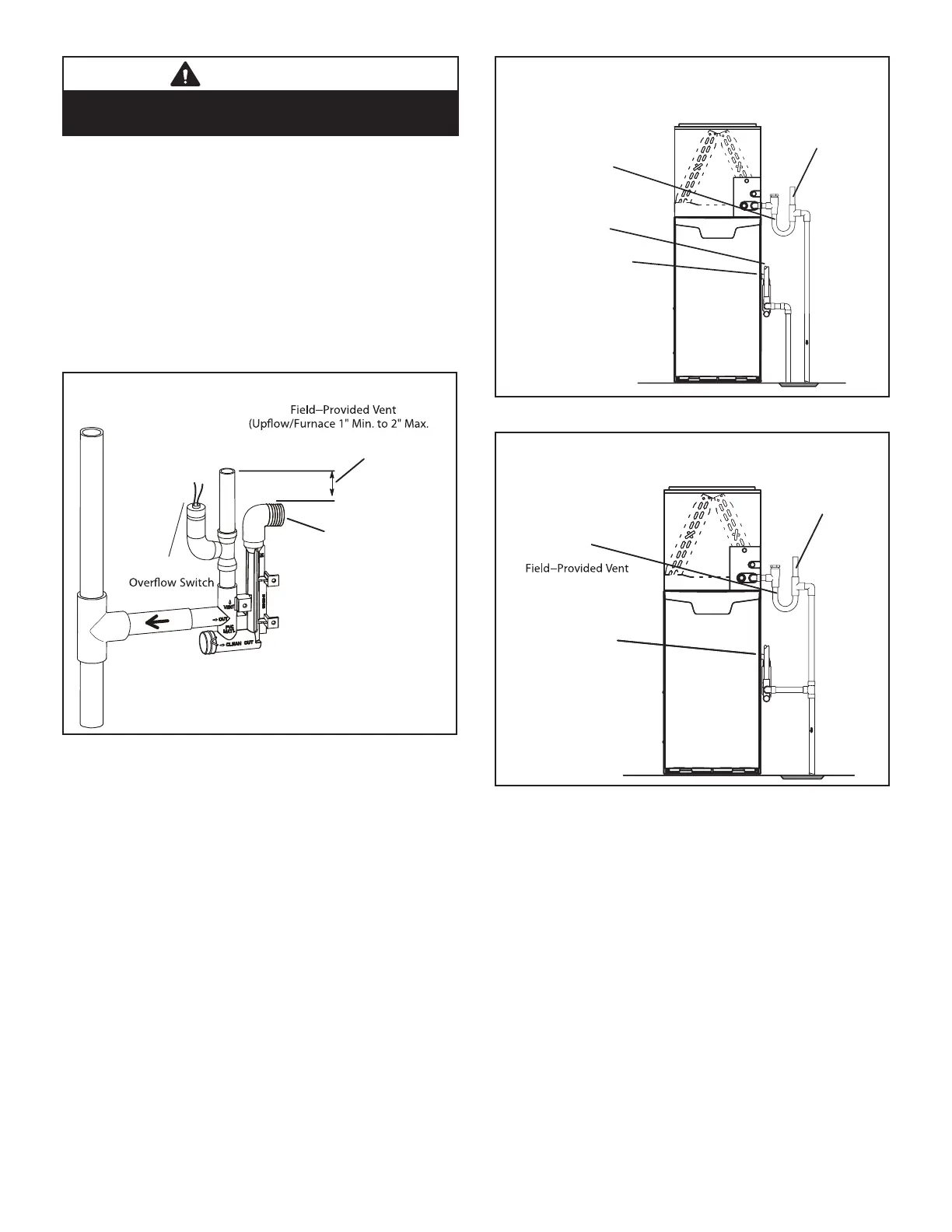

Condensate Trap With Optional Overflow Switch
FIGURE 49
Coil Using A Separate Drain
Condensate
Drain
Connection
Field Provided Vent
(1” min. 2” max. above
condensate connection)
Evaporator drain
line required
(Trap at coil is optional)
FIGURE 50
Coil Using a Common Drain
(1” min.to2” Max.above
drain connection)
Condensate
Drain
Connection
Evaporator drain
line required
(Trap at coil is optional)
FIGURE 51
To Next Page
