Lennox ML296UHV Series Unit Information

Page 39
Condensate Piping
This unit is designed for either right- or left-side exit of
condensate piping in upow applications. In horizontal
applications, the condensate trap must extend below the
unit. An 8” service clearance is required for the conden-
sate trap. Refer to FIGURE 41 and FIGURE 43 for con-
densate trap locations. FIGURE 49 shows trap assembly
using 1/2” PVC or 3/4” PVC.
NOTE - If necessary the condensate trap may be installed
up to 5’ away from the furnace. Use PVC pipe to connect
trap to furnace condensate outlet. Piping from furnace
must slope down a minimum of 1/4” per ft. toward trap.
1 - Determine which side condensate piping will exit
the unit, location of trap, eld-provided ttings and
length of PVC pipe required to reach available drain.
2 - Use a large at head screw driver or a 1/2” drive
socket extension and remove plug (FIGURE 41)
from the cold end header box at the appropriate
location on the side of the unit. Install provided 3/4
NPT street elbow tting into cold end header box.
Use Teon tape or appropriate pipe dope.
NOTE - Cold end header box drain plugs are factory
installed. Check the unused plug for tightness to
prevent leakage.
3 - I nstall the cap over the clean out opening at the
base of the trap. Secure with clamp. See FIGURE
49.
4 - Install drain trap using appropriate PVC ttings,
glue all joints. Glue the provided drain trap as
shown in FIGURE 49. Route the condensate line
to an open drain. Condensate line must maintain a
1/4” downward slope from the furnace to the drain.
5 - FIGURE 44 and FIGURE 45 show the furnace and
evaporator coil using a separate drain. If necessary
the condensate line from the furnace and evaporator
coil can drain together. See FIGURE 46, FIGURE 47
and FIGURE 48. Upow furnace (FIGURE 47) - In
upow furnace applications the eld provided vent
must be a minimum 1” to a maximum 2” length above
the condensate drain outlet connection. Any length
above 2” may result in a ooded heat exchanger
if the combined primary drain line were to become
restricted.
6 - If unit will be started immediately upon completion
of installation, prime trap per procedure outlined in
Unit Start-Up section.
Horizontal furnace (FIGURE 48) - In horizontal fur-
nace applications the eld provided vent must be a
minimum 4” to a maximum 5” length above the con-
densate drain outlet connection. Any length above 5”
may result in a ooded heat exchanger if the combined
primary drain line were to become restricted.

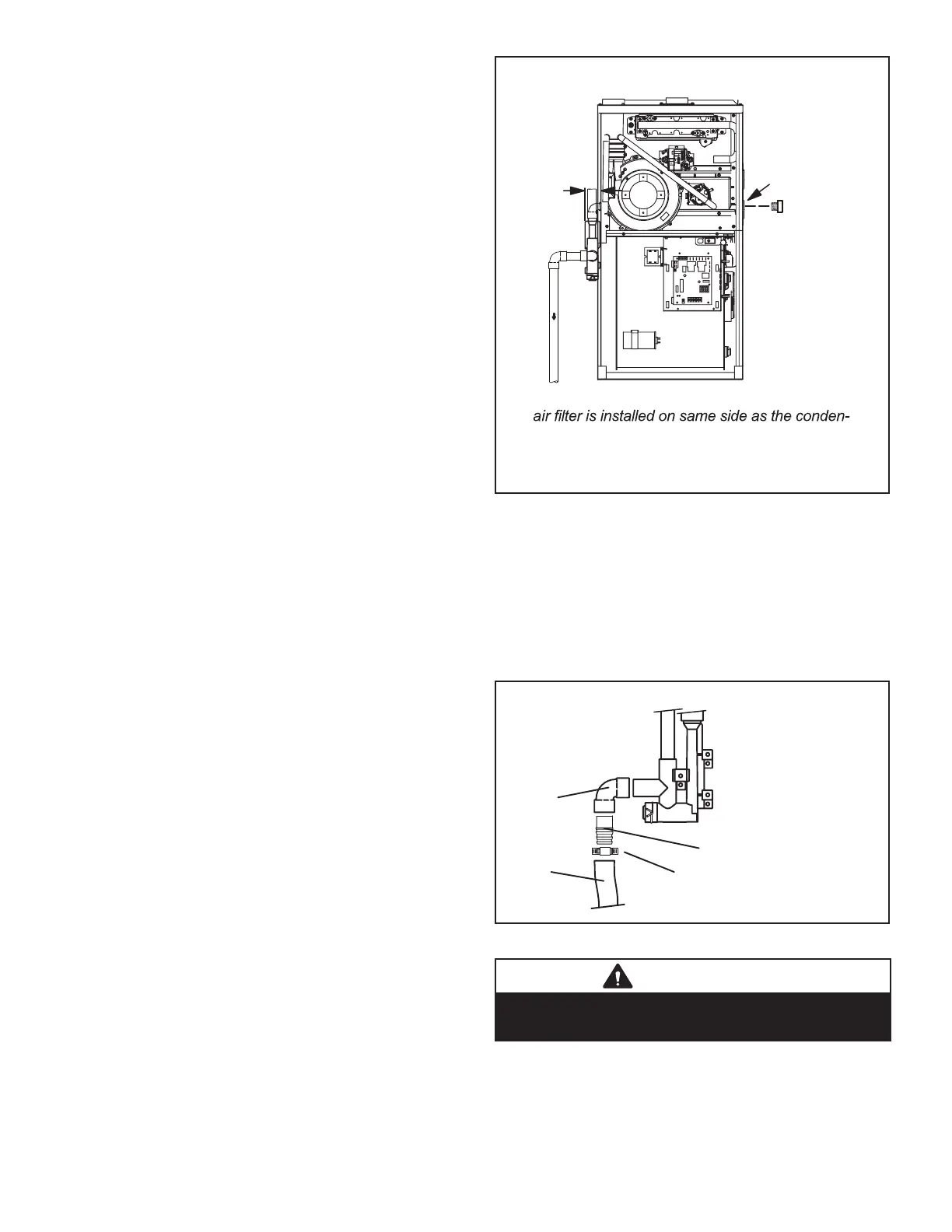

CONDENSATE TRAP AND PLUG LOCATIONS
(Unit shown in upflow position)
NOTE - In upflow applications where side return
sate trap, filter rack must be installed beyond
condensate trap or trap must be re-located to
avoid interference.
Trap
(same on
right side)
Plug
(same on left side)
1-1/2 in.
Rubber
Grommet
FIGURE 41
NOTE - In horizontal applications it is recommended
to install a secondary drain pan underneath the unit
and trap assembly.
NOTE - Appropriately sized tubing and barbed tting
may be used for condensate drain. Attach to the
drain on the trap using a hose clamp. See FIGURE
42.
Field Provided Drain Components
T
ubing
Hose Clamp
Barbed Fitting
Elbow
FIGURE 42
CAUTION
Do not use copper tubing or existing copper condensate
lines for drain line.
