64
13. MPC Condensate Pump Diagrams

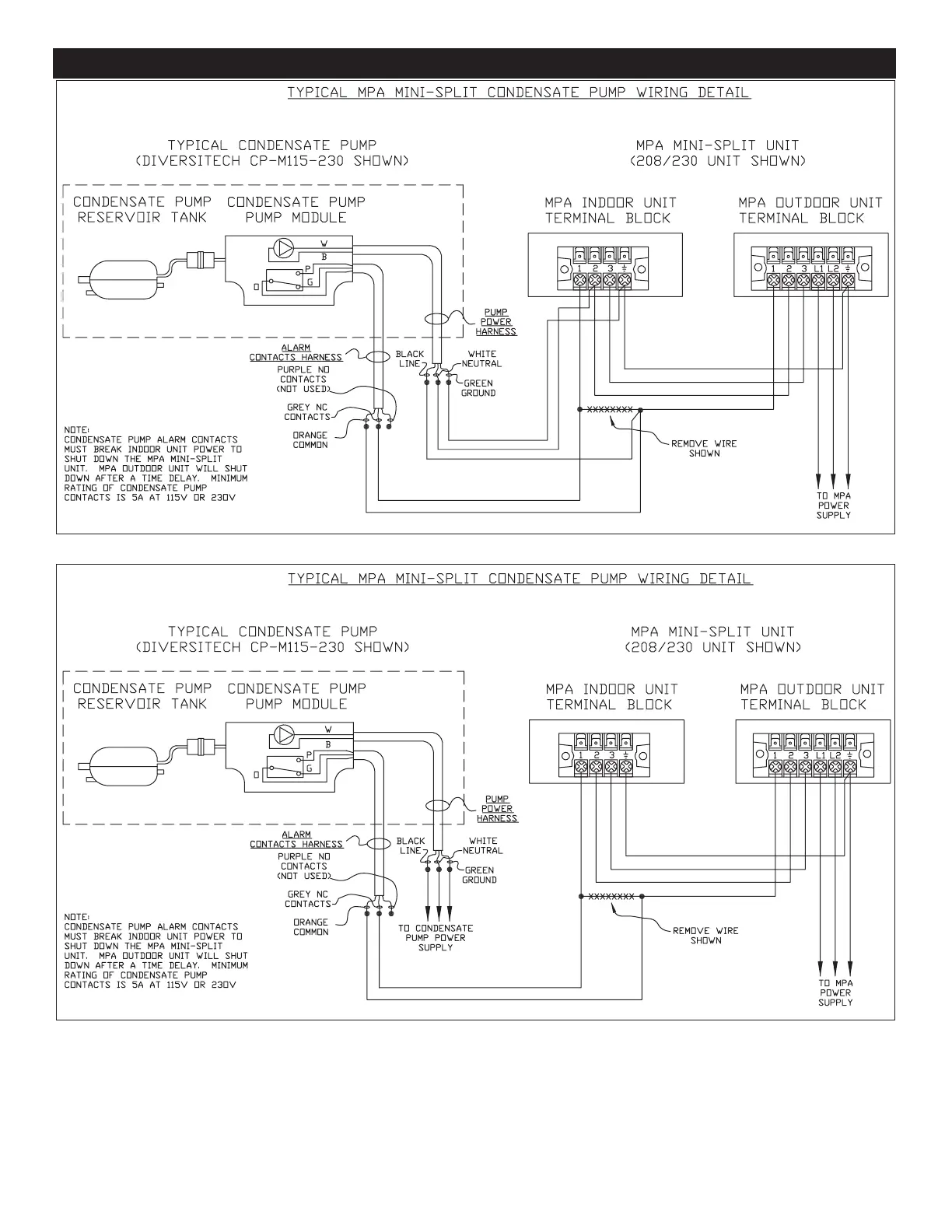

Figure 22. MPC Condensate Pump Powered by MPA Wiring Diagram
Figure 23. MPC Condensate Pump Powered by Separate Source Wiring Diagram
