Lennox MPA036S4M-1P - AC Fan Motor

Lennox Mini-Split Service Manual / Page 246

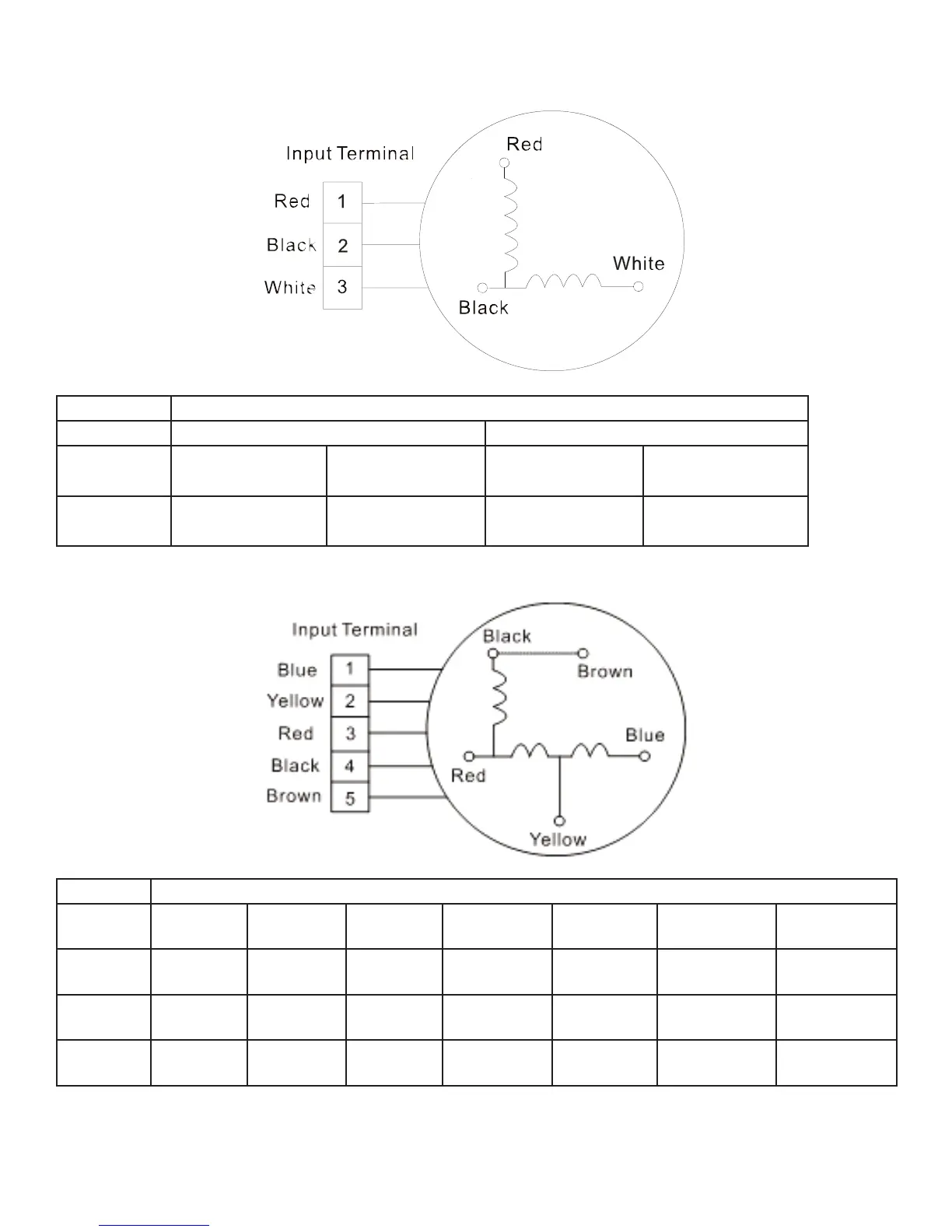

AC Fan Motor
Measure the resistance value of each winding by using the tester.
Position Resistance Value
RPG20B RPG28H
Black - Red
381Ω±8% (20°C)
(Brand: Weiling)
342Ω±8% (20°C)
(Brand: Dayang)
183.6Ω±8% (20°C)
(Brand: Weiling)
180Ω±8% (20°C)
(Brand: Wolong)
White - Black
267Ω±8% (20°C)
(Brand: Weiling)
253Ω±8% (20°C)
(Brand: Dayang)
206Ω±8% (20°C)
(Brand: Weiling)
190Ω±8% (20°C)
(Brand: Wolong)
Measure the resistance value of each winding by using the tester.
Position Resistance Value
YDK70-
6FB
YDK180-
8GB
YSK27-4G YSK68-4B YDK45-6B YSK25-6L
YDK53-
6FB(B)
Black -
Red
56Ω±8%
(20°C)
24.5Ω±8%
(20°C)
317Ω±8%
(20°C)
145Ω±8%
(20°C)
345Ω±8%
(20°C)
627Ω±8%
(20°C)
88.5Ω±8%
(20°C)
Red -
Yellow
76Ω±8%
(20°C)
19Ω±8%
(20°C)
252Ω±8%
(20°C)
88Ω±8%
(20°C)
150Ω±8%
(20°C)
374.3Ω±8%
(20°C)
138Ω±8%
(20°C)
Yellow -
Blue
76Ω±8%
(20°C)
19Ω±8%
(20°C)
252Ω±8%
(20°C)
88Ω±8%
(20°C)
150Ω±8%
(20°C)
374.3Ω±8%
(20°C)
138Ω±8%
(20°C)
