NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
LENNOX HEARTH PRODUCTS • MERIT PLUS
®
DIRECT VENT GAS FIREPLACES (MPD33/35/40/45) • INSTALLATION INSTRUCTIONS

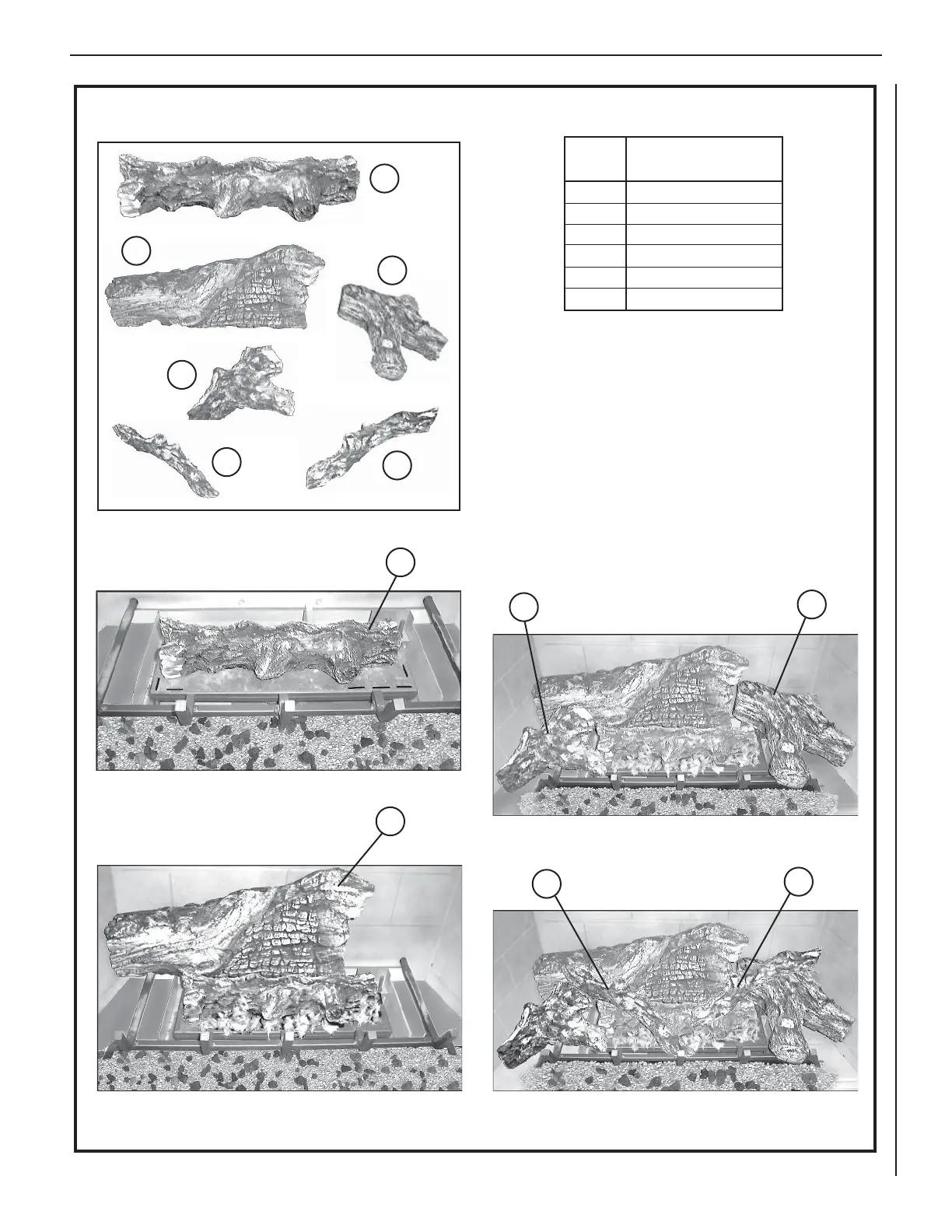

Figure 55
MPD40 AND MPD45 LOG PLACEMENT
Catalog Number for the entire log set: 24M25
1
Log
Number Description (Stamped #)
1 Log, Center (39-8)
2 Log, Rear (138)
3 Log, Right (39-10)
4 Log, Left (39-9)
5 Log, Top/Left (39-11)
6 Log, Top/Right (39-11)
Position the individual logs as shown below. Logs should be placed
in the order shown. Position the center log on the burner fi rst, then
place the glowing embers as shown in Figure 52. Place the rear
log, both the right and left, and then the smaller left and right top
logs. All logs that have notches to fi t over the grate tines should
be positioned with these notches directly against the grate. All top
logs that rest on lower logs, do so over fl attened mounting faces
in the bottom logs.
Proper log and twig placement is critical to encourage outstanding
ame appearance and prevent sooting.
2
3
4
5
6
1
2
3
4
6
5
