Model No. VPC018H4M-3P VPC024H4M-3P VPC036H4M-3PS
Line voltage data - 60 Hz - 1 phase 208/230V 208/230V 208/230V
1
Maximum Overcurrent Protection (MOCP) amps 25 25 25
2
Minimum circuit ampacity (MCA) 15 15 20
Compressor No. of compressors 1 1 1
Rated load amps 10.6 10.6 14.6
Outdoor Fan
Motor
Motor type DC DC DC
No. of motors 1 1 1
Full load amps 1.2 1.3 1.7
Output - W 190 190 190
NOTE - Extremes of operating range are plus and minus 10% of line voltage.
1
HACR type circuit breaker or fuse.
2
Refer to National or Canadian Electrical Code manual to determine wire, fuse and disconnect size requirements.
Model No. VPC036H4M-3PD VPC048H4-3P VPC060H4-3P
Line voltage data - 60 Hz - 1 phase 208/230V 208/230V 208/230V
1
Maximum Overcurrent Protection (MOCP) amps 30 40 40
2
Minimum circuit ampacity (MCA) 25 28 35
Compressor No. of compressors 1 1 1
Rated load amps 18.4 20.8 26.4
Outdoor Fan
Motor
Motor type DC DC DC
No. of motors 2 2 2
Full load amps (2) 0.90 + 0.88 (2) 0.90 + 0.88 (2) 0.90 + 0.88
Output - W (2) 90 + 90 (2) 90 + 90 (2) 90 + 90
NOTE - Extremes of operating range are plus and minus 10% of line voltage.
1
HACR type circuit breaker or fuse.
2
Refer to National or Canadian Electrical Code manual to determine wire, fuse and disconnect size requirements.
Table 14. Electrical Parameters
Magnet Ring
The magnet ring is used to strengthen the
communication cable signal in applications where
there is interference.
Wrap the PQ communication wire around the magnet
ring as shown in Figure 33.

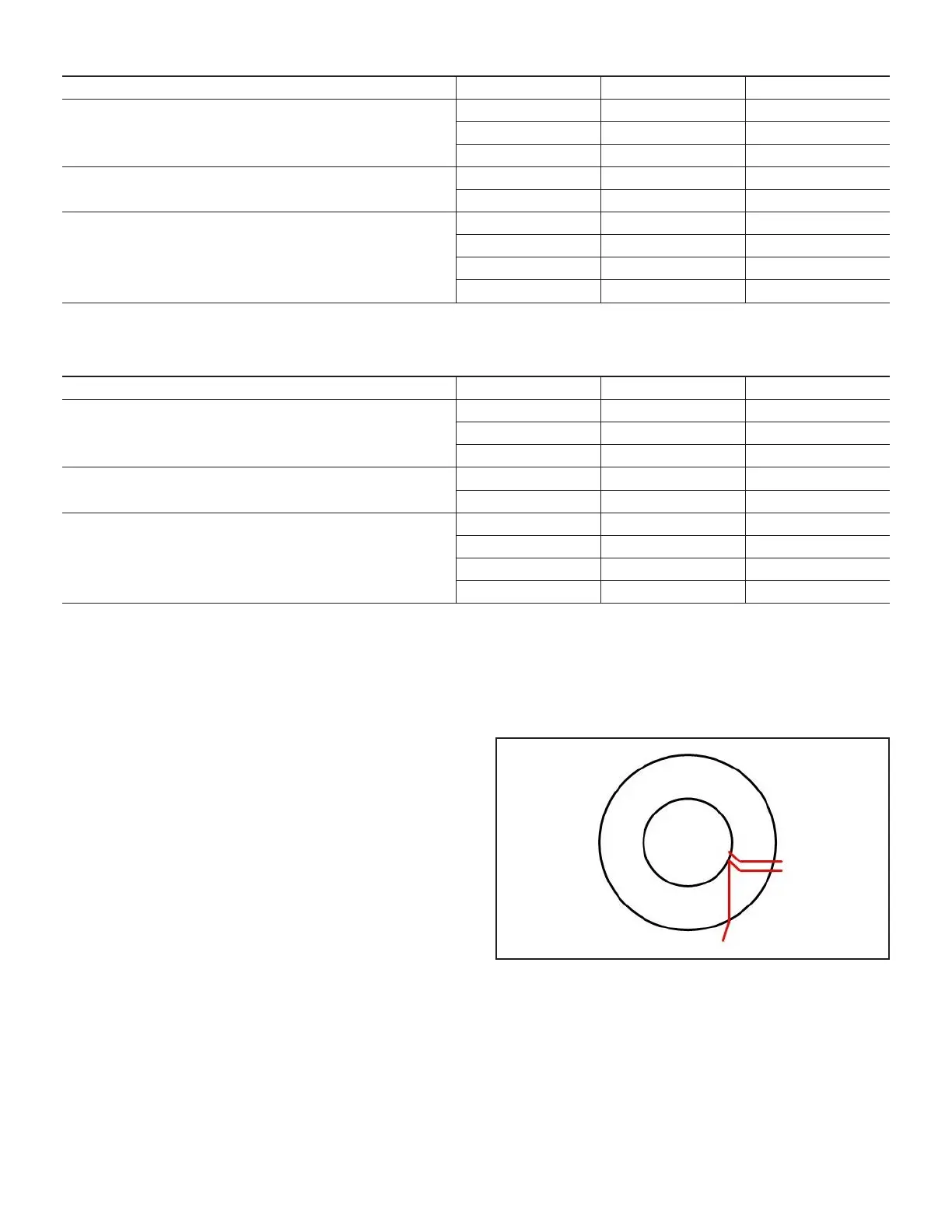

Figure 33. Magnet Ring
