IOM / ROOF-TOP FLEXY™ Series - Page 11
2

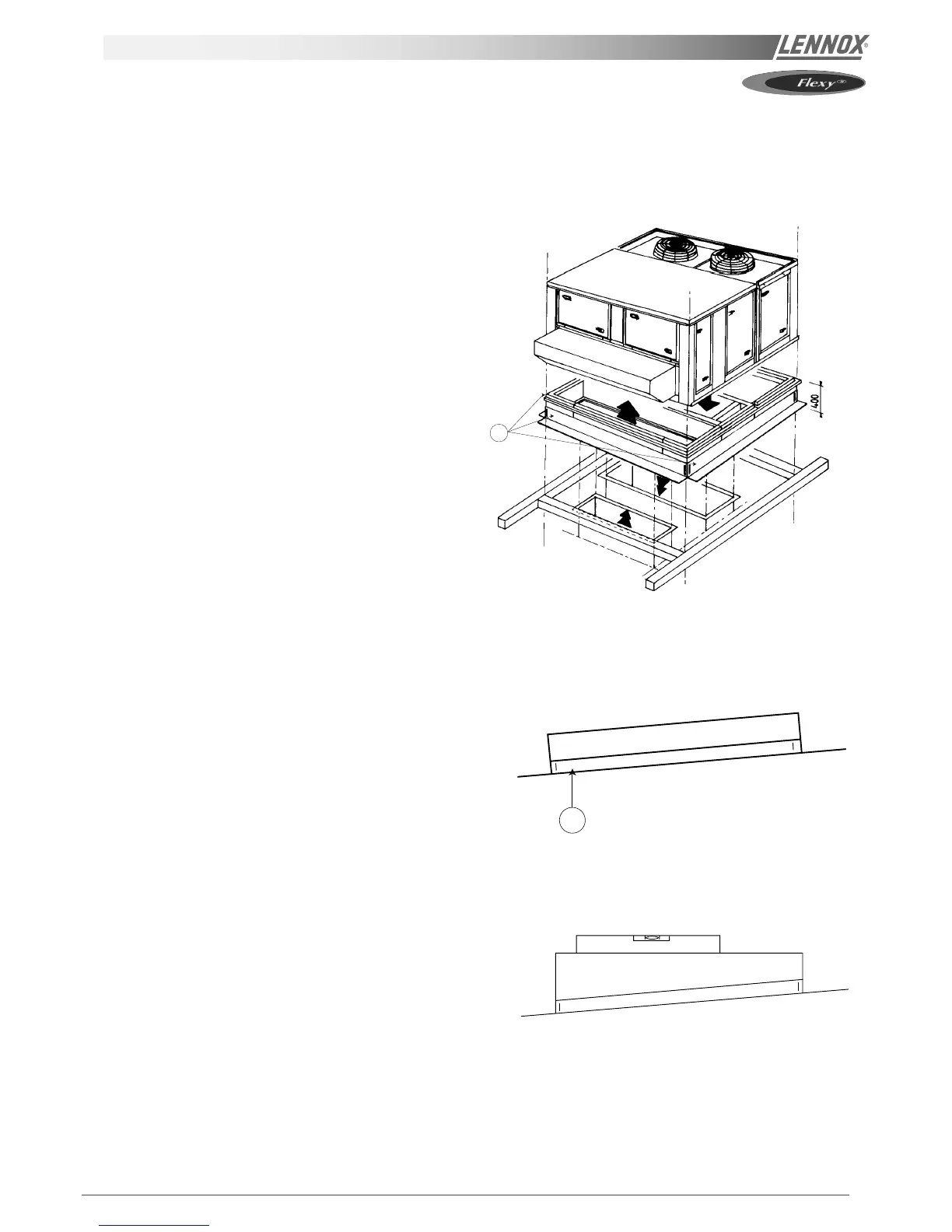

INSTALLATION ON A ROOFMOUNTING FRAME
As levels are adjustable, observe the following
recommendations for correct installation of the equipment.
Above all, ensure that all the flaps are facing outward
(1 - figure 5).
They are sometimes stored inside for transport.
Place the roof mounting frame on the trimmer beam by
first lining up the inlet and then the outlet. (2 - figure 6).
After levelling the frame, fix the surface flaps onto the
trimmer.
1
Figure 5
Figure 6
Figure 7
