USING THE KP02 MAINTENANCE CONTROL DISPLAY

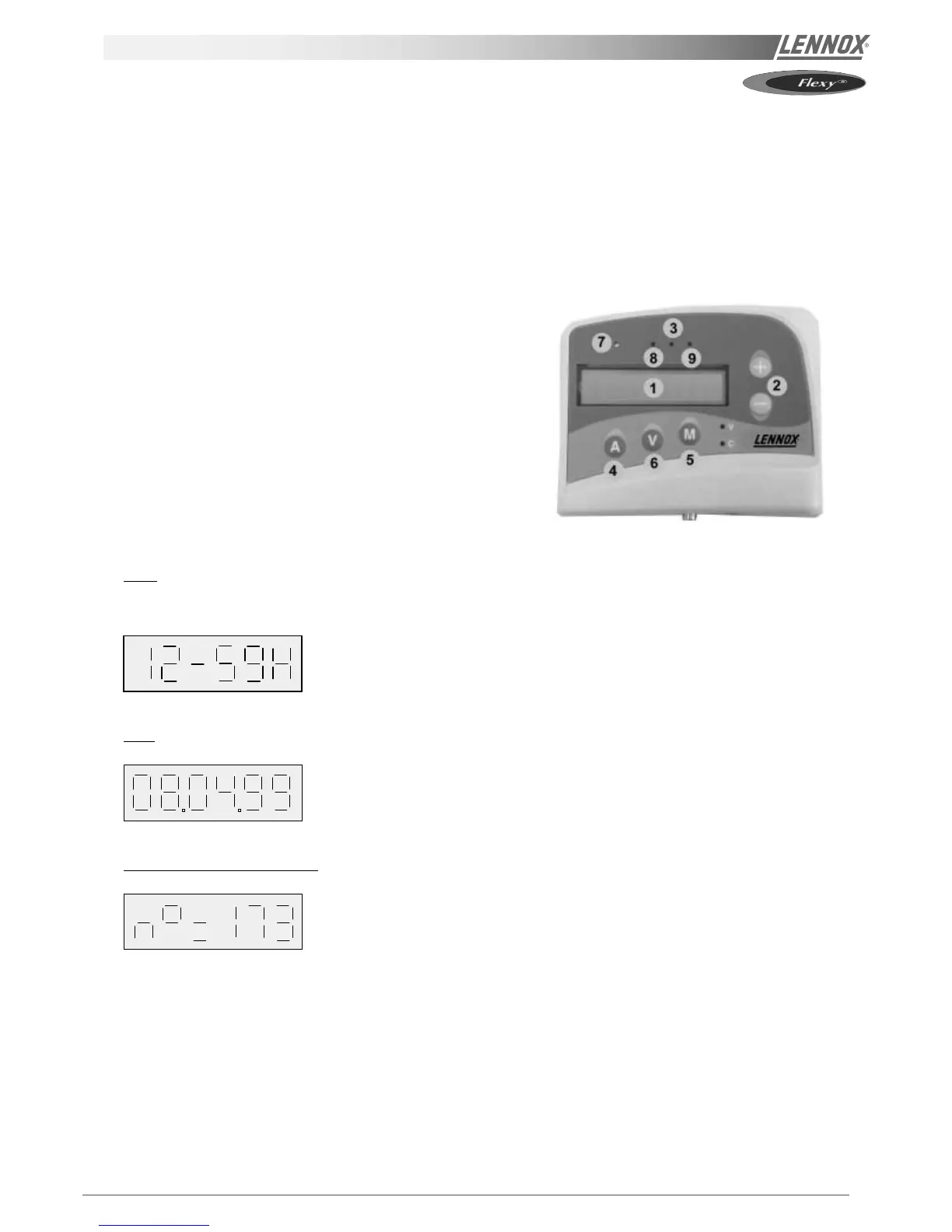

CALLOUT :
1 LIQUID CRYSTAL DISPLAY
2 RAISE/LOWER KEYS
3 "FILTER" LED (flashing red)
4 "ADDRESS" KEY
5 "MODE" KEY
6 "VALUE" KEY
7 "UNIT RUNNING" LED
8 "MODE" LED
9 "GENERAL ALARM" LED.
1 - DISPLAY FORMATS
Hour
Default display. If the display unit has been inactive for 5 minutes, this screen will automatically be displayed.
<--> 12 hours and 59 minutes
Date
<--> 8 April 1999
Variable or setpoint address
Figure 40
This display unit allows you to read and modify all the values
of the variables or setpoints of the rooftop to which it is
connected.
NOTE : If your ROOFTOP already has a KP17 Comfort display
connected (see previous section) simply disconnect it and
connect this panel to the same location, once completed re-
connect the KP17. It is not necessary to switch off the power
to the CLIMATIC™ whilst the KP02/KP17 is being changed.
The dialogue with the controller is initiated by the CLIMATIC™.
If, after 3 attempts, no communication is established, a
message will be displayed signalling the problem. The unit
will then try to re-connect at regular intervals.
