IOM / ROOF-TOP FLEXY™ Series - Page 5
TRANSPORT - HANDLING
Model
Length Side Ventil. Width Height Weight
louver louver
mm mm mm mm mm kg
FX* 25 4070 490 600 1633 1055 950
FX* 30 4070 490 600 1633 1055 980
FX* 35 4750 490 600 2254 1290 1400
FX* 40 4750 490 600 2254 1290 1450
FX* 55 4750 490 600 2254 1290 1600
FX* 70 5050 890 600 2254 1725 1800
FX* 85 5050 890 600 2254 1725 1900
FX* 100 5050 890 600 2254 1725 2000
FX* 110 5650 860 2254 2000 2300
FX* 140 5650 860 2254 2000 2400
FX* 170 5650 860 2254 2000 2600

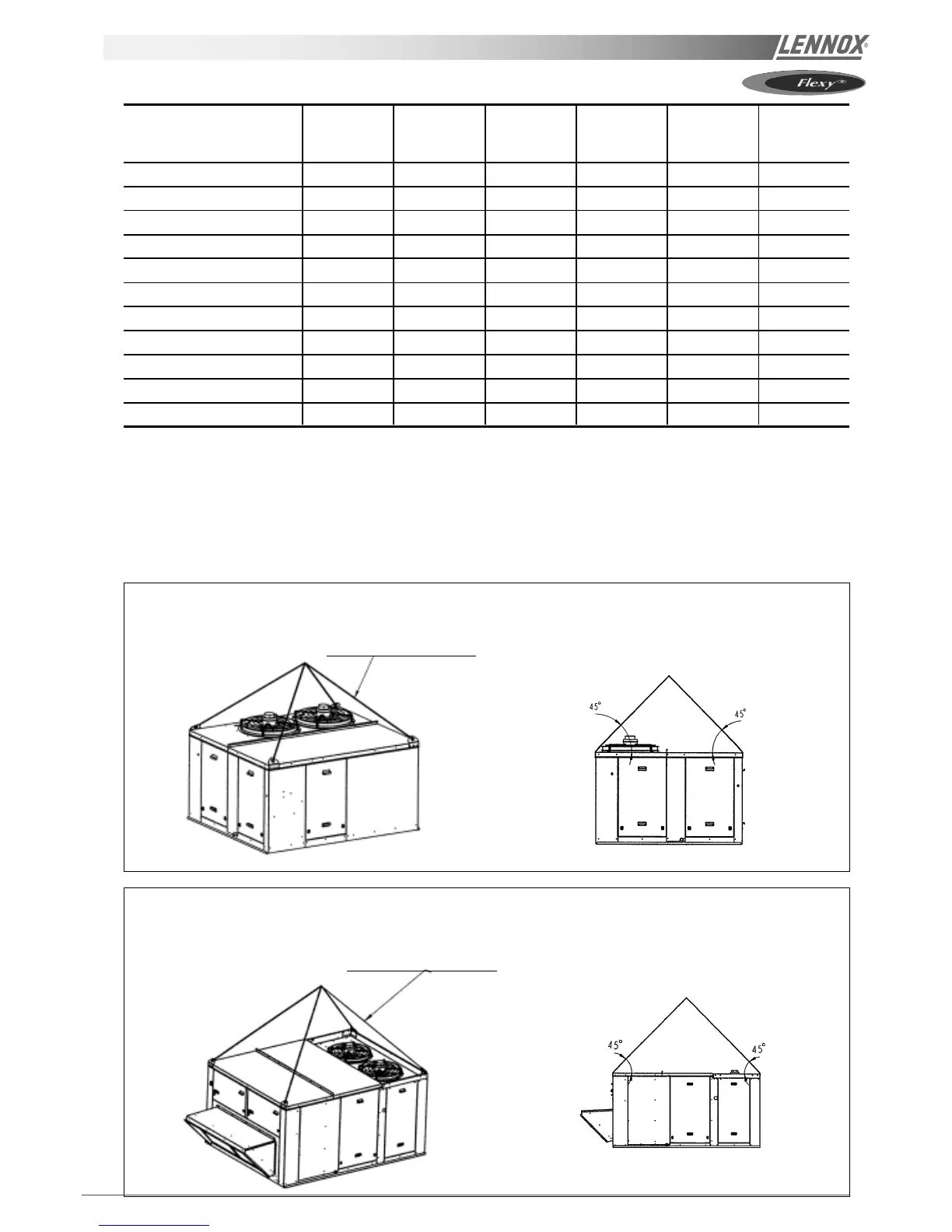

HANDLING
The equipment can be moved using the lifting holes on the
top of the unit.
The "sling" length is the value that we recommend for safe
handling of the equipment.
Some units can only be supported by four slings at right-
angles. Others require different lengths (see figure 3).
It is essential that all lifting holes are used and that the slings
are all of the same size to avoid damaging the equipment.
Sling length = 1580 mm
for angle = 45°C
FC.../FH.../FD.../FG... 050
Sling length = 2210 mm
for angle = 45°C
FC.../FH.../FD.../FG... 060 & 070
