Page 12 - IOM / Rooftop Smart and Linéa™ Range
DIMENSIONSDIMENSIONS
DIMENSIONSDIMENSIONS
DIMENSIONS
LG_/LC_/LH_/LD_ 055/065/075/090 DIMENSIONS (mm)
Note : 090 units not available in heatpump and dual fuel configurations (LH_/LD_)
models 055, 065 & 075 : 2 compressors - model 090 : 4 compressors
314
1537x381
114
102
EE
314
711x508
711x508
DD
AA
BB
CC
102
FF
203x127
946
108
X

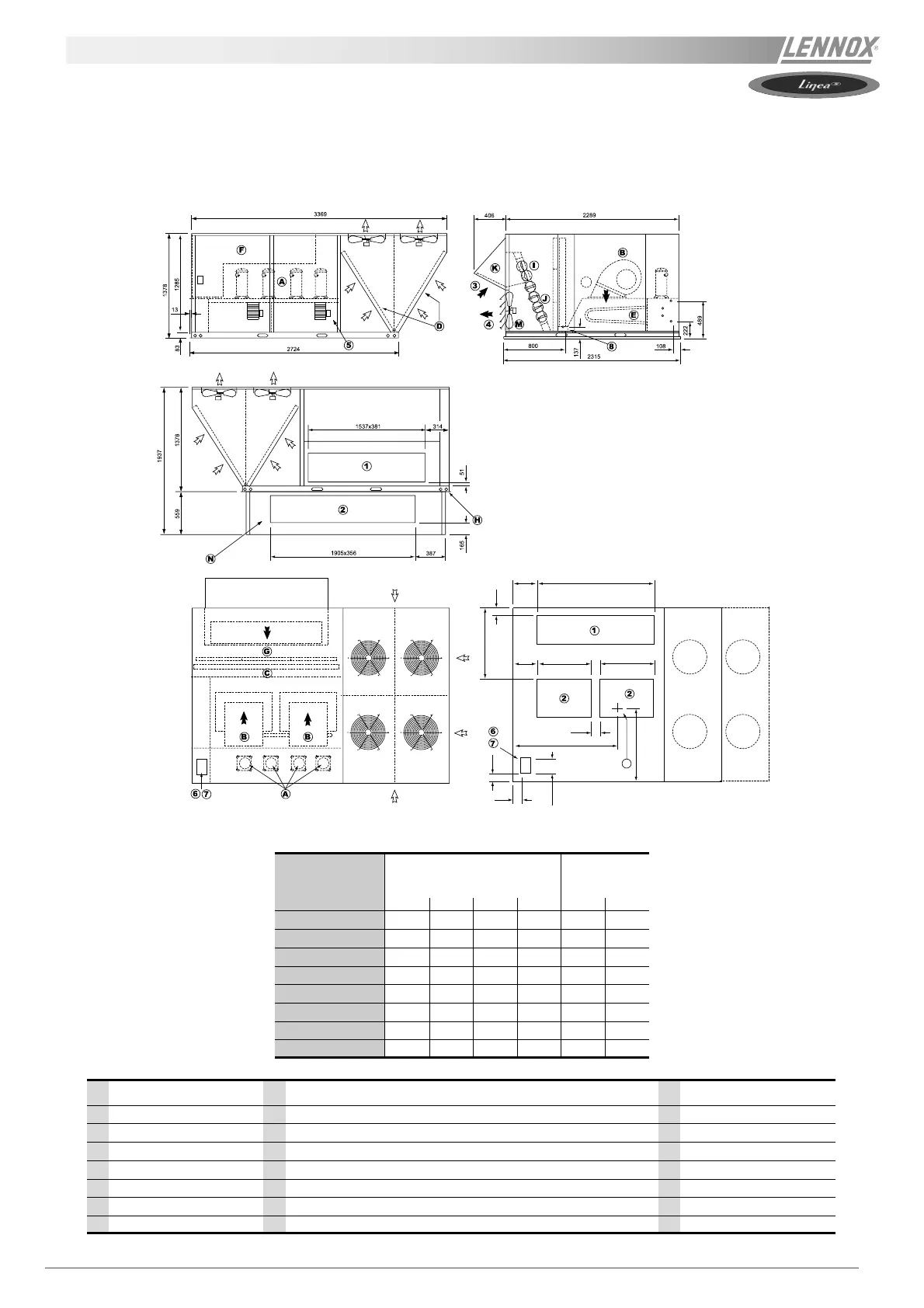

Figure 11
A Compressor I Outdoor air damper (Manual or automatic,factory or field installed) 1 Return air
B Fan J Economiser (Factory or field installed) 2 Supply air
C Evaporator coil K Outdoor air hood (Factory or field installed) (1) 3 Fresh air
D Condenser coil L Gravity exhaust damper (Factory or field installed) 4 Exhaust air
E Heat exchanger M Power exhaust fan (Factory or field installed) (2) 5 Flue outlet
F Control box N Horizontal roof mounting frame (3) 6 Power entry
G Filter 7 Gas entry
H Lifting holes X Centre of gravity 8 Condensate drain
(1) Furnished with economiser or outdor air damper (2) Down-flow applications only
(3) Required for horizontal applications with optional return air panel kit
Base unit : The standard unit with NO OPTIONS
Load distribution Centre of
SIZE (kg) gravity (mm)
AA BB CC DD EE FF
LCA/LCK 055 204 209 281 272 1384 991
LCA/LCK 065 213 209 290 295 1346 965
LCA 075 218 231 318 299 1410 965
LCA/LCK 090 218 231 318 299 1410 965
LGA/LGK 055 213 213 295 295 1359 965
LGA/LGK 065 218 209 308 322 1384 953
LGA 075 222 236 336 322 1384 954
LGA/LGK 090 222 236 336 322 1384 953
