Lennox SSB060H4S4

Page 2
507163-01 05/13

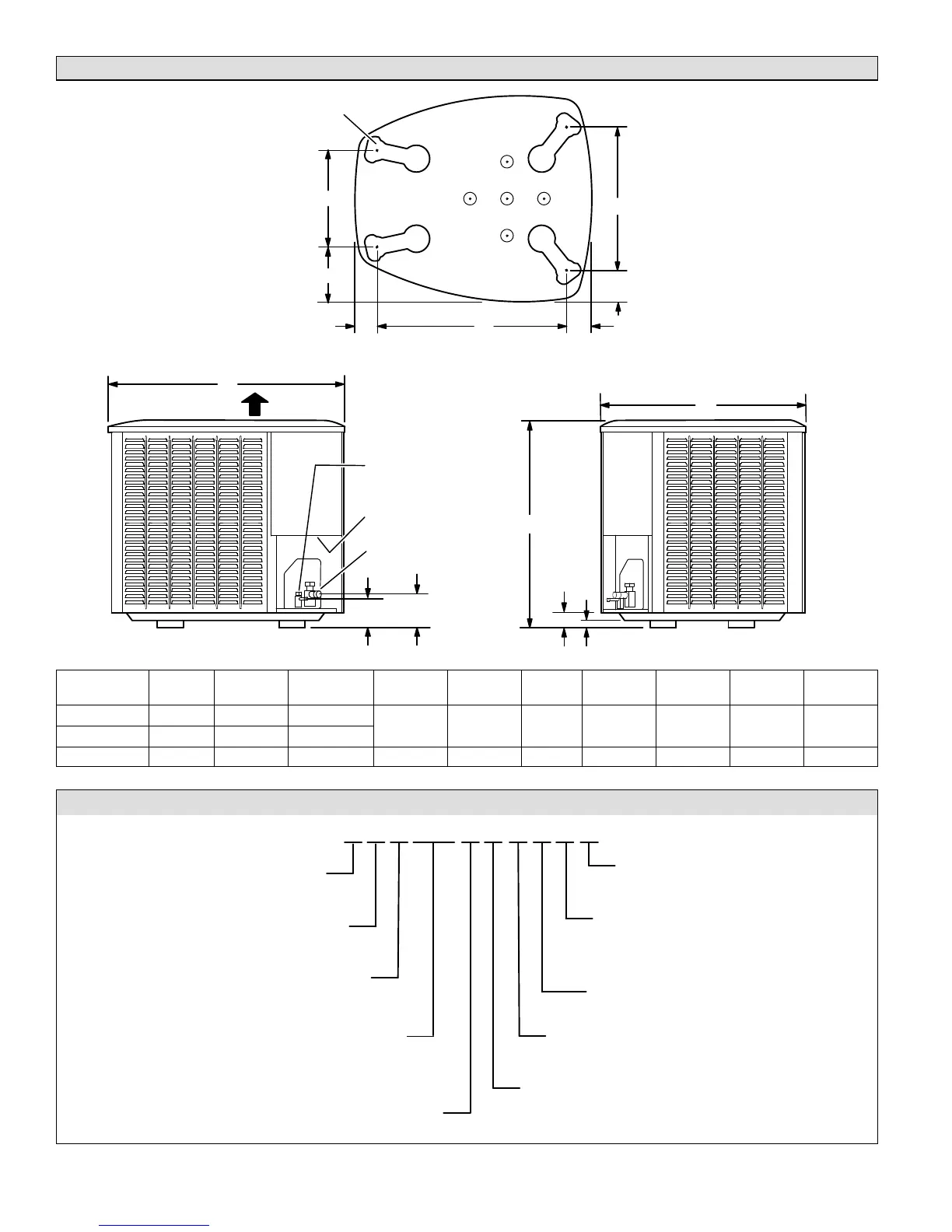

Unit Dimensions - Inches (mm)
ELECTRICAL
INLETS
SIDE VIEW
DISCHARGE AIR
SUCTION LINE
CONNECTION
LIQUID LINE
CONNECTION
4-1/4(1
08)
4-3/4
(121)
1 (25)
2 (51)
SIDE VIEW
C
B
A
D
G
K
J
E
F
UNIT SUPPORT
FEET
BASE WITH ELONGATED LEGS
H
Model
Number
A B C D E F G H J K
SSB036H4S4
31 (787) 30-1/2 (775) 35 (889)
13-7/8 (352) 7-3/4 (197) 3-1/4 (83) 27-1/8 (689) 3-5/8 (92) 4-1/2 (114) 20-5/8 (524)
SSB048H4S4
39 (991) 30-1/2 (775) 35 (889)
SSB060H4S4
45 (1143) 35-1/2 (902) 39-3/8 (1001) 16-7/8 (429) 8-3/4 (222) 3-1/8 (79) 30-3/4 (781) 4-5/8 (117) 3-3/4 (95) 26-7/8 (683)
Model Number Identification
SSB Y1036 H 44 S
Major Design Sequence
A = 1st Generation
B = 2nd Generation
Brand/Family
S = S-Class Product Line
Unit Type
S = Air Conditioner Outdoor Unit
Nominal Cooling Capacity -
Tons
036 = 3 Tons
048 = 4 Tons
060 = 5 Tons
Cooling Efficiency
H = High Efficiency
Minor Design Sequence
1 = 1st Revision
2 = 2nd Revision
3 = 3rd Revision
Voltage
Y = 208/230V‐3 phase‐60hz
G = 460V‐3 phase‐60hz
Refrigerant Type
4 = HFC-410A
Part Load Capability
S = Part load capabilities with multi-stage operation.
Coil type
4 = Four-sided
