Lennox XC14 User Manual

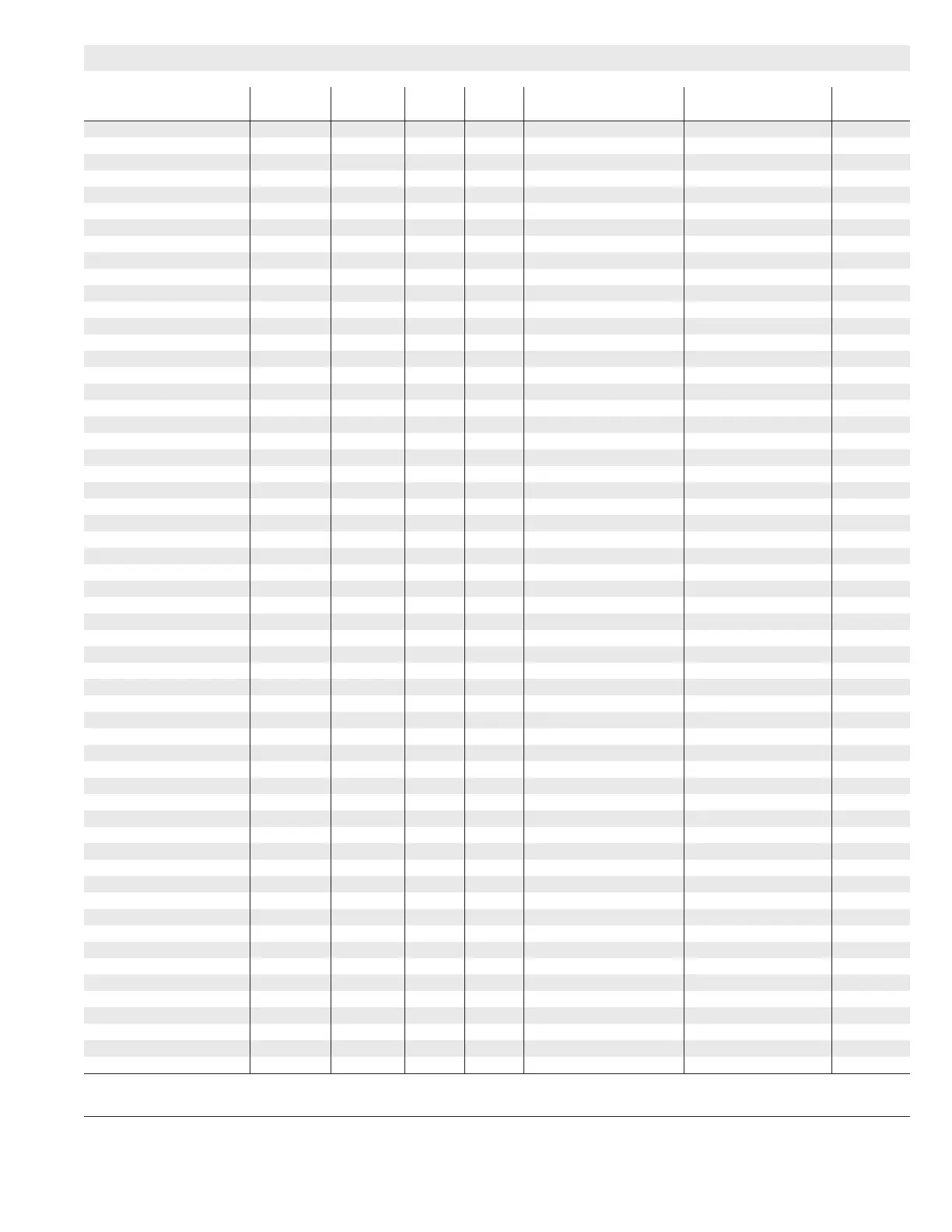

XC14 - 1.5 to 5 Ton Air Conditioner / Page 15
AHRI SYSTEM MATCHES
NOTE - For the latest up-to-date system matches please visit the AHRI web site at http://www.ahridirectory.org
Model
No.
Expansion
Device
Capacity SEER EER
Coil or
Air Handler
Furnace
AHRI
Reference
XC14-024-230 TXV 23,400 15.20 12.70 CX34-30 SL280UH090V36B 3929097
XC14-024-230 TXV 23,600 15.50 13.00 CX34-30 SLP98UH070V36B 4020359
XC14-024-230 TXV 23,600 15.50 13.00 CX34-30 SLP98UH090V36C 4020360
XC14-024-230 TXV 23,000 13.50 11.50 CX34-30 3131885
XC14-024-230 TXV 24,600 16.00 13.20 CX34-31 G61MPV-36B-045 3131897
XC14-024-230 TXV 24,600 16.00 13.20 CX34-31 G61MPV-36B-070 3131898
XC14-024-230 TXV 24,600 16.00 13.20 CX34-31 G61MPV-36B-071 3131899
XC14-024-230 TXV 24,600 16.20 13.50 CX34-31 SL280UH070V36A 3929098
XC14-024-230 TXV 24,600 16.20 13.50 CX34-31 SL280UH070XV36A 4037834
XC14-024-230 TXV 24,800 16.20 13.50 CX34-31 SL280UH090V36B 3929099
XC14-024-230 TXV 24,600 16.00 13.50 CX34-31 SL280UH090V48B 4249214
XC14-024-230 TXV 24,600 16.50 13.70 CX34-31 SLP98UH070V36B 4020361
XC14-024-230 TXV 24,000 14.00 12.00 CX34-31 3131894
XC14-024-230 TXV 24,200 15.70 13.00 CX34-36 G61MPV-36B-045 3131904
XC14-024-230 TXV 24,200 15.70 13.20 CX34-36 G61MPV-36B-070 3131905
XC14-024-230 TXV 24,200 15.70 13.20 CX34-36 G61MPV-36B-071 3131906
XC14-024-230 TXV 24,000 15.50 13.00 CX34-36 G61MPV-36C-090 3131907
XC14-024-230 TXV 24,200 15.70 13.20 CX34-36 SL280UH070V36A 3929100
XC14-024-230 TXV 24,200 15.70 13.20 CX34-36 SL280UH070XV36A 4037835
XC14-024-230 TXV 24,400 16.00 13.20 CX34-36 SL280UH090V36B 3929101
XC14-024-230 TXV 24,200 16.00 13.50 CX34-36 SLP98UH070V36B 4020362
XC14-024-230 TXV 24,200 16.20 13.50 CX34-36 SLP98UH090V36C 4020363
XC14-024-230 TXV 23,600 13.70 11.70 CX34-36 3131901
XC14-024-230 TXV 24,600 15.70 13.20 CX34-38 G61MPV-36B-045 3131913
XC14-024-230 TXV 24,400 16.00 13.20 CX34-38 G61MPV-36B-070 3131914
XC14-024-230 TXV 24,400 16.00 13.20 CX34-38 G61MPV-36B-071 3131915
XC14-024-230 TXV 24,800 16.20 13.70 CX34-38 SL280UH070V36A 3929102
XC14-024-230 TXV 24,800 16.20 13.70 CX34-38 SL280UH070XV36A 4037836
XC14-024-230 TXV 24,600 16.20 13.70 CX34-38 SL280UH090V36B 3929103
XC14-024-230 TXV 24,800 16.20 13.50 CX34-38 SL280UH090V48B 4249215
XC14-024-230 TXV 24,800 16.50 13.70 CX34-38 SLP98UH070V36B 4020364
XC14-024-230 TXV 24,200 14.20 12.00 CX34-38 3131910
XC14-030-230 RFC 27,600 14.00 12.00 C33-25 G61MPV-36B-045 3130517
XC14-030-230 RFC 27,800 14.70 12.50 C33-25 G61MPV-36B-070 3130518
XC14-030-230 RFC 27,800 14.70 12.50 C33-25 G61MPV-36B-071 3130563
XC14-030-230 RFC 27,400 13.50 11.70 C33-25 3130499
XC14-030-230 RFC 27,200 13.50 11.70 C33-30 G61MPV-36B-045 3130521
XC14-030-230 RFC 27,400 14.00 12.20 C33-30 G61MPV-36B-070 3130522
XC14-030-230 RFC 27,400 14.00 12.20 C33-30 G61MPV-36B-071 3130564
XC14-030-230 RFC 27,000 13.00 11.50 C33-30 3130500
XC14-030-230 RFC 28,400 14.50 12.50 C33-31 G61MPV-36B-045 3130525
XC14-030-230 RFC 28,600 15.00 13.00 C33-31 G61MPV-36B-070 3130526
XC14-030-230 RFC 28,600 15.00 13.00 C33-31 G61MPV-36B-071 3130565
XC14-030-230 RFC 28,000 13.70 11.70 C33-31 3130498
XC14-030-230 RFC 27,600 14.20 12.20 C33-36 G61MPV-36B-045 3130529
XC14-030-230 RFC 27,800 14.70 12.50 C33-36 G61MPV-36B-070 3130530
XC14-030-230 RFC 27,800 14.70 12.50 C33-36 G61MPV-36B-071 3130566
XC14-030-230 RFC 27,400 13.50 11.50 C33-36 3130502
XC14-030-230 RFC 28,200 14.20 12.50 C33-38 G61MPV-36B-045 3130533
XC14-030-230 RFC 28,400 14.70 12.70 C33-38 G61MPV-36B-070 3130534
XC14-030-230 RFC 28,400 14.70 12.70 C33-38 G61MPV-36B-071 3130567
XC14-030-230 RFC 28,200 14.00 12.00 C33-38 3130501
XC14-030-230 RFC 27,600 14.20 12.20 C33-42 G61MPV-36B-045 3130536
XC14-030-230 RFC 27,800 14.70 12.50 C33-42 G61MPV-36B-070 3130537
XC14-030-230 RFC 27,800 14.70 12.50 C33-42 G61MPV-36B-071 3130568
XC14-030-230 RFC 27,400 13.50 11.50 C33-42 3130503
XC14-030-230 RFC 28,600 14.70 12.70 C33-43 G61MPV-36B-045 3130539
XC14-030-230 RFC 28,800 15.20 13.00 C33-43 G61MPV-36B-070 3130540
NOTES:
TXV = Matched with Thermostatic Expansion Valve.
RFC = Matched with RFC metering device.
Ratings are certied in accordance with USE certication program which is based on AHRI Standard 210/240; 95°F outdoor air temperature, 80°F db / 67°F wb entering
evaporator air with 25 ft. of connecting refrigerant lines.
All ratings include the use of a blower time delay relay (TDR). All Lennox variable-speed furnaces and Air Handlers have time delay capabilities. Other Furnaces and Air
Handlers may require an optional time delay relay (58M81) for eld installation. See furnace or air handler specications to determine if relay is needed.
Also see Expansion Valve Kit Usage Table.

Lennox XC14 Specifications

General

Compressor Type	Single-Stage
Refrigerant	R-410A
Energy Star Certified	Yes
Cooling Capacity (BTU/h)	18, 000 to 60, 000
Cooling Capacity	1.5 - 5 tons
EER Rating	Up to 13.00
Warranty	10-year limited warranty on compressor, 5-year limited warranty on parts
Compressor	Scroll
