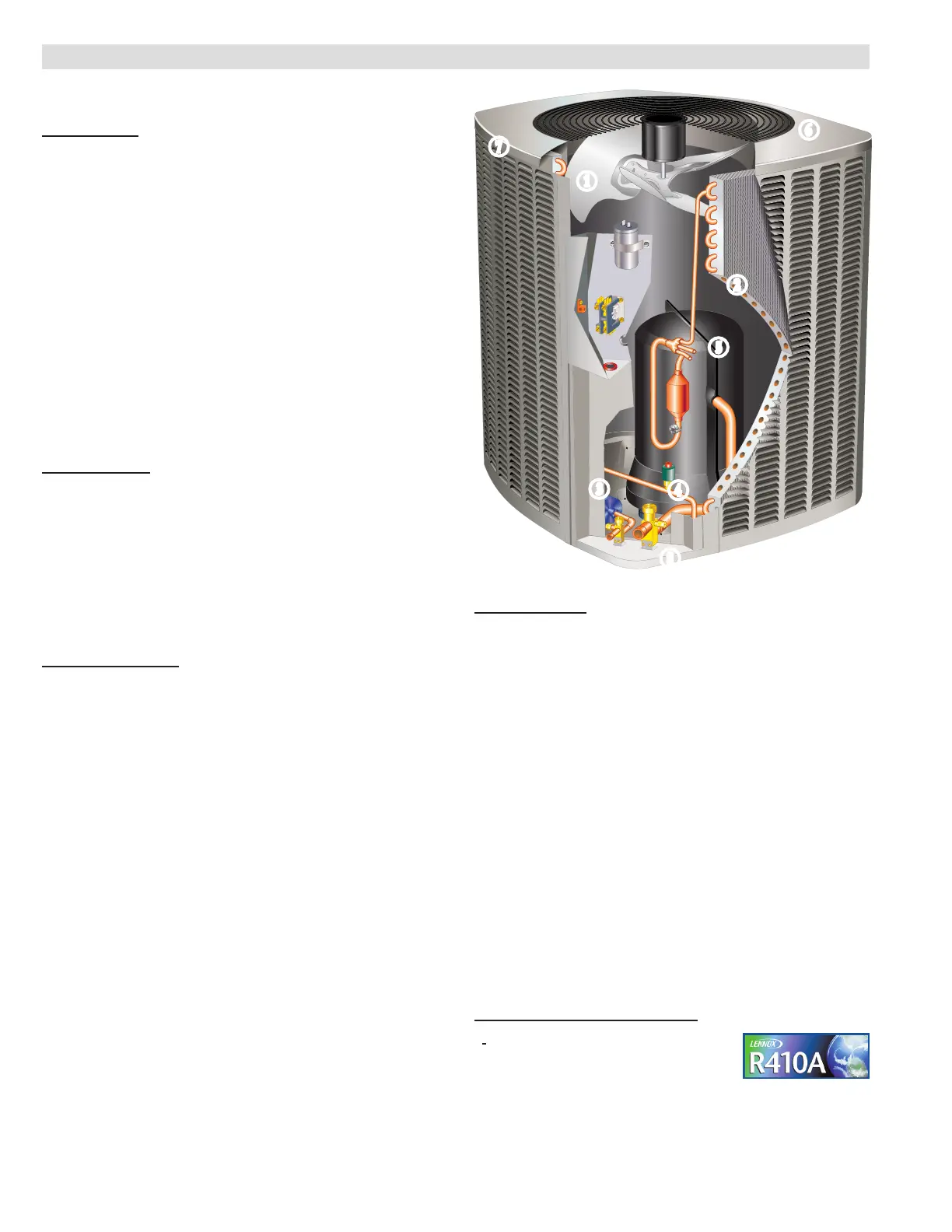

XC14 - 1.5 to 5 Ton Air Conditioner / Page 2
Warranty
Compressor - limited warranty for ten years in
residential installations and ve years in non-residential
installations.
All other covered components - ve years in
residential installations and one year in non-residential
installations.
Refer to Lennox Equipment Limited Warranty certicate
included with unit for specic details.
Applications
SEER up to 16.50.
1.5 through 5 ton.
Single-phase power supply.
Vertical air discharge allows concealment behind shrubs
at grade level or out of sight on a roof.
Matching add-on furnace indoor coils or air handlers
provide a wide range of cooling capacities and
applications. See AHRI Ratings table. See Indoor Coils
and Air Handlers sections for data.
Units shipped completely factory assembled, piped and
wired.
Each unit test operated at the factory ensuring proper
operation. Installer must set air conditioner, connect
refrigerant lines and make electrical connections to
complete job.
A
Approvals
Certied in Accordance with the USE certication
program, which is based on AHRI Standard 210/240-
2008.
Sound rated in Lennox reverberant sound test room
in Accordance with test conditions included in AHRI
Standard 270-2008.
Tested in the Lennox Research Laboratory
environmental test room. Rated According to U.S.
Department of Energy (DOE) test procedures.
Units and components within bonded for grounding to
meet safety standards for servicing required by UL,
NEC and CEC.
Units are UL listed and CSA certied.
ISO 9001 Registered Manufacturing Quality System.
EnErgy Star
®
certied units are designed to use less
energy, help save money on utility bills, and help protect
the environment.
For expanded ratings, see www.lennoxdavenet.com
REFRIGERATion SYSTEM
R-410A Refrigerant
Non-chlorine, ozone friendly, R-410A.
Unit pre-charged with refrigerant. See
Specication table.
FEATURES
Contents
AHRI System Matches................................................11
Dimensions ...................................................................9
Electrical Data...............................................................6
Features........................................................................2
Field Wiring ...................................................................8
Installation Clearances .................................................8
Model Number Identication .........................................1
Optional Accessories ....................................................6
Outdoor Sound Data ....................................................8
Specications ...............................................................6
