Page 43
XP14 SERIES
Unit Wiring Diagram and Sequence of Operations

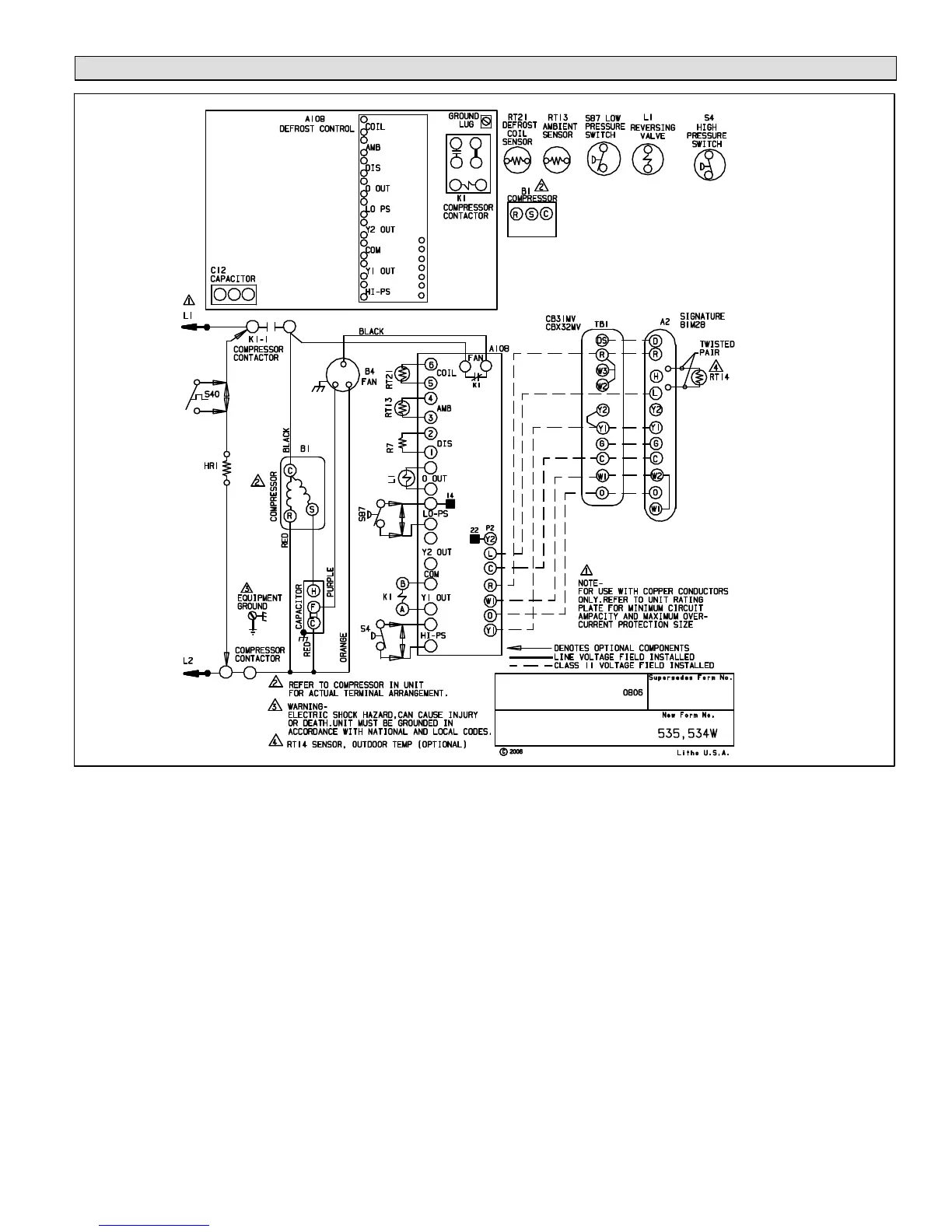

Figure 22. XP14 Unit Wiring Diagram (XP14-XXX-230-01 through 07)
