Page 59
XP17
LEG DETAIL
BASE
2” (50.8MM) SCH 40
FEMALE THREADED
ADAPTER
ONE BRACKET PER SIDE (MIN.); FOR EXTRA STABILITY, TWO
BRACKETS PER SIDE, 2” (50.8MM) FROM EACH CORNER.
CONCRETE SLAB — USE TWO PLASTIC
ANCHORS (HOLE DRILL 1/4”)
COIL
BASE PAN
CORNER POST
STABILIZING BRACKET (18 GAUGE
METAL — 2” WIDTH; HEIGHT AS
REQUIRED)
Slab Side Mounting
#10 1/2” LONG SELF-DRILLING
SHEET METAL SCREWS
#10 1-1/4” LONG HEX HD SCREW
AND FLAT WASHER
MINIMUM ONE
PER SIDE
STABILIZING BRACKET (18 GAUGE METAL
— 2” (50.8MM) WIDTH; HEIGHT AS
REQUIRED); BEND TO FORM RIGHT ANGLE
FOR EXTRA
STABILITY
Deck Top Mounting
Elevated Slab Mounting using Feet
Extenders
Stabilizing Unit on Uneven Surfaces
WOOD OR PLASTIC SLAB — NO PLASTIC ANCHOR
(HOLE DRILL 1/8”)
INSTALL UNIT LEVEL OR, IF ON A SLOPE, MAINTAIN SLOPE TOLERANCE
OF 2 DEGREES (OR 2 INCHES PER 5 FEET [50 MM PER 1.5 M]) AWAY
FROM BUILDING STRUCTURE.
MOUNTING
SLAB
BUILDING
STRUCTURE
GROUND LEVEL
Outside Unit Placement
Slab Mounting at Ground Level
SAME FASTENERS AS
SLAB SIDE MOUNTING.
IMPORTANT — To help stabilize an outdoor unit, some installations may require
strapping the unit to the pad using brackets and anchors commonly available in the
marketplace.
DETAIL A
DETAIL B
DETAIL C
DETAIL D
2” (50.8MM) SCH 40
MALE THREADED
ADAPTER
Use additional 2” SCH 40 male threaded adapters
which can be threaded into the female threaded
adapters to make additional adjustments to the lev
el of the unit.
TWO 90° ELBOWS INSTALLED IN LINE SET WILL
REDUCE LINE SET VIBRATION.
INSTALL UNIT AWAY FROM WINDOWS

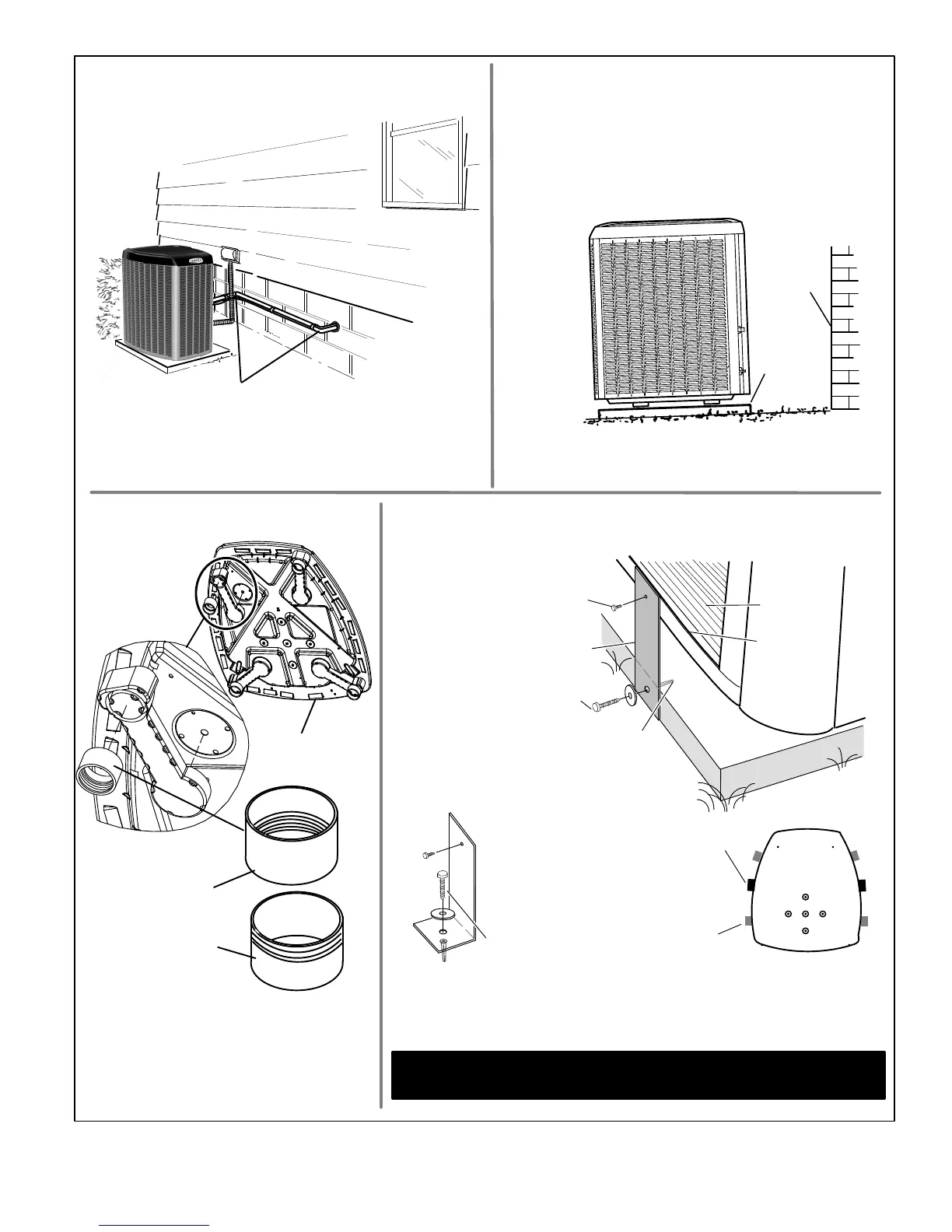

Figure 36. Placement, Slab Mounting and Stabilizing Unit
