Lenovo B575e - 2020 Integrated Camera; 2030 LCD Panel, LCD Cable, and Hinges

2020Integratedcamera
Foraccess,removetheseFRUsinorder:
•“1010Batterypack”onpage44
•“1080Keyboard”onpage51
•“1090Keyboardbezel”onpage54
•“1130Systemboardassembly”onpage63
•“1140LCDunit”onpage65
•“2010LCDfrontbezel”onpage72
Removalstepsofintegratedcamera

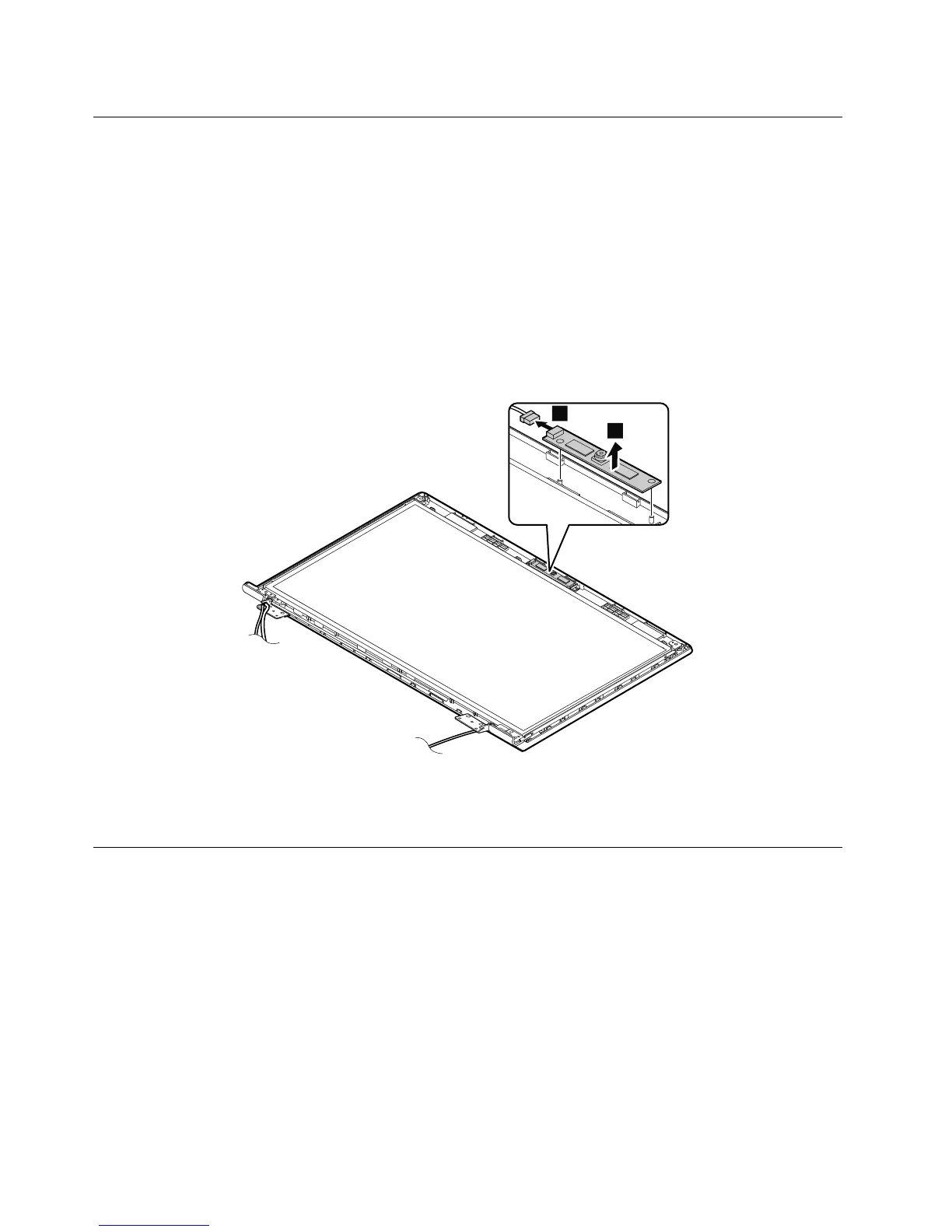

RemovetheintegratedcamerafromtheLCDcoverasshowninthefollowingillustration.
Note:TheintegratedcameraisstuckonthetopcenteroftheLCDcover.
1
2
Wheninstalling:SticktheintegratedcameratothetopcenteroftheLCDcoverandadjusttheplacementto
makesurethattheconnectorisattachedrmly.
2030LCDpanel,LCDcable,andhinges
Foraccess,removetheseFRUsinorder:
•“1010Batterypack”onpage44
•“1020Bottomslotcover”onpage44
•“1080Keyboard”onpage51
•“1090Keyboardbezel”onpage54
•“1130Systemboardassembly”onpage63
•“1140LCDunit”onpage65
•“2010LCDfrontbezel”onpage72
