Lenovo IdeaPad S310 Hardware Maintenance Manual
34

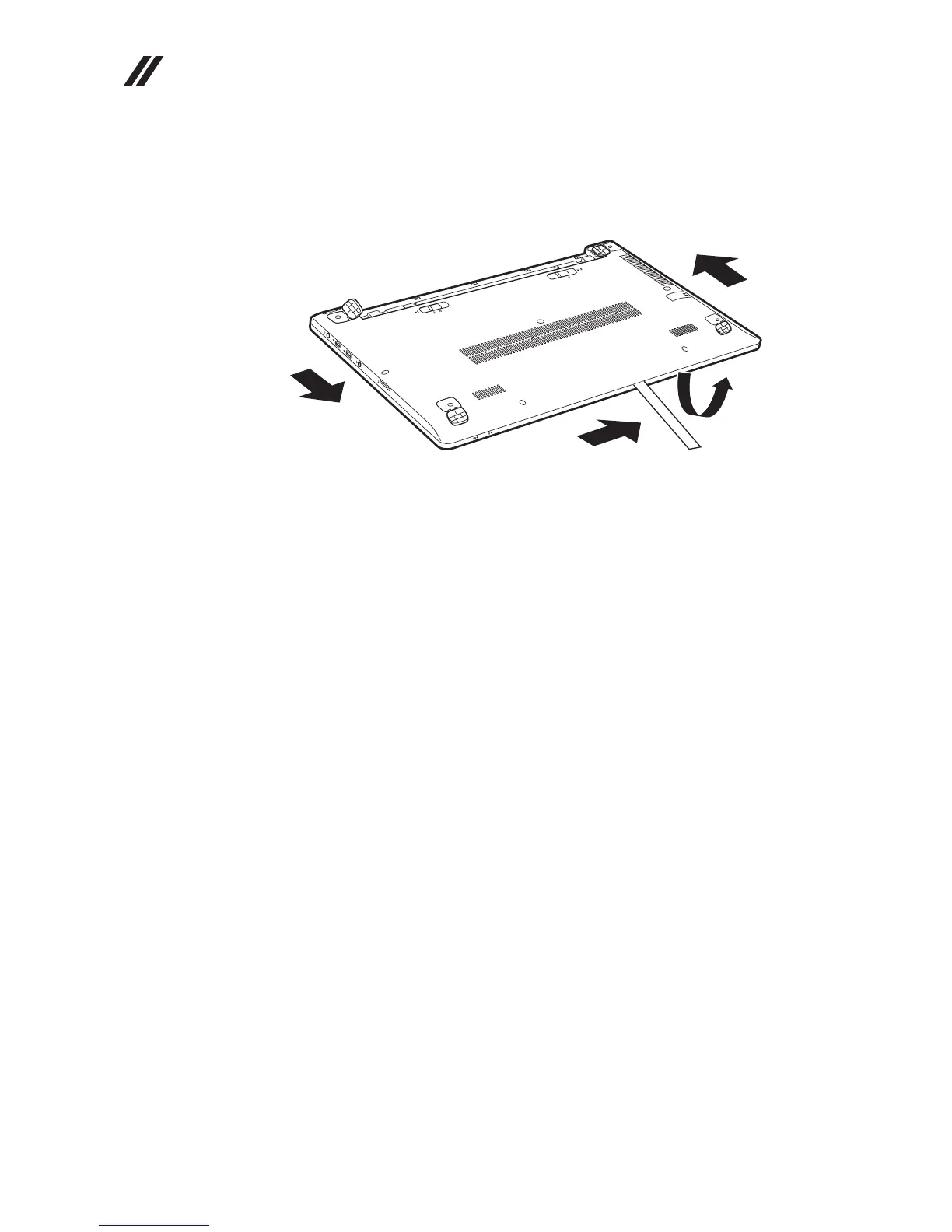

Figure 1. Removal steps of battery pack (continued)
Open the back cover along the device frame with a flat blade in the direction
shown by arrows and then lift the back cover in the direction shown by arrow
.
