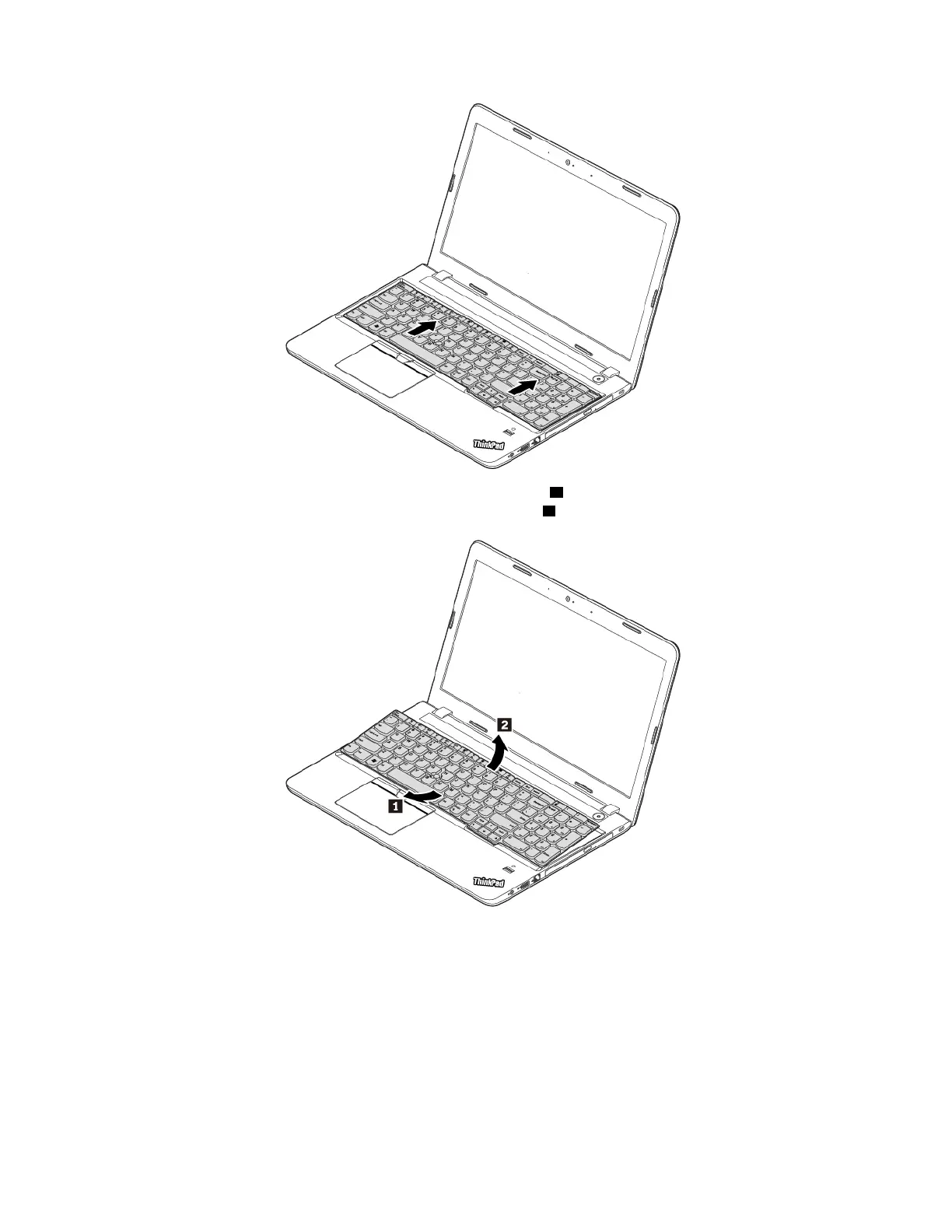

6. Slightly push the keyboard in the direction as shown by arrow 1 to release the latches from the
keyboard bezel. Lift the keyboard slightly as shown by arrow
2 .
7. Put the keyboard on the palm rest as shown and detach the connectors. Remove the keyboard.
