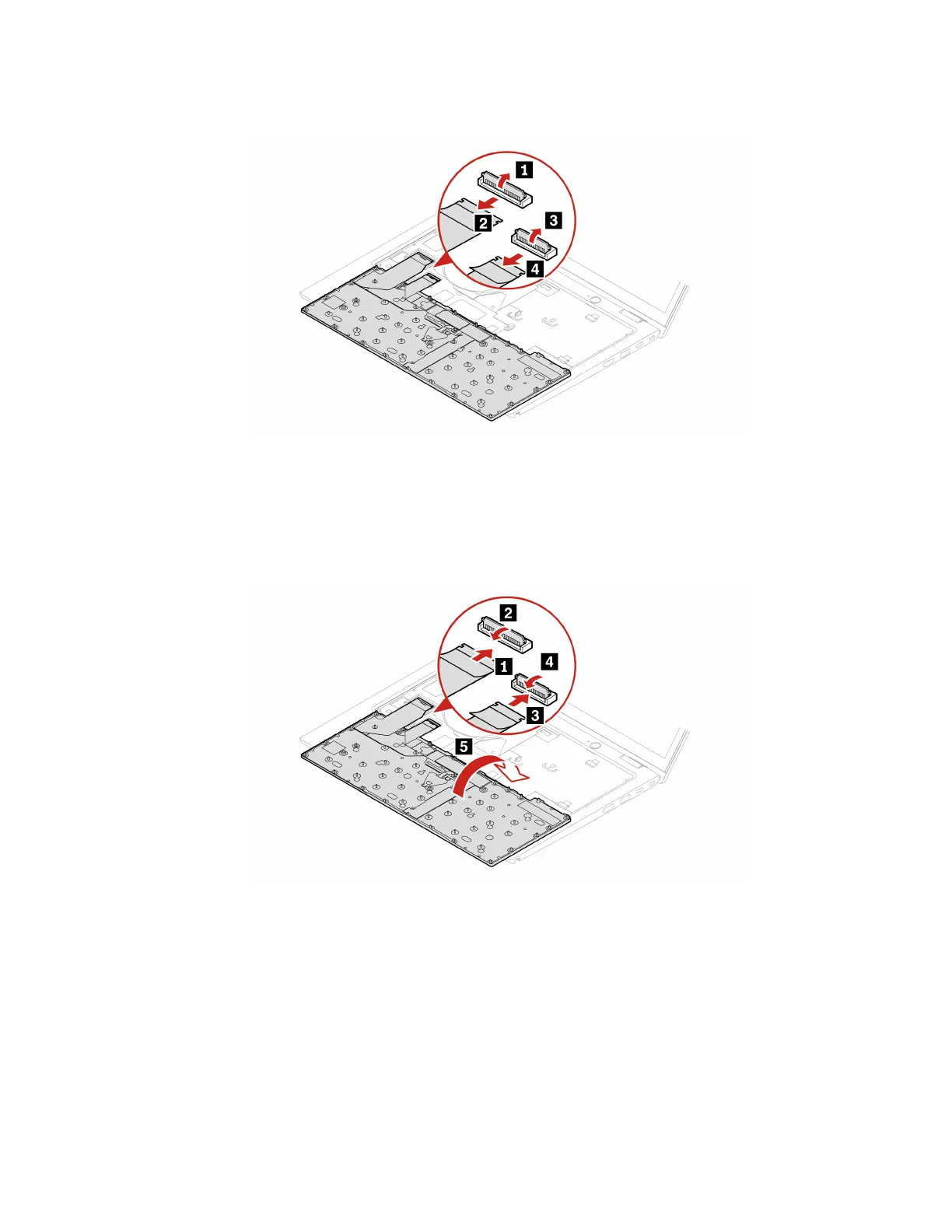

4. Put the keyboard on the palm rest as shown and detach the connectors. Then, remove the keyboard.
Installation procedure
Note: You might be instructed to slide the keyboard frame forward or backward in some of the following
steps. In this case, ensure that you do not press or hold the keys while sliding the keyboard frame.
Otherwise, the keyboard frame cannot be moved.
1. Attach the connectors and then turn over the keyboard.
Chapter 6. CRU replacement 39
