Lenovo ThinkPad Thunderbolt 3 User Manual

1
2

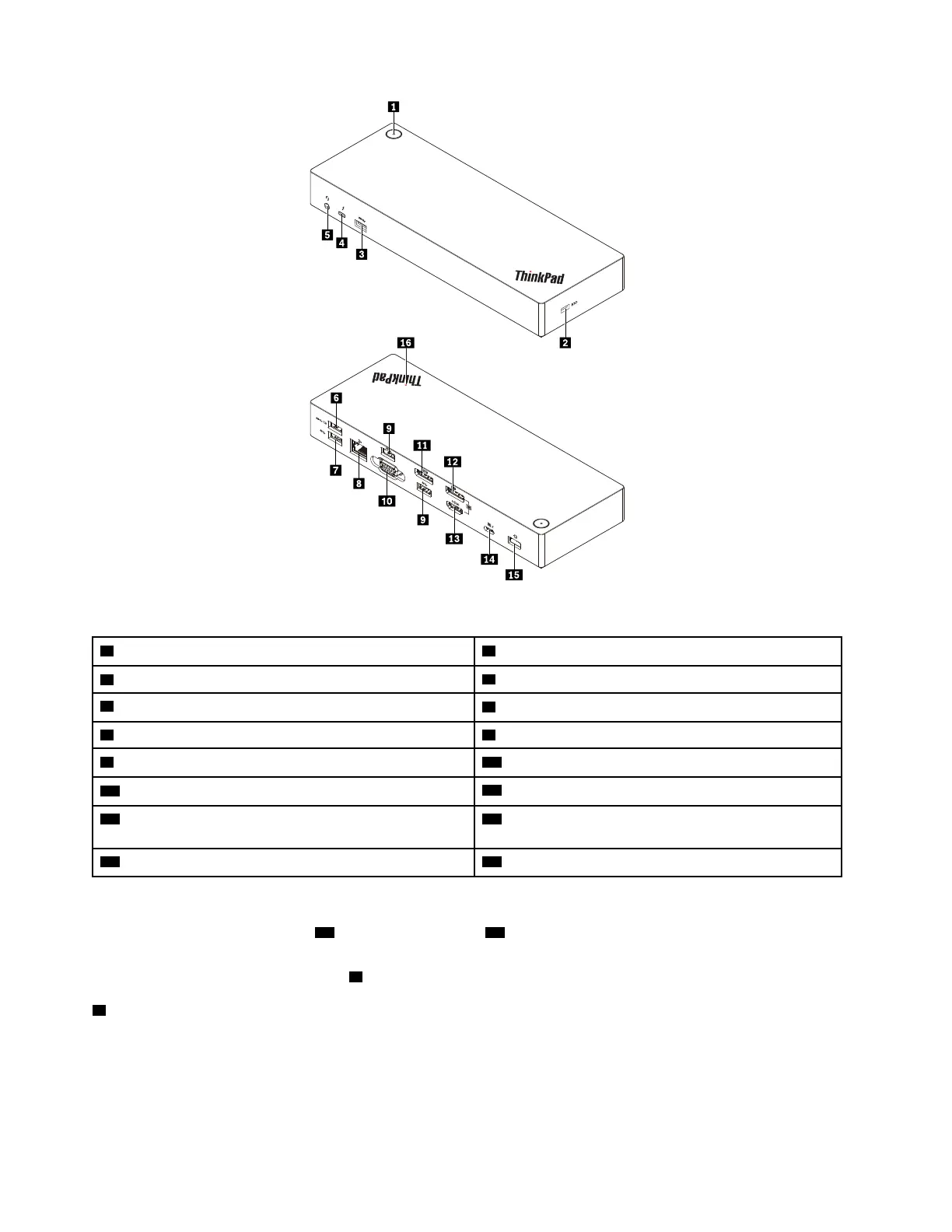

Figure 1. Dock controls, connectors, and indicators
1 Power button with indicator
2 Security-lock slot
3 USB 3.0 connector
4 Thunderbolt 3 connector
5 Headset and microphone combo connector
6 Always On USB 3.0 connector
7 USB 3.0 connector
8 Ethernet connector
9 USB 3.0 connector 10 Video graphics array (VGA) connector
11 DisplayPort
®
(DP) connector
12 DisplayPort connector
13 High-Definition Multimedia Interface
TM
(HDMI
TM
)
connector
14 Thunderbolt 3 connector
15 Power connector 16 Indicator in ThinkPad logo
Notes:
•
Do not use the DP connector
12 and HDMI connector 13 at the same time.
• For the wireless keyboard and mouse, it is recommended that you connect the keyboard/mouse USB
receiver to the USB 3.0 connector
9 located above the VGA connector on the dock.
1 Power button with indicator
• Power button
– When the dock is disconnected from the computer, press the power button to turn off the dock.
– When the dock is connected to the computer, the power button on the dock has the same functions as
the power button of the computer. You can use the power button on the dock to turn on, turn off, sleep,
2
ThinkPad Thunderbolt 3 Dock User Guide

Lenovo ThinkPad Thunderbolt 3 Specifications

General

Microphone in	No
Headphone outputs	-
USB connector type	USB Type-A
PS/2 ports quantity	2
USB 2.0 ports quantity	0
Connectivity technology	Wired
Combo headphone/mic port	Yes
Thunderbolt 3 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Certification	COC, CU EAC, cULus, FCC, ICES, KCC, NOM, RCM, SABS LoA, Serbia Kvalitet, SII, TUV Mark, VCCI, CE, CB, BSMI
Compatibility	ThinkPad
Product color	Black
Brand compatibility	Lenovo
Cable lock slot type	Kensington
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	4
Cables included	AC, Thunderbolt
Package depth	195 mm
Package width	270 mm
Package height	85 mm
Package weight	2232 g
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-5 - 35 °C
Operating relative humidity (H-H)	5 - 95 %
Windows operating systems supported	Windows 10
Sustainability certificates	RoHS
Power supply	230 W
Power source type	DC
Power supply type	External

Weight and Dimensions

Depth	80 mm
Width	220 mm
Height	30 mm
Weight	525 g
