FRU replacement notices
This section contains notices related to removing and replacing parts. Read this
section carefully before replacing any FRU.
Screw notices
Loose screws can cause a reliability problem. In the ThinkPad computer, this
problem is addressed with special nylon-coated screws that have the following
characteristics:
v They maintain tight connections.
v They do not easily come loose, even with shock or vibration.
v They are harder to tighten.
v Each one should be used only once.
Do
the following when you service this machine:
v Keep the screw kit (for the P/N, see “Miscellaneous parts” on page 155) in your
tool bag.
v Always use new screws.
v Use a torque screwdriver if you have one.
Tighten
screws as follows:

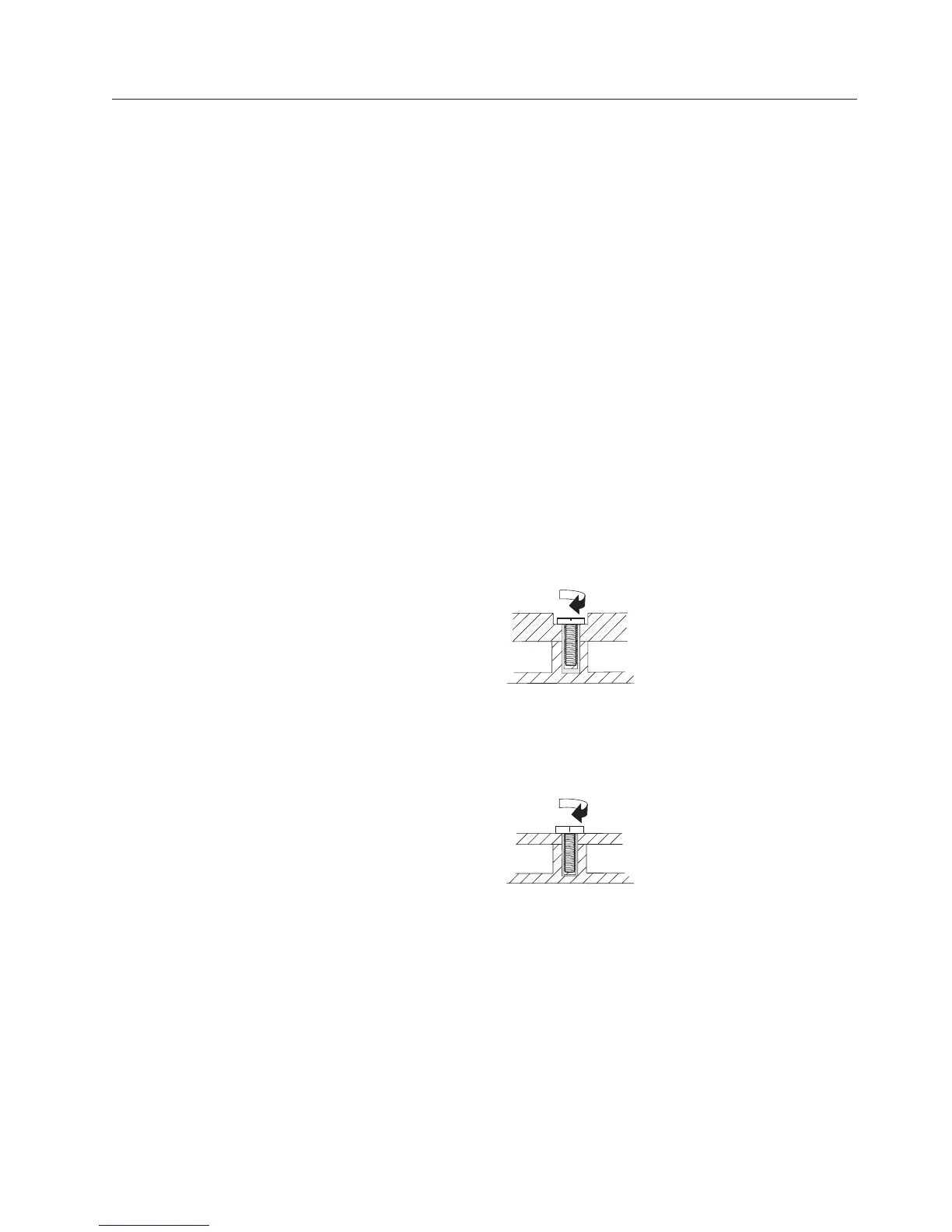

v Plastic to plastic
Turn an additional 90 degrees after the screw head touches the surface of the
plastic part:
90 degrees more
(Cross-section)
v Logic card to plastic
Turn an additional 180 degrees after the screw head touches the surface of the
logic card:
180 degrees more
(Cross-section)
v Torque driver
If you have a torque driver, refer to the “Torque” column for each step.
v Make sure that you use the correct screw. If you have a torque screwdriver,
tighten all screws firmly to the torque shown in the table. Never use a screw
that you removed. Use a new one. Make sure that all of the screws are
tightened firmly.
v Ensure torque screwdrivers are calibrated correctly following country
specifications.
Retaining serial numbers
This section includes the following descriptions:
v “Restoring the serial number of the system unit” on page 52
FRU replacement notices
ThinkPad X60 Tablet and X61 Tablet 51

Lenovo ThinkPad X61 Tablet Specifications

General

Bus type	FSB
Tjunction	100 °C
Processor cache	4 MB
Processor cores	2
Processor model	L7500
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo L7000 Series
Processor socket	Socket 479
Processor codename	Merom
Processing Die size	143 mm²
Processor frequency	1.6 GHz
Processor cache type	L2
Processor lithography	65 nm
Processor manufacturer	Intel
Processor front side bus	800 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	17 W
CPU multiplier (bus/core ratio)	8
Number of Processing Die Transistors	291 M
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB
HDD capacity	120 GB
HDD interface	SATA
Compatible memory cards	SD
Display diagonal	12.1 \
Display resolution	1024 x 768 pixels
Native aspect ratio	4:3
Modem speed	56 Kbit/s
Graphics card	GMA X3100
Internal modem	Yes
Charging port type	DC-in jack
USB 2.0 ports quantity	3
CardBus PCMCIA slot type	Type II
Ethernet LAN (RJ-45) ports	1
Battery life (max)	2.9 h
Number of battery cells	4
Audio system	AD1984 Codec
Networking features	Gigabit Ethernet
Bundled software	Adobe Acrobat Reader, Sun JRE, ThinkVantage Productivity Center, ThinkVantage Access Connections, ThinkVantage Client Security Solution, ThinkVantage System Update, Norton Internet Security 2007 (OEM), Diskeeper 9.0 Home Edition, ThinkVantage Rescue and Recovery, PC-Doctor diagnostics
Processor ARK ID	29757
Processor package size	35 x 35 mm

Weight and Dimensions

Depth	244 mm
Width	274 mm
Height	33 mm
Weight	1800 g
