1 ServeRAID- MR10i SAS/SATA controller
2 SAS signal cables
The SATA cable is a combination power and signal cable with a shared connector

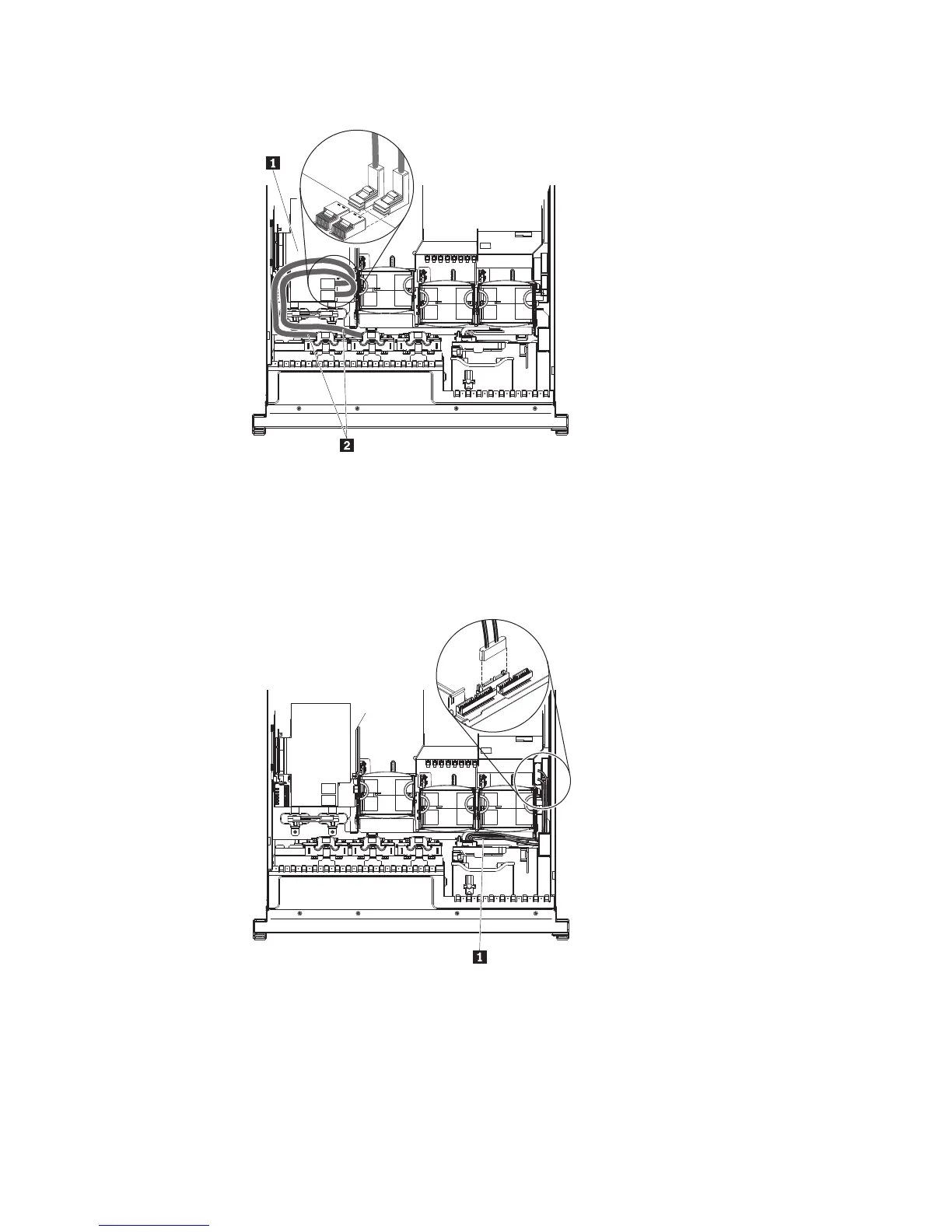

on both ends. The following illustration shows the internal routing and connector for
the SATA cable 1.
The following illustration shows the internal routing and connector for the operator
information panel cable.
164 ThinkServer RD220 Types 3729, 3779, 3797, and 3798: Hardware Maintenance Manual
