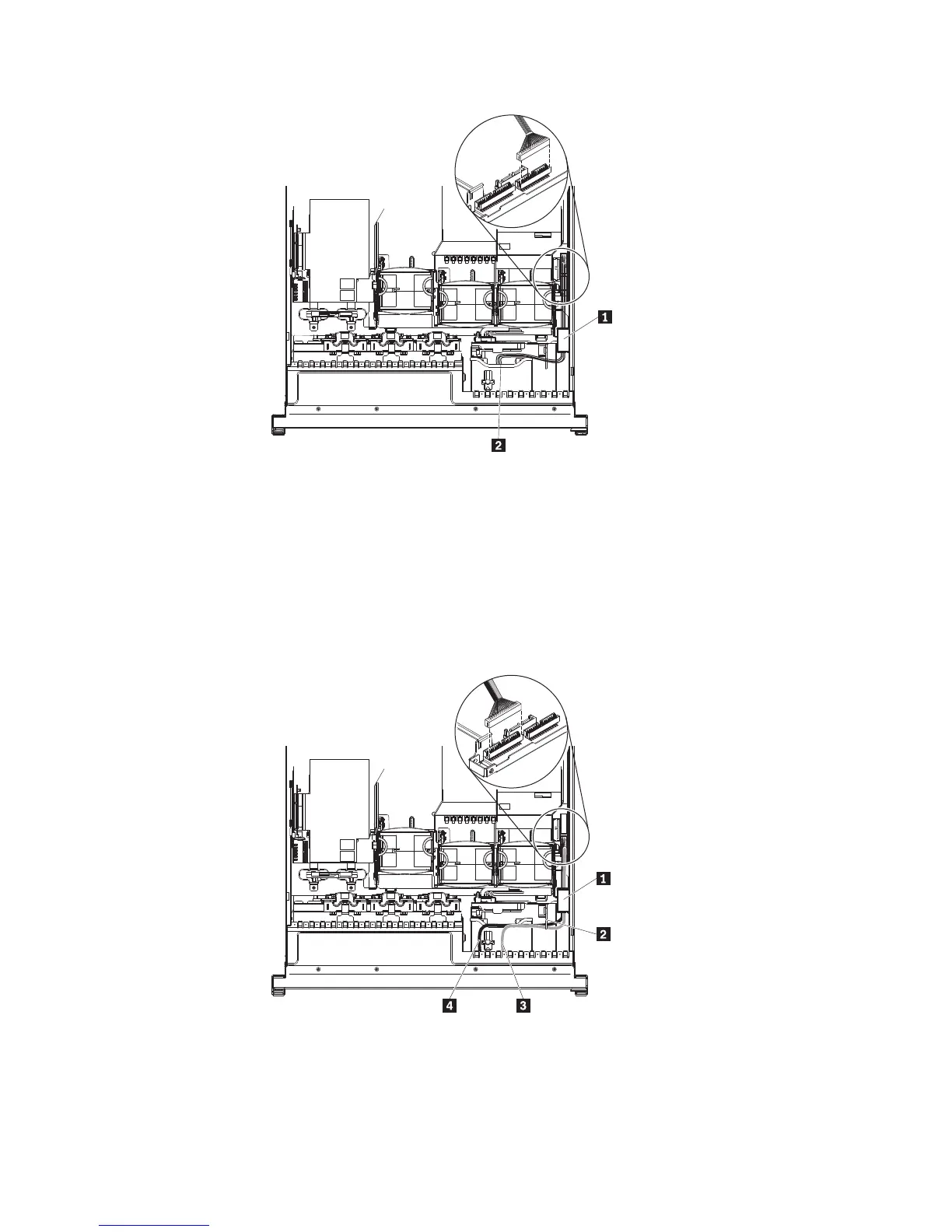

1 Top cover latch receptacle
2 Operator panel cable
The following illustration shows the internal routing and connector for the USB/video
cable.
Note: The USB cable is routed under the video cable and then both the USB and
video cables are routed under the cable retention tab and the top cover latch
receptacle.
1 Top cover latch receptacle
2 Cable retention tab
3 Video cable
4 USB cable
Chapter 6. Removing and installing FRUs 165
