6.Pressthereleasetab1inthedirectionasshownandthenpushthediagnosticmoduleoutofthe
frontofthechassis.

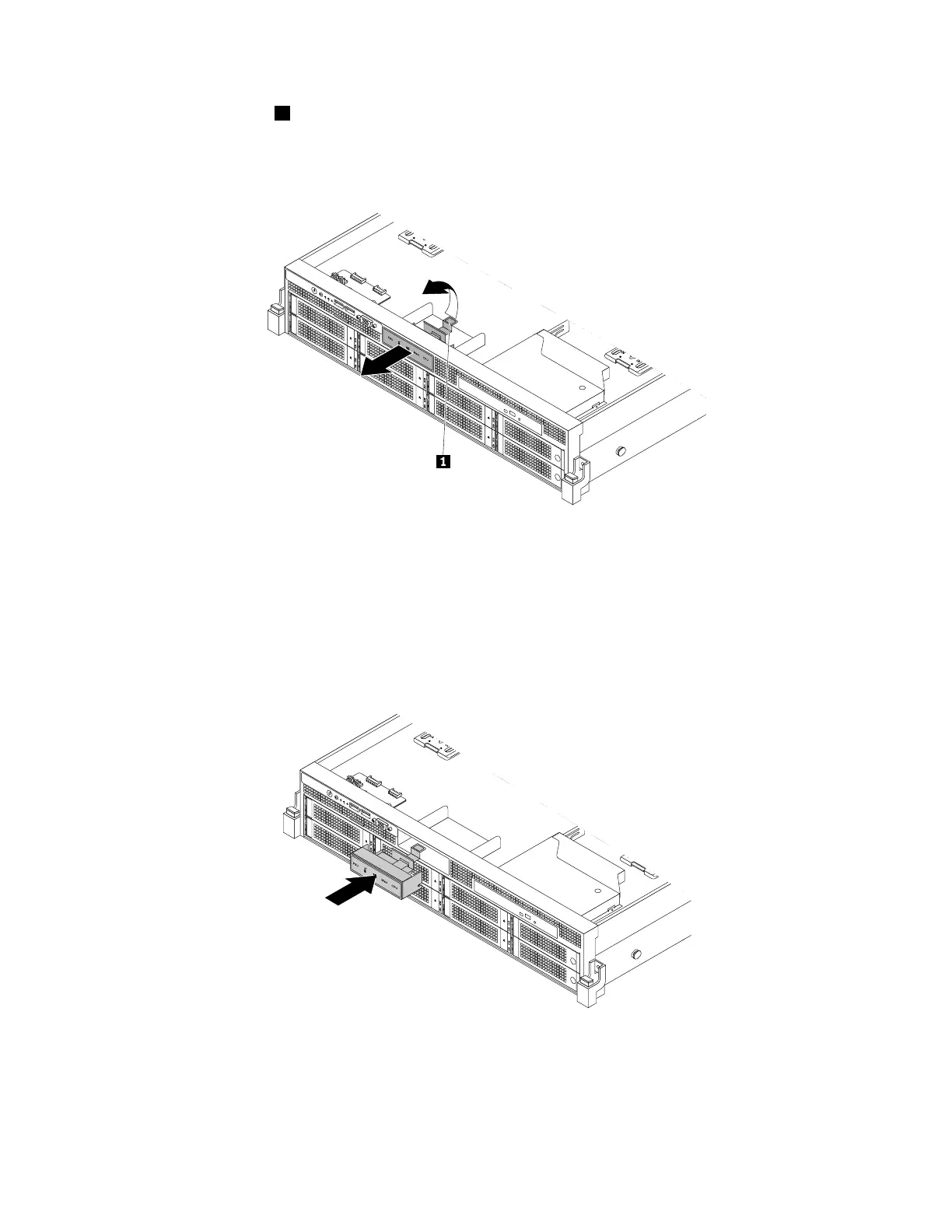

Figure127.Removingthediagnosticmoduleforservermodelswitheight3.5-inchharddiskdrivebays
7.Touchthestatic-protectivepackagethatcontainsthenewdiagnosticmoduletoanyunpaintedsurface
ontheoutsideoftheserver.Then,takethenewdiagnosticmoduleoutofthepackage.
8.Slidethenewdiagnosticmoduleintothechassisfromthefrontuntilitsnapsintoposition.
Figure128.Installingthediagnosticmoduleforservermodelswitheight3.5-inchharddiskdrivebays
9.Connectthediagnosticmodulecabletotherearofthenewdiagnosticmodule.
168ThinkServerRD430HardwareMaintenanceManual
