System-board option connectors

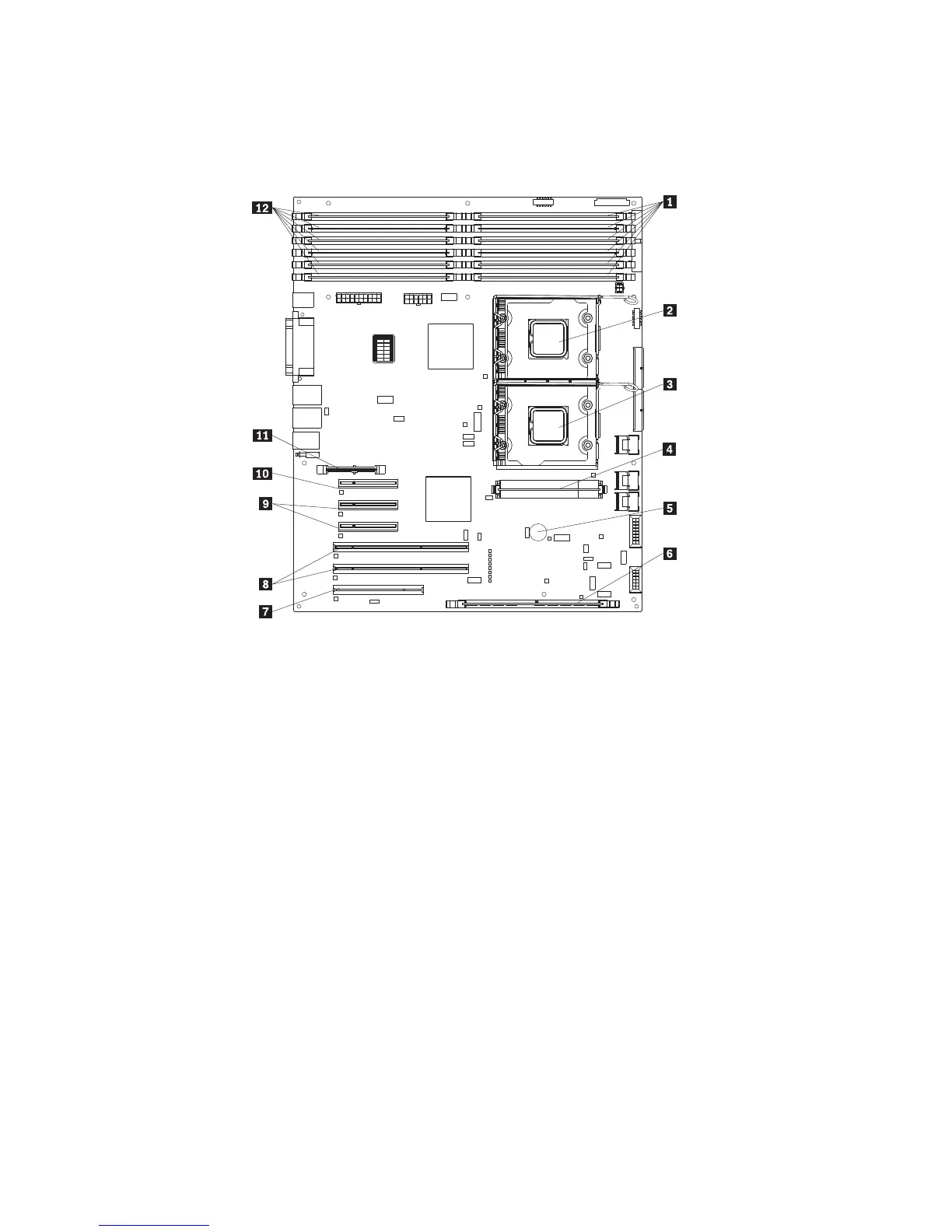

The following illustration shows the system-board connectors for user-installable
options.
1
2
3
4
5
6
7
8
9
10
11
12
DIMM LEDs
1 DIMM (6) 7 PCI 32 bit/33 MHz
2 Microprocessor 1 8 PCI-X 64 bit/133 MHz
3 Microprocessor 2 9 PCI Express x8 (x8)
4 VRM 10 PCI Express x8 (x4)
5 Battery 11 Remote Supervisor Adapter II
SlimLine
6 ServeRAID adapter 12 DIMM (6)
12 ThinkServer TD100 and TD100x: Hardware Maintenance Manual
