4. Disconnect the HDD fan cable from the system board.
5. Press the release tab
1 and slide the 5.25-inch convertor kit out of the drive bay.

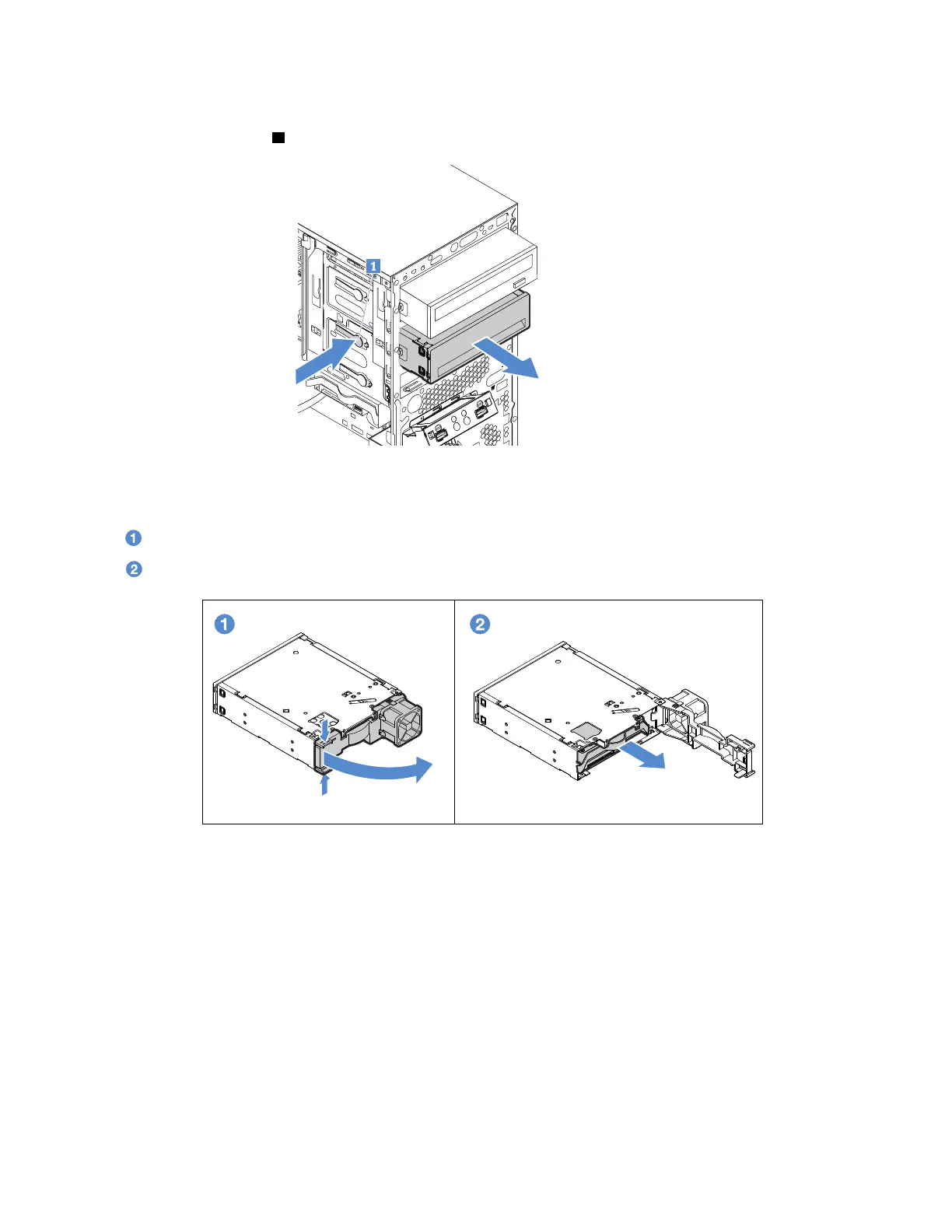

Figure 40. Removing the convertor kit from the drive bay
6. Remove the drive from the 5.25-inch convertor kit.
Squeeze the release buttons as shown to open the rear cover of the convertor kit.
Slide the drive out of the convertor kit.
Figure 41. Removing the drive from the convertor kit
7. Flex two sides of the drive bracket to remove the drive from the bracket.
8. If needed, install a new drive into the 5.25-inch convertor kit. See “Installing a storage drive into drive
bay 4” on page 60.
9. If you are instructed to return the old drive, follow all packaging instructions and use any packaging
materials that are supplied to you for shipping.
Installing a storage drive into drive bay 4
Note: For a 2.5-inch hard disk drive or solid-state drive, install the drive into a 2.5-inch to 3.5-inch drive
adapter first. See “Installing a 2.5-inch drive into a 2.5-inch to 3.5-inch drive adapter” on page 45.
To install a storage drive into drive bay 4, do the following:
1. Prepare your server. See “Preparing your server and removing the server cover” on page 41.
60
ThinkServer TS150 User Guide and Hardware Maintenance Manual
