90 Installation
Figure 71 and Figure 72 (page 90) show I/O and replication occurring on different physical networks. For optimal
protection, use three switches. Connect one (DS2200) or two (DS6200/DS4200) ports from each controller module
to the left switch. Connect one (DS2200) or two (DS6200/DS4200) ports from each controller module to the right
switch.
Connect one (DS2200) or two (DS6200/DS4200) ports from each controller module to the middle switch. Use
multiple switches to avoid a single point of failure inherent to using a single switch, and to physically isolate
replication traffic from I/O traffic.

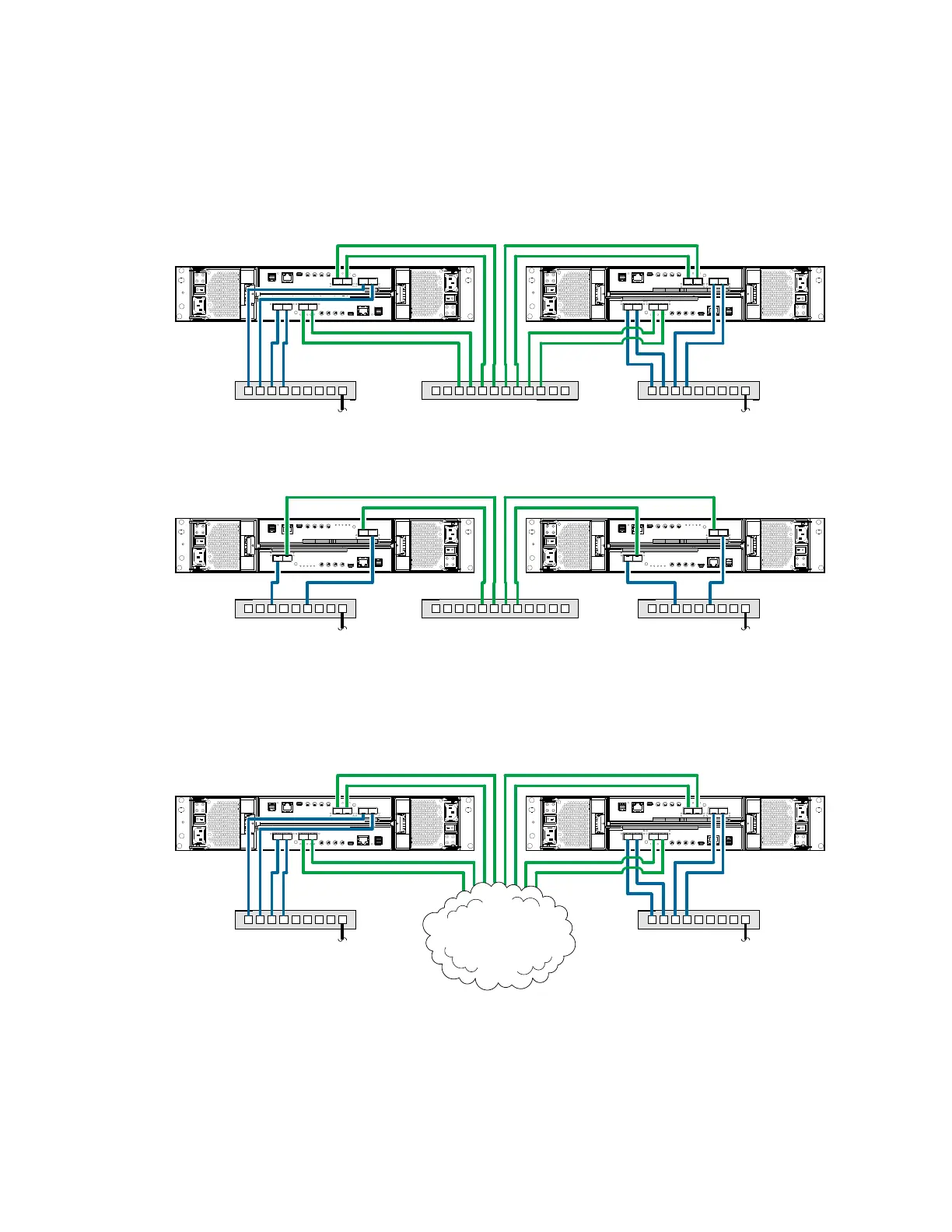

Figure 71 C
onnecting two DS6200/DS4200 storage systems for replication: multiple servers/switches/one location
Figure 72 Connecting two DS2200 storage systems for replication: multiple servers/switches/one location
Multiple servers/different networks/multiple switches
Figure 73 and Figure 74 (page 91) show I/O and replication occurring on different networks.
Figure 73
Connecting two DS6200/DS4200 storage systems for replication: multiple servers/switches/two
locations
DS6200/DS4200 controller enclosure DS6200/DS4200 controller enclosure
I/O switch
To host servers
Switch (replication)
I/O switch
To host servers
DS2200 controller enclosure DS2200 controller enclosure
I/O switch
To host servers
Switch (replication)
I/O switch
To host servers
DS6200/DS4200 controller enclosure DS6200/DS4200 controller enclosure
Ethernet
WAN
I/O switch
I/O switch
To host servers
(site A)
To host servers
(site B)
