• “Server model with three PCIe slots” on page 24
• “Server model with two PCIe slots” on page 24
• “Server model with two 2.5-inch hot-swap rear drive bays and one PCIe slot” on page 26
• “Server model with two 7mm hot-swap rear drive bays and two PCIe slots” on page 26
• “Server model with two 7mm hot-swap rear drive bays and one PCIe slot” on page 26

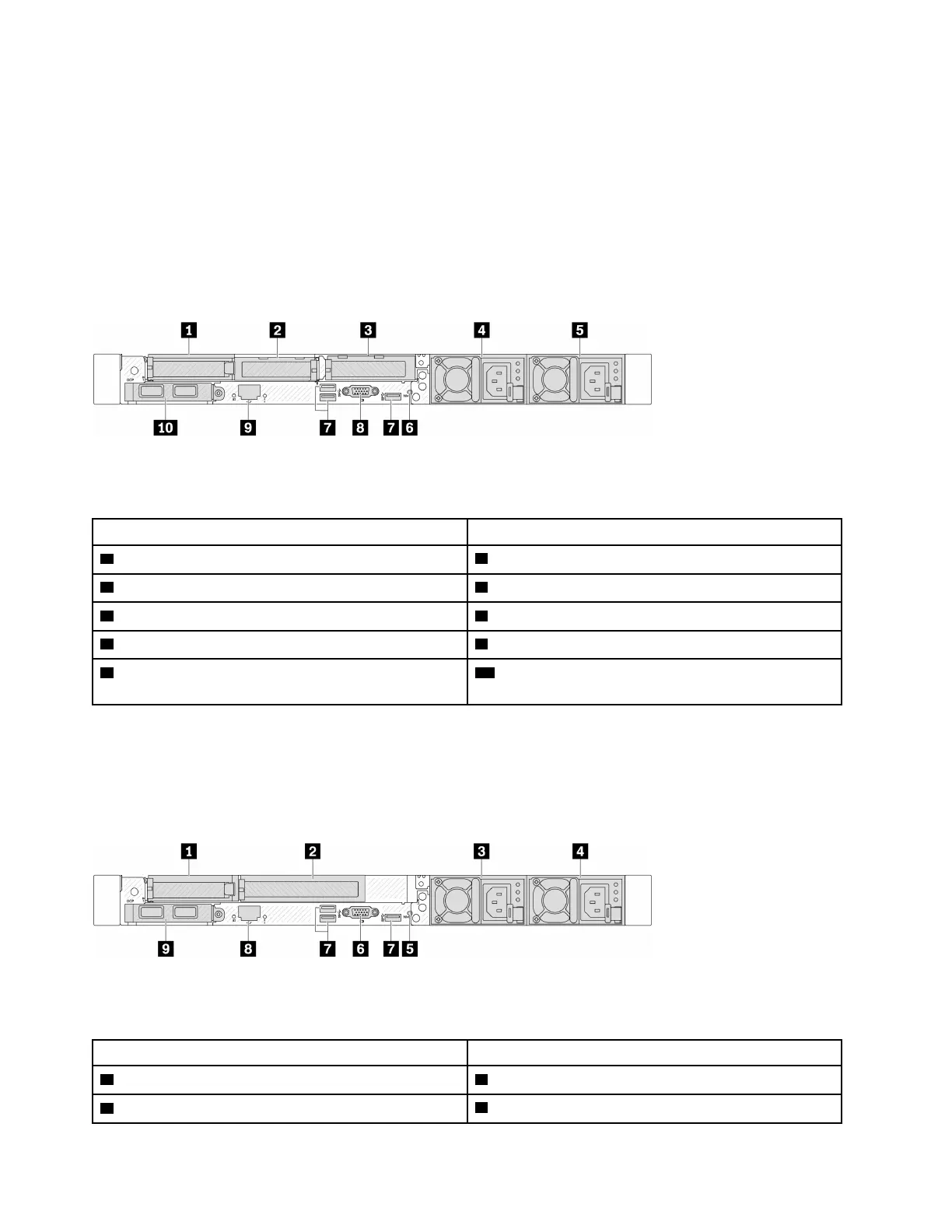

Server model with three PCIe slots
The following illustration shows the rear view of server model with three PCIe slots. Depending on the model,
your server might look slightly different from the illustration below.
Figure 2. Rear view with 3 low profile PCIe adapters
Table 11. Components on the rear of the server
Callout Callout
1 PCIe slot 1 on riser 1 assembly 2 PCIe slot 2 on riser 1 assembly
3 PCIe slot 3 on riser 2 assembly 4 Power supply 2 (optional)
5 Power supply 1 6 NMI button
7 USB 3.1 Gen 1 (5Gbps) connectors (3 DCIs) 8 VGA connector
9 XClarity Controller network connector 10 Ethernet connectors of the OCP module on the rear
(optional, two or four connectors may be available)
Note: For more information about each component, see
“Rear components overview” on page 27.
Server model with two PCIe slots
The following illustration shows the rear views of the server model with two PCIe slots. Depending on the
model, your server might look slightly different from the illustration below.
Figure 3. Rear view with 1 low profile PCIe adapter, 1 full height PCIe adapter, and 1 filler
Table 12. Components on the rear of the server
Callout Callout
1 PCIe slot 1 on riser 1 assembly 2 PCIe slot 2 on riser 1 assembly
3 Power supply 2 (optional)
4 Power supply 1
24 ThinkSystem SR635 V3 System Configuration Guide
