Chapter 2. Server components
This section contains information about each of the components associated with the server.
Front view
This section contains information about the controls, LEDs, and connectors on the front of the server.
Front view of the sever model with 2.5-inch drives
This section contains information on the front view of the sever model with 2.5-inch drives.
Front view of the sever model with 2.5-inch drives

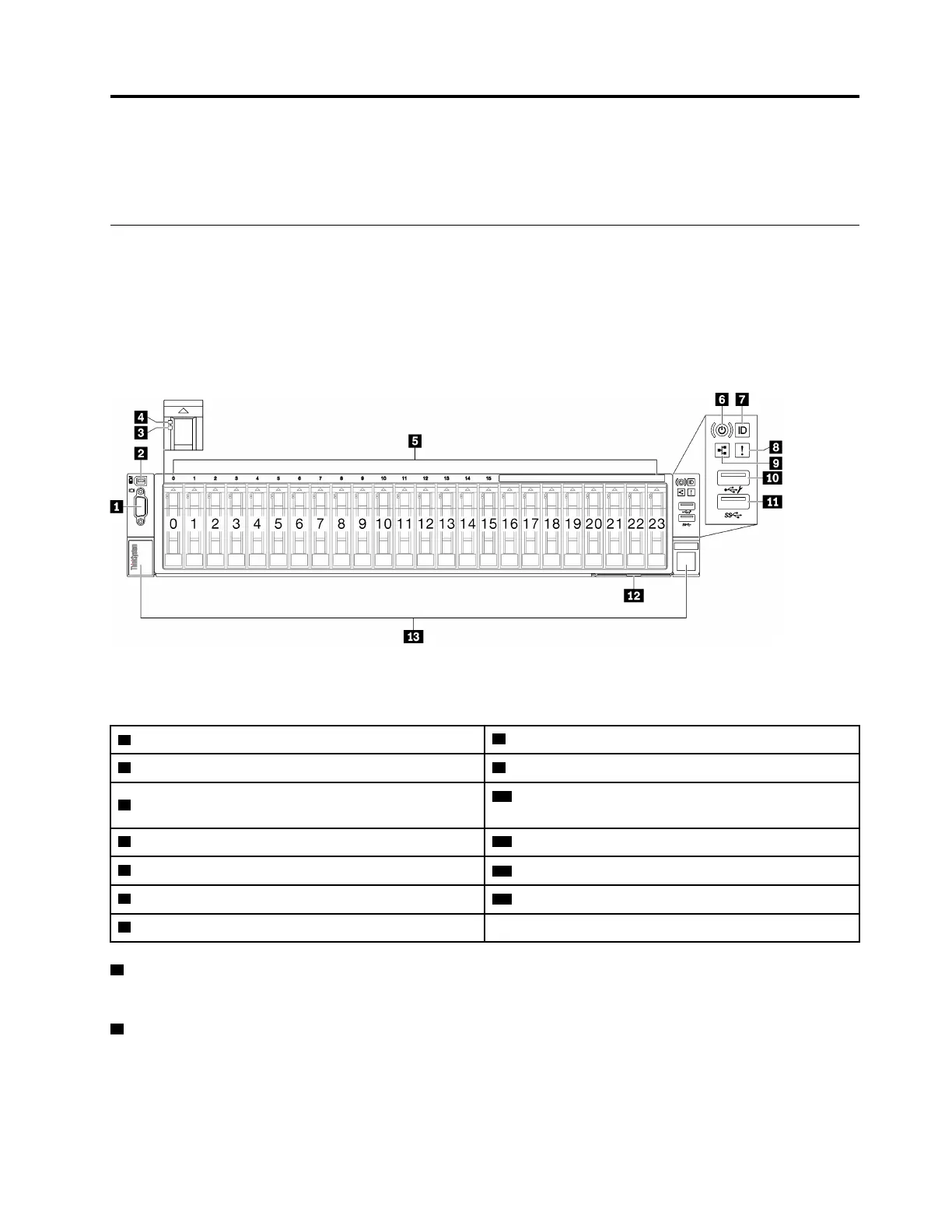

Figure 2. Front view of the sever model with 2.5-inch drives
Table 2. Components on the front view of the sever model with 2.5-inch drives
1 VGA connector
8 System error LED (yellow)
2 External diagnostics handset connector
9 Network activity LED (green)
3 Drive status LED (yellow)
10 USB 2.0 connector with Lenovo XClarity Controller
management
4 Drive activity LED (green)
11 USB 3.1 Gen 1 (5 Gbps) connector
5 2.5-inch drive bays
12 Pull-out information tab
6 Power button/LED (green)
13 Rack release latches
7 System ID button/LED (blue)
1 VGA connector
Connect a monitor to this connector.
2 External diagnostics handset connector
Connect the external diagnostics handset to this connector. See “External diagnostics handset” in
ThinkSystem SR850 V3 User Guide or Hardware Maintenance Guide for more details.
© Copyright Lenovo 2023 17
