48 SF01U
16.0 TROUBLESHOOTING
To aid in troubleshooting, Parameters 50 through 60 can be accessed without entering the
PASSWORD. Simply press the Mode button twice to “skip” over the PASSWORD prompt, and
“P50” will be displayed to indicate that the parameter menu has been entered and Parameter
50 (FAULT HISTORY) can be viewed. The and buttons can then be used to scroll from
Parameter 50 to Parameter 60. Once the desired parameter is found, press the Mode button
to view its “contents”. When finished, press Mode to exit the parameter menu. An example
is shown below:

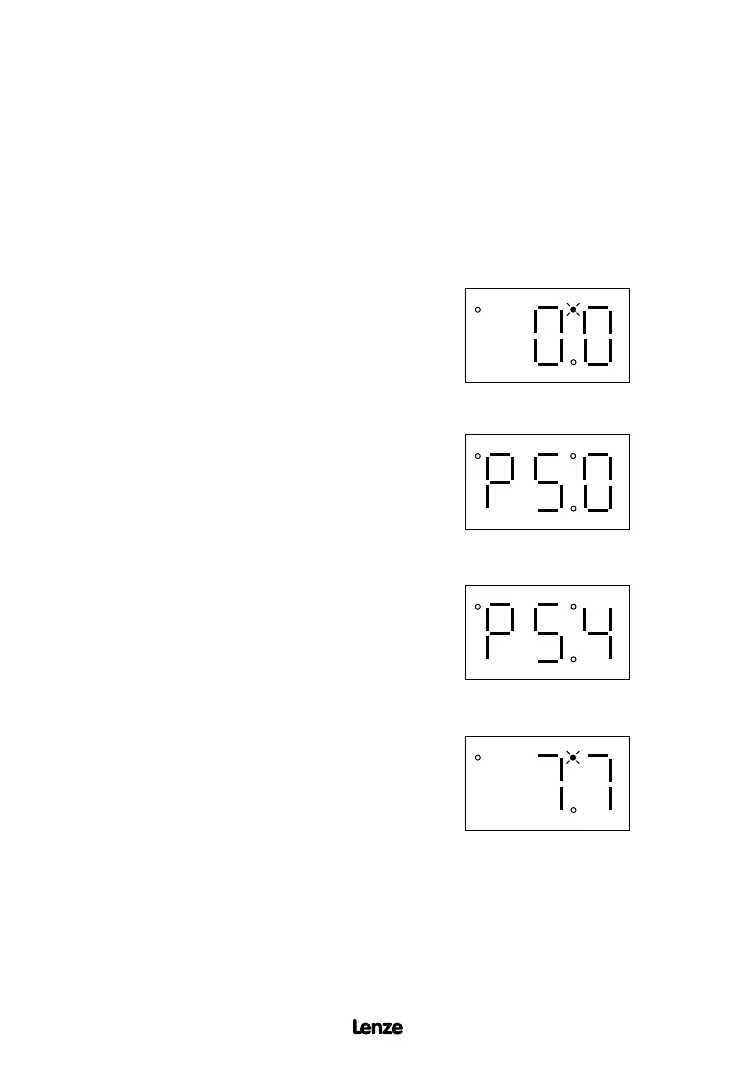

Press Mode once
Upper right decimal point blinks
Display reads "00"
Press Mode again
Display reads "P50" (FAULT HISTORY)
Use and to scroll to the desired
parameter number
Press Mode to view parameter
contents (77 = 77% LOAD)
Press Mode again to exit
Upper right decimal point blinks
(In this example Parameter 54 has been
selected, which is MOTOR LOAD)
In the example above, Parameter 54 - MOTOR LOAD is being viewed. The “77” in the example
indicates that the load on the motor is 77% of the output current rating of the drive.
