Electrical installation
Devices i n the power range 0.25 ... 2.2 kW (1/N/PE AC 230 V)
Terminal assignment of the power connections
6
183
EDS84ASC552 EN 10.0

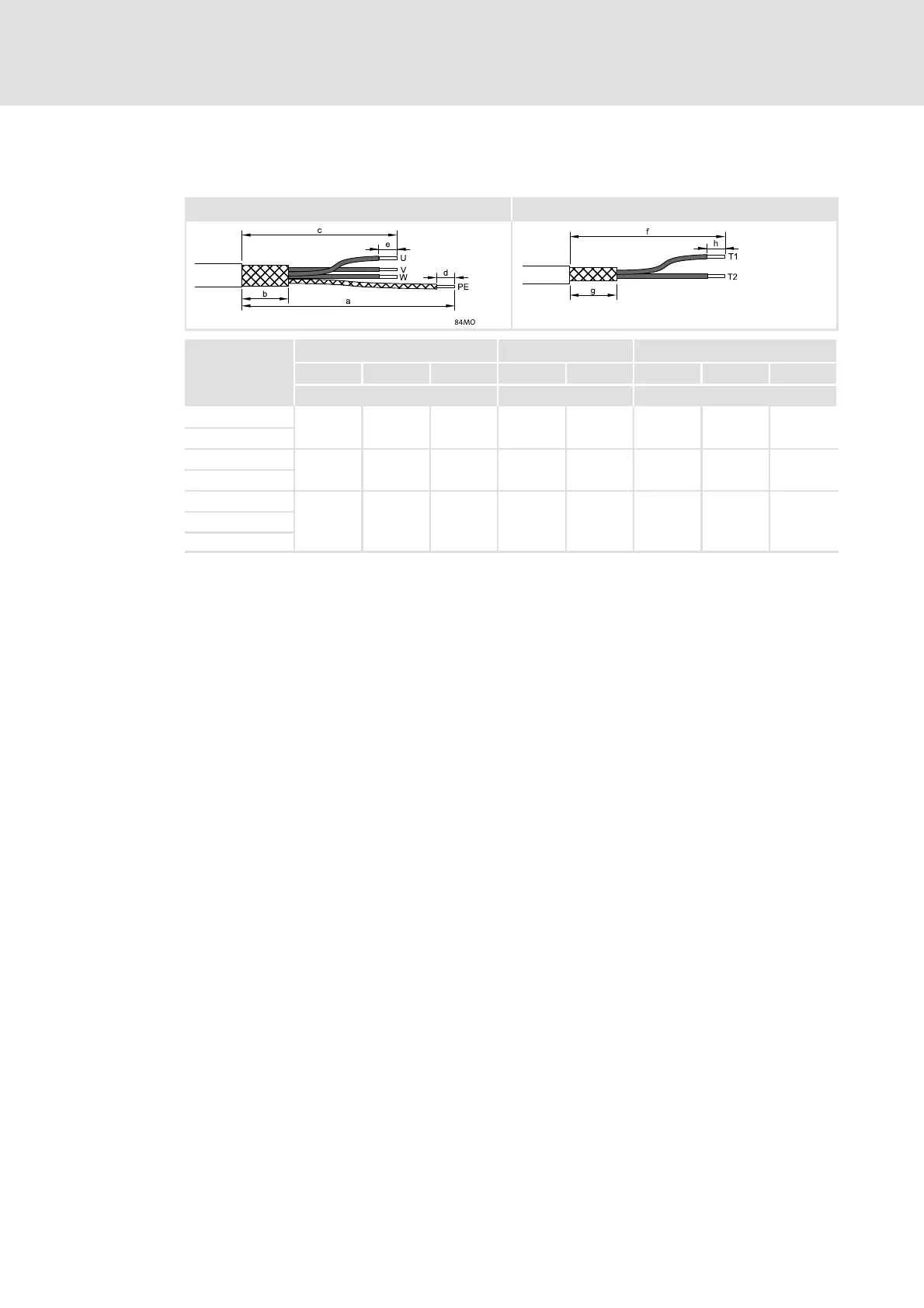

Strip cables
X105 X106
84MOTL001_a 84MOTL001_b
U, V, W PE T1, T2
b c e a d f g h
[mm] [mm] [mm]
E84AVxxx2512
25
65 7 90 9 95 25 10
E84AVxxx3712
E84AVxxx5512
30 65 7 90 9 95 30 10
E84AVxxx7512
E84AVxxx1122
30 65 7 90 9 95 30 10
E84AVxxx1522
E84AVxxx2222
How to proceed:
1. Strip motor cable and cable for motor temperature monitoring according to
specified dimensions.
2. Fold back the shield of the motor cable and motor temperature cable over the cable
sheath. Keep unshielded ends short.
3. Fix shield on the cable sheath (e.g. using a heat-shrinkable tube).
4. Fasten wire end ferrule to PE cable.
– The other cables may be wired without using wire end ferrules.
5. Connect the shields separately to the shield sheet using (metal) cable ties or shield
clamps.
– left: motor cable
– right: cable of motor temperature monitoring
– For strain relief of the cables, measures are required.
