Important notes
Wiring of terminal strips
6
Basic unit wiring
6.2
6.2.8
L
6.2-6
EDS82EV903-1.0-11/2002
6.2.8 Wiring of terminal strips
The enclosed terminal strips are tested according to the specifications of the
l DIN VDE 0627:1986-06 (partially)
l DIN EN 60999:1994-04 (partially)
Checked and tested are, for instance, mechanical, electrical and thermal load,
vibration, damage of conductors, loose conductors, corrosion, ageing.
(
((
( Stop!
Proceed as follows to avoid damage of the contacts:
l Mount only when the controller is not connected to the mains.
l Wire the terminal strips before connecting them!
l Unused terminal strips must also be plugged in to protect the
contacts.
8200vec015

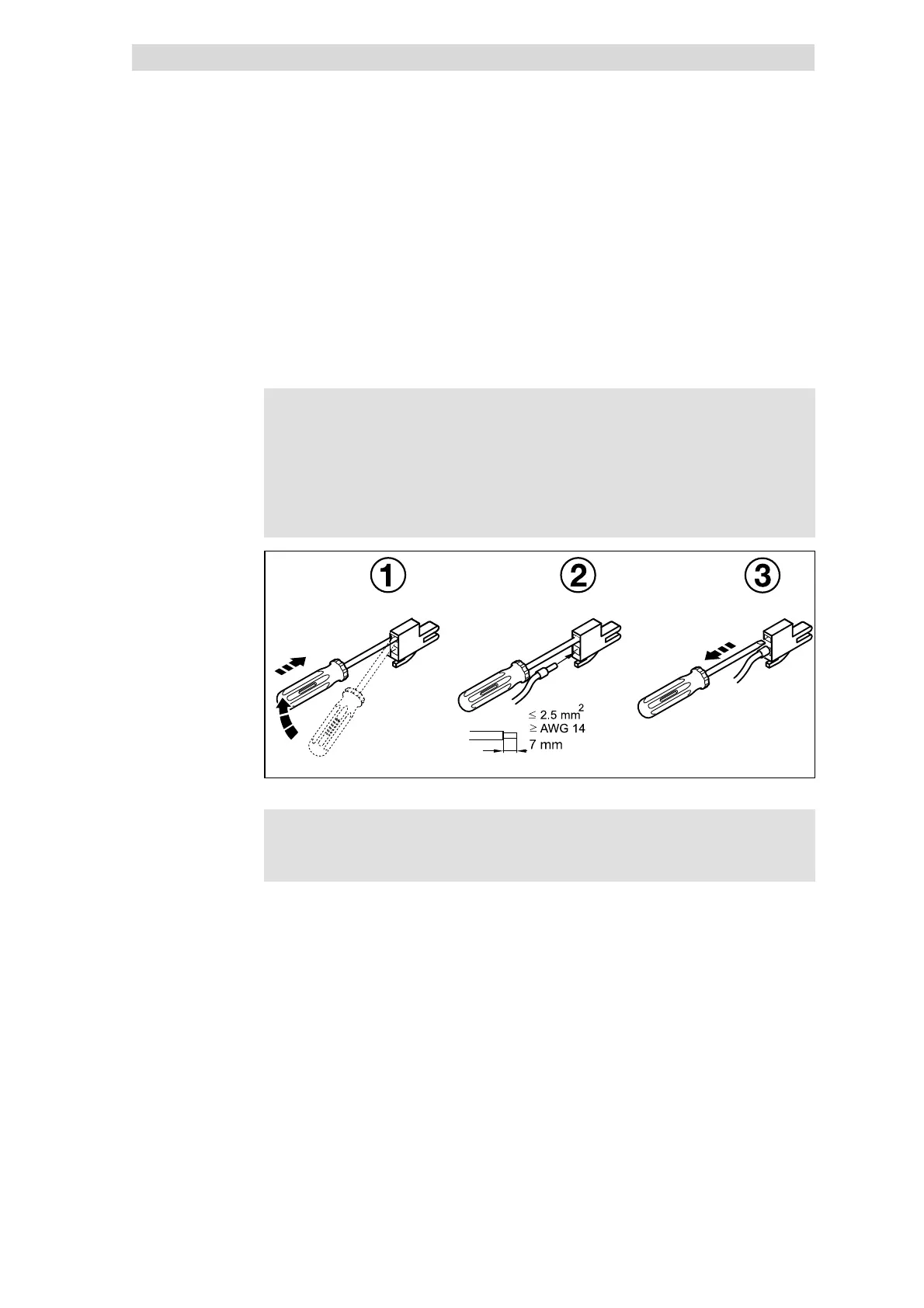

Fig. 6.2-1 Wiring of the terminal strips
)
))
) Note!
Wiring without wire end ferrules is always possible.
