During operation
6-2
SHB9300CRV EN 2.0
6.1.2 In Global Drive Control
1. Click the ”Control” button in the ”Basic settings” dialog box.
2. Click the ”Diagnostic” button in the ”Control” dialog box.

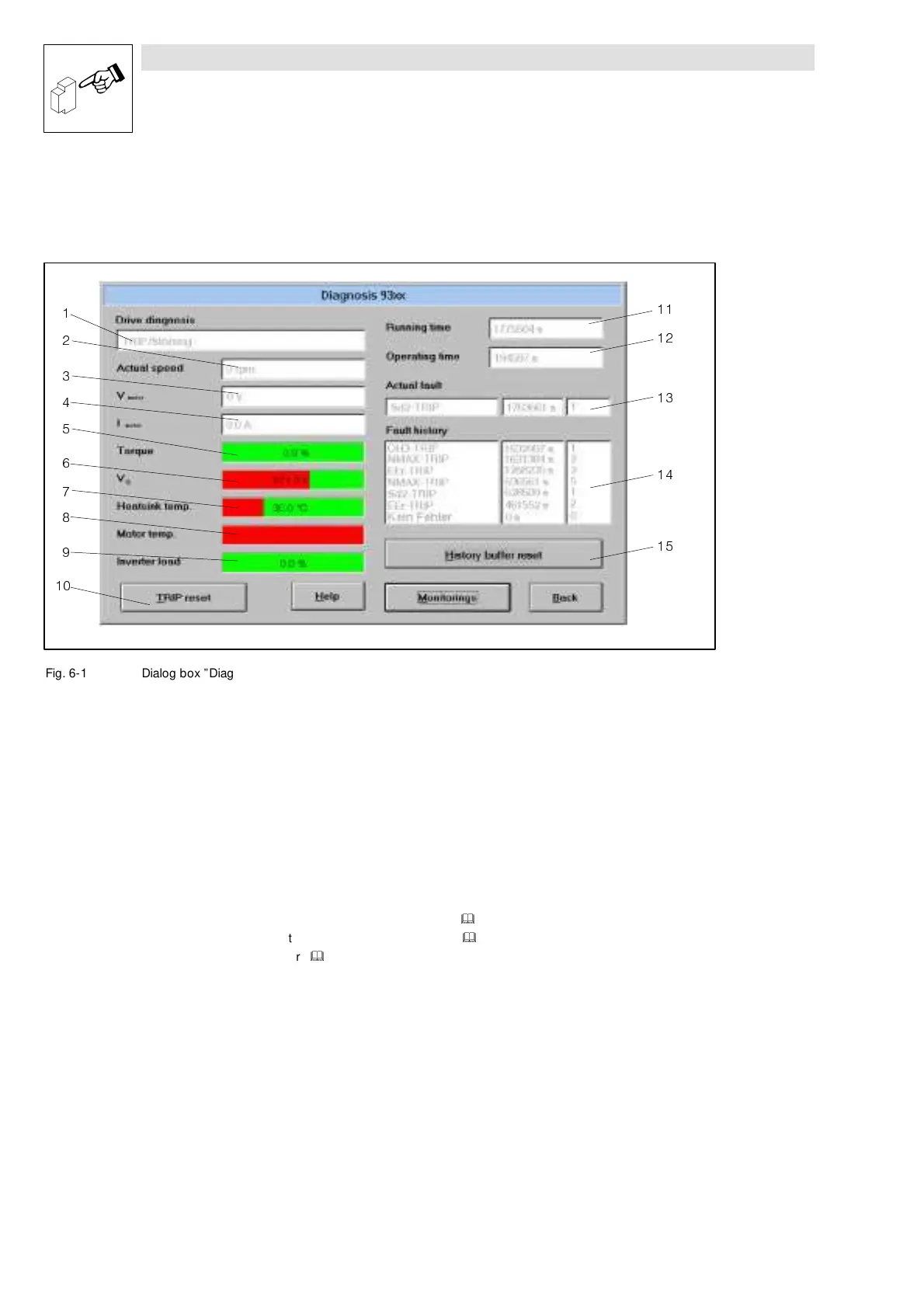

Fig. 6-1 Dialog box ”Diagnostics 9300”
1 Type of fault
2 Actual speed
3 Actual motor voltage
4 Actual motor current
5 Motor torque
6 DC-bus voltage
7 Heatsink temperature
8 Motor temperature
9 Controller load
10 Reset fault
11 Time when the supply voltage was applied
12 Time when the controller was enabled
13 Actual fault with time and frequency of the fault.
&
8-3
14 Fault history with time and frequency of the fault.
&
8-3
15 Reset history buffer.
&
8-4
