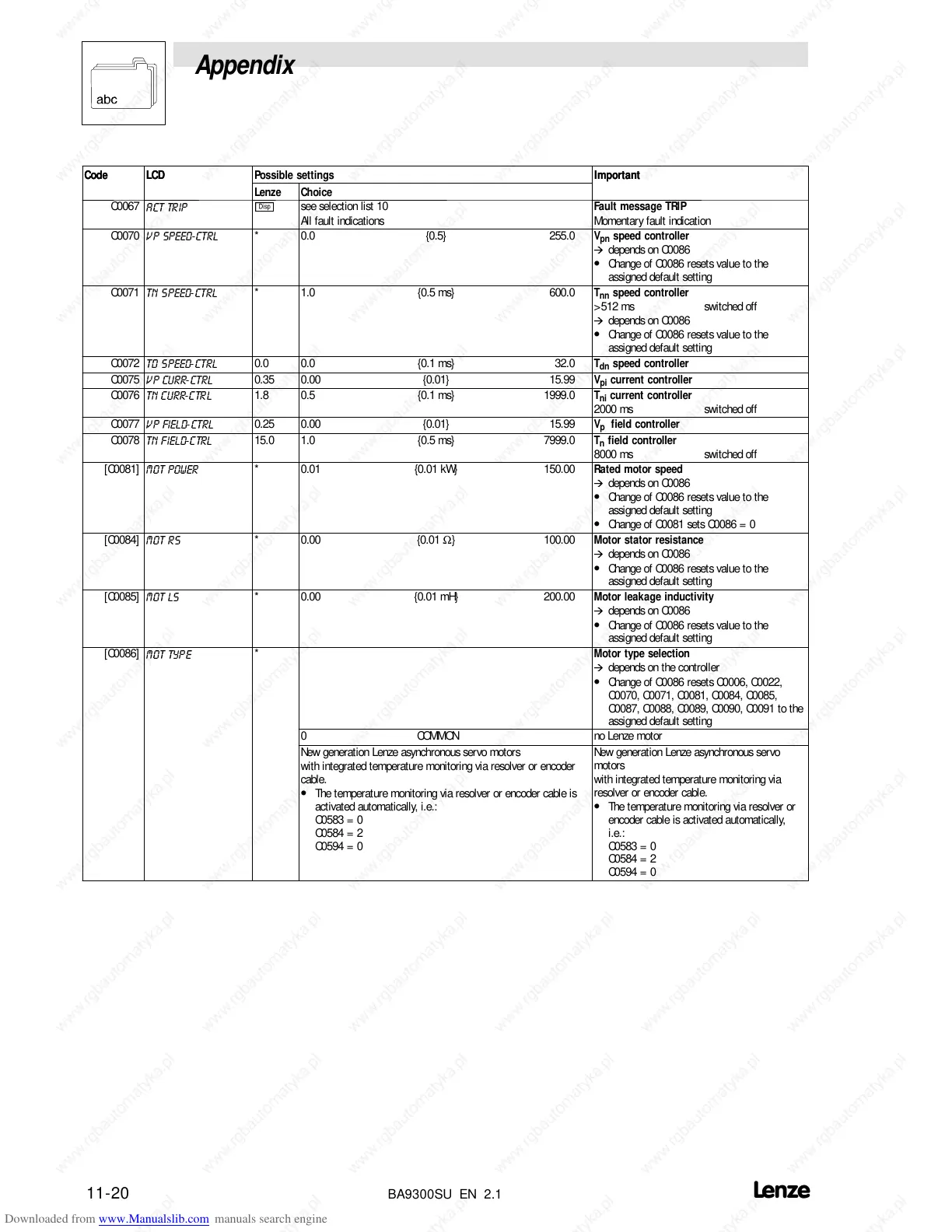

Lenze EVS9323-ES - Page 139

Appendix
11-20

BA9300SU EN 2.1
Code ImportantPossible settingsLCDCode Important
ChoiceLenze
LCD
C0067
$&7 75,3 g
see selection list 10
All fault indications
Fault message TRIP
Momentary fault indication
C0070
93 63(('&75/
* 0.0 {0.5} 255.0 V
pn
speed controller
Å depends on C0086
• Change of C0086 resets value to the
assigned default setting
C0071
71 RPFF'&75/
* 1.0 {0.5 ms} 600.0 T
nn
speed controller
>512 ms switched off
Å depends on C0086
• Change of C0086 resets value to the
assigned default setting
C0072
7' RPFF'&75/
0.0 0.0 {0.1 ms} 32.0 T
dn
speed controller
C0075
9P E855&75/
0.35 0.00 {0.01} 15.99 V
pi
current controller
C0076
71 E855&75/
1.8 0.5 {0.1 ms} 1999.0 T
ni
current controller
2000 ms switched off
C0077
9P GJFM'&75/
0.25 0.00 {0.01} 15.99 V
p
field controller
C0078
71 GJFM'&75/
15.0 1.0 {0.5 ms} 7999.0 T
n
field controller
8000 ms switched off
[C0081]
0OS POUF5
* 0.01 {0.01 kW} 150.00 Rated motor speed
Å depends on C0086
• Change of C0086 resets value to the
assigned default setting
• Change of C0081 sets C0086 = 0
[C0084]
0OS 5R
* 0.00 {0.01 Ω} 100.00 Motor stator resistance
Å depends on C0086
• Change of C0086 resets value to the
assigned default setting
[C0085]
0OS /R
* 0.00 {0.01 mH} 200.00 Motor leakage inductivity
Å depends on C0086
• Change of C0086 resets value to the
assigned default setting
[C0086]
0OS SWPF
* Motor type selection
Å depends on the controller
• Change of C0086 resets C0006, C0022,
C0070, C0071, C0081, C0084, C0085,
C0087, C0088, C0089, C0090, C0091 to the
assigned default setting
0 COMMON no Lenze motor
New generation Lenze asynchronous servo motors
with integrated temperature monitoring via resolver or encoder
cable.
• The temperature monitoring via resolver or encoder cable is
activated automatically, i.e.:
C0583 = 0
C0584 = 2
C0594 = 0
New generation Lenze asynchronous servo
motors
with integrated temperature monitoring via
resolver or encoder cable.
• The temperature monitoring via resolver or
encoder cable is activated automatically,
i.e.:
C0583 = 0
C0584 = 2
C0594 = 0
