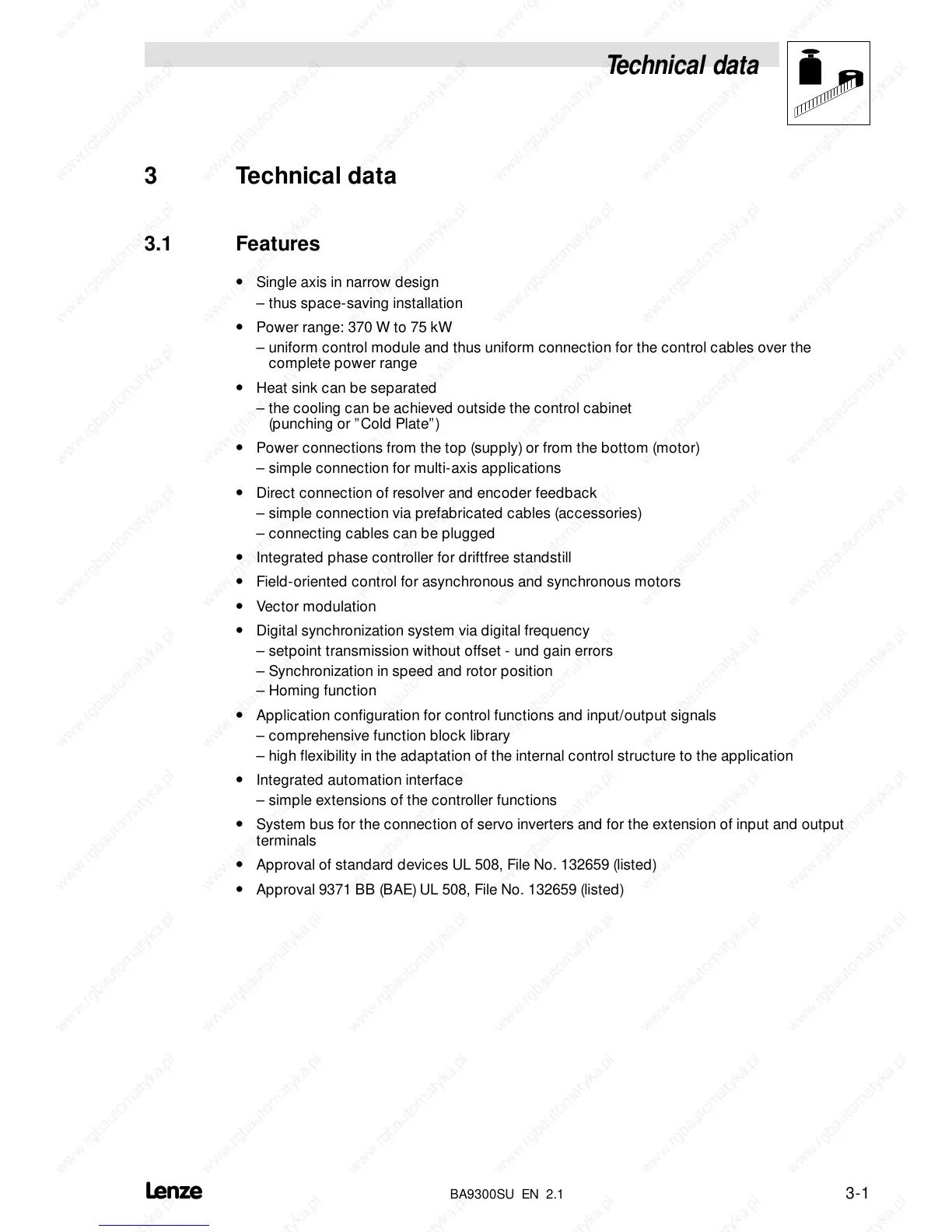

3 Technical data
3.1 Features
• Single axis in narrow design
– thus space-saving installation
• Power range: 370 W to 75 kW
– uniform control module and thus uniform connection for the control cables over the
complete power range
• Heat sink can be separated
– the cooling can be achieved outside the control cabinet
(punching or ”Cold Plate”)
• Power connections from the top (supply) or from the bottom (motor)
– simple connection for multi-axis applications
• Direct connection of resolver and encoder feedback
– simple connection via prefabricated cables (accessories)
– connecting cables can be plugged
• Integrated phase controller for driftfree standstill
• Field-oriented control for asynchronous and synchronous motors
• Vector modulation
• Digital synchronization system via digital frequency
– setpoint transmission without offset - und gain errors
– Synchronization in speed and rotor position
– Homing function
• Application configuration for control functions and input/output signals
– comprehensive function block library
– high flexibility in the adaptation of the internal control structure to the application
• Integrated automation interface
– simple extensions of the controller functions
• System bus for the connection of servo inverters and for the extension of input and output
terminals
• Approval of standard devices UL 508, File No. 132659 (listed)
• Approval 9371 BB (BAE) UL 508, File No. 132659 (listed)
