Gearbox with oil compensaon reservoir for mounng posion M4 (C)
In order to guarantee a reliable lubricaon of the toothed parts in mounng posion M4 (C)
(motor is on the gearbox vercal from the top), a high lling level is required in the gearbox.
As a result of the reduced volume of air in the gearbox, this may lead to oil escaping from the
venlaon at higher input speeds. The oil compensaon reservoir increases the expansion
space for the lubricant.
The oil compensaon reservoir can be ordered as a mounng set for fastening to the gearbox.
If insucient space is available, the oil compensaon reservoir can also be mounted over the
gearbox hose connecon on nearby system parts.

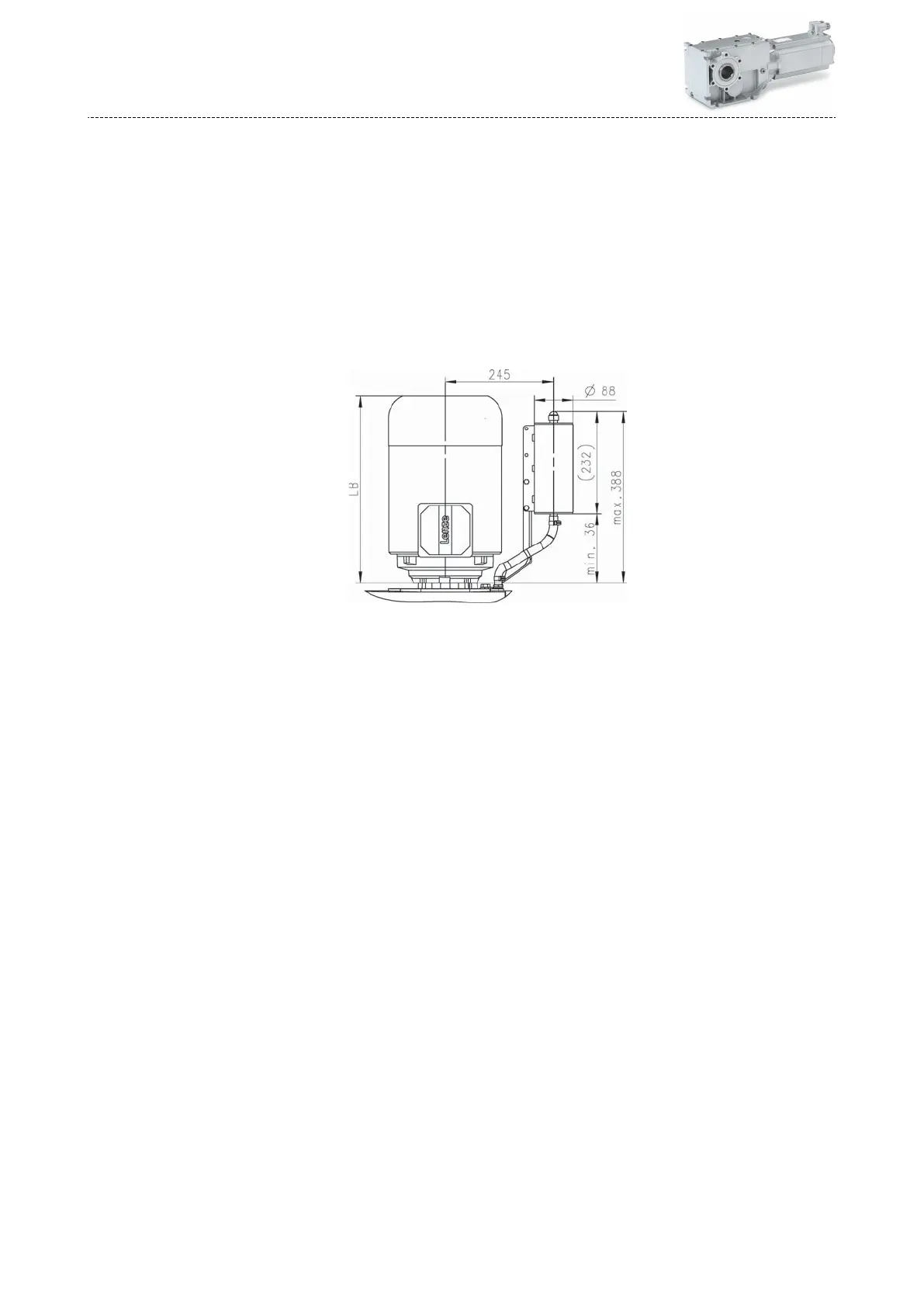

Dimensions of the oil compensaon reservoir
For the following gearboxes in mounng posion M4 (C), which exceed the specied min.
input speed, an oil expansion reservoir is required depending on the specied gear rao:
Informaon on project planning
Final conguraon
Venlaon
40
