Mechanical installation
Mounting

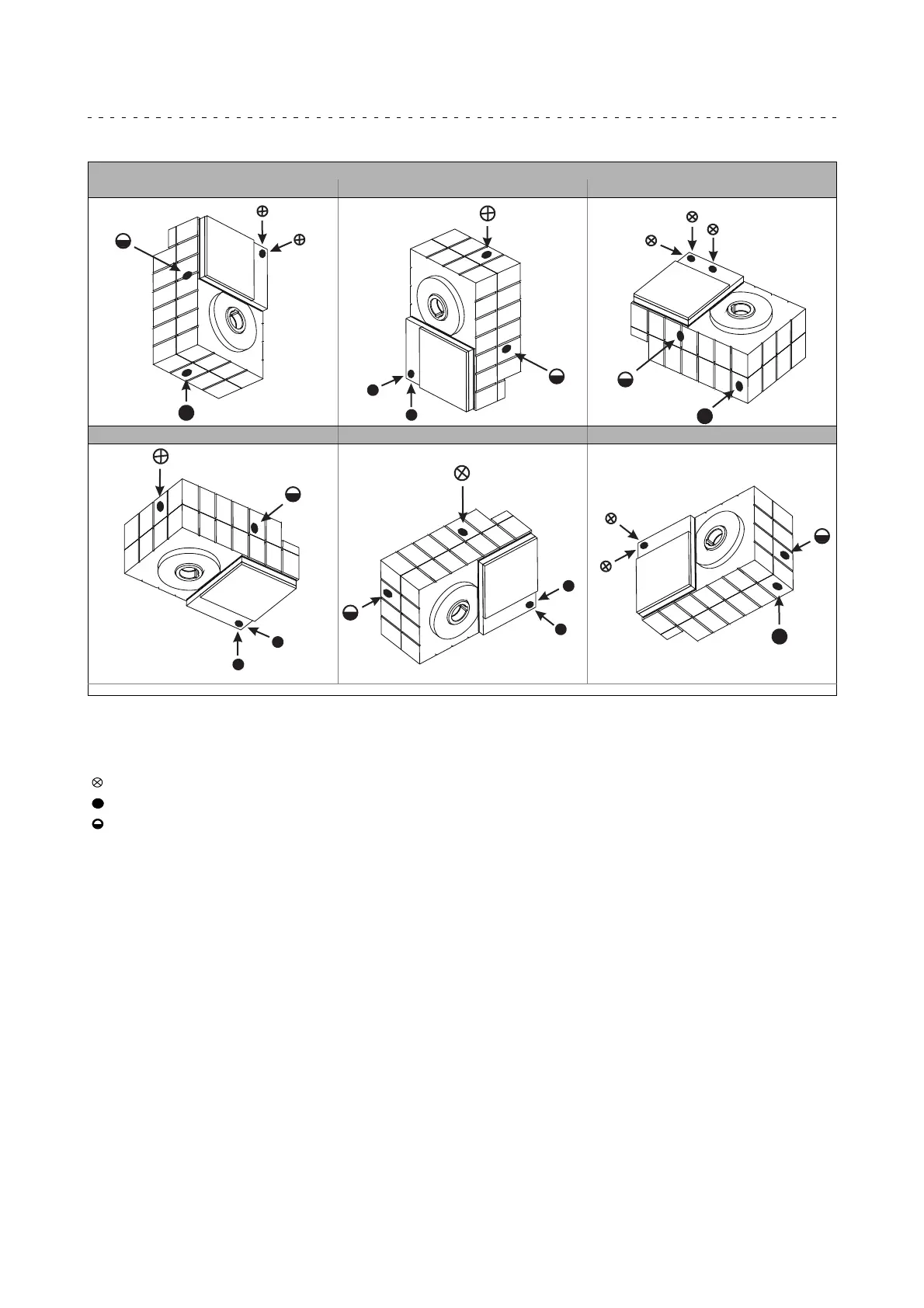

Breather position, oil filling screw and drain plug
5
44
Lenze • BA 12.0023 • 9.0
Shaft-mounted helical gearbox GFL 05 ... 14-2
A B C
2
1
1
2
GFL09...14
1
2
D E F
1
2
1
2
1
2
GT-GNG-GFL-2-001.iso/dms
A...F Mounting positions Pos. 1 Standard
*
On both sides
Pos. 2 only
with:
GFL05-2M 090C
**
On the opposite side GFL05-2M 100C
Breathing / oil filler plug GFL06-2M 112C
Oil drain plug GFL07-2M 160C
Oil-control plug
