Mechanical installation
Mounting
Breather position, oil filling screw and drain plug
5
45
Lenze • BA 12.0023 • 9.0
Shaft-mounted helical gearbox GFL 06 ... 14-3
A B C
2
1
GFL05
GFL06...14
1
2
GFL05
1
2
*
GFL14
GFL05
GFL06...14
D E F
1
2
*
GFL05
GFL06...14
*
1
2
GFL05
GFL06...14
*
1
2
GFL05
GFL06...14
GT-GNG-GFL-3-001.iso/dms

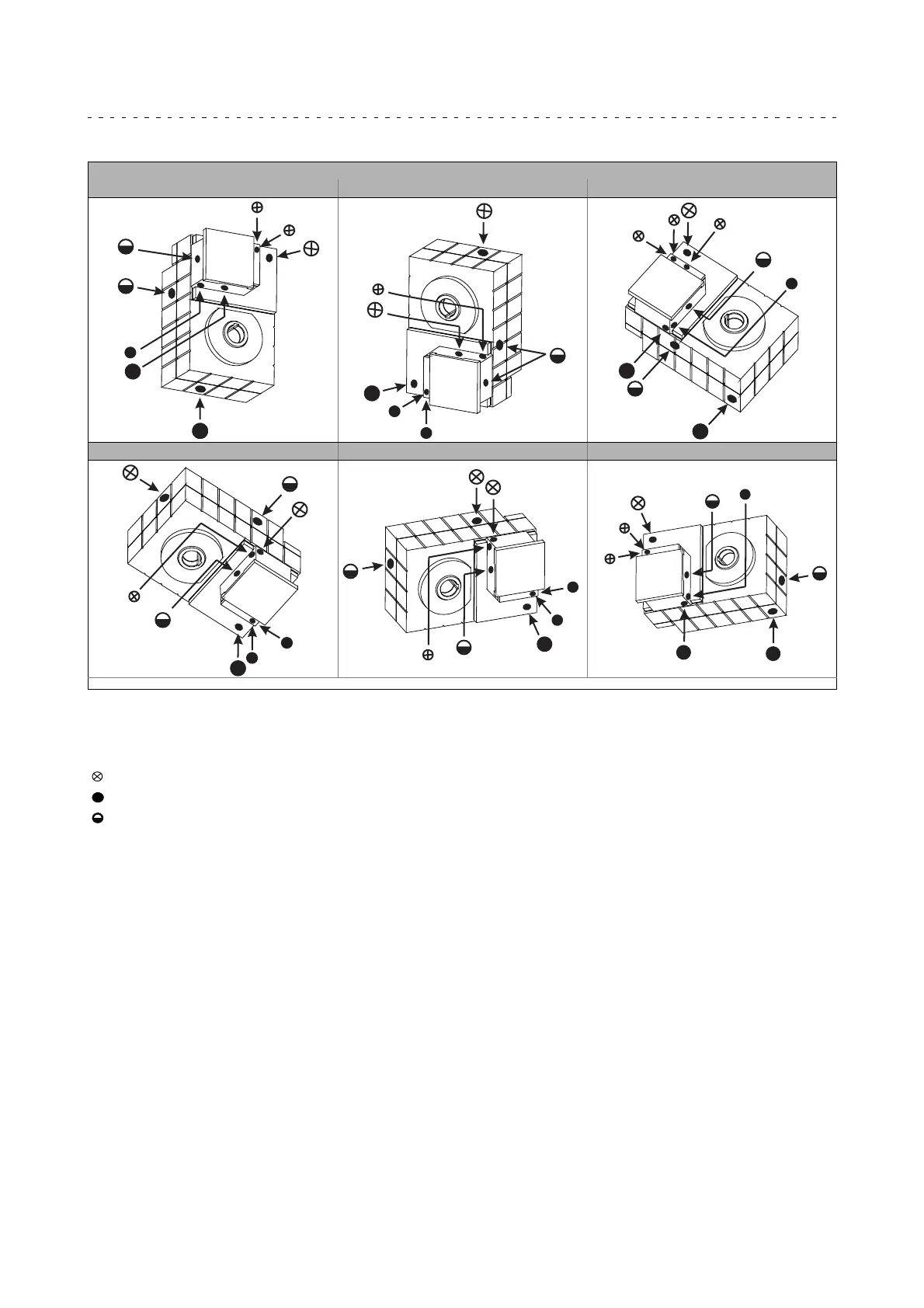

A...F Mounting positions Pos. 1 Standard
*
On both sides
Pos. 2 only
with:
GFL07-3M  090C
**
On the opposite side GFL07-3M  100C
Breathing / oil filler plug GFL09-3M  112C
Oil drain plug
Oil-control plug
