Maintenance
Maintenance operations
Lubricant quantity
8
65
Lenze • BA 12.0023 • 9.0

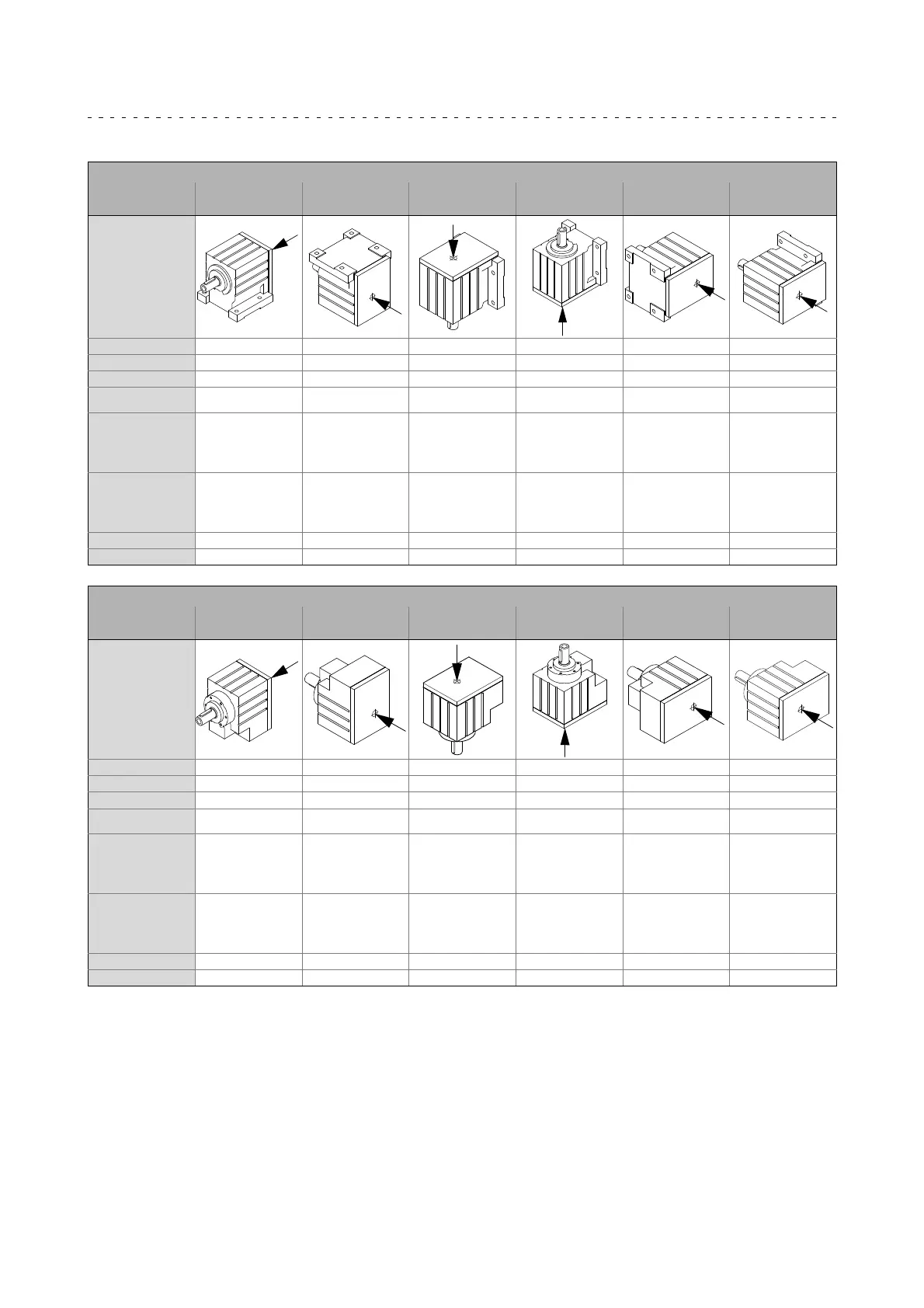

Helical gearbox GST-2;-3 VA /VB(foot housing)
Mounting
position
A B C D E F
GST03
0.2 0.2 0.2 0.2 0.2 0.2
GST04
0.35 0.5 0.45 0.55 0.3 0.3
GST05
0.5 0.80 0.75 1 0.55 0.55
GST06
0.6
0.7 M≥132
1.1
1.2 M≥132
1.2 1.7
1.8 M≥132
1.0
1.1 M≥132
1.0
1.1 M≥132
GST07
2.2
2.6 M≥132
A≥112
N≥1G
W≥1G
2.5
2.9 M≥132
A≥112
N≥1G
W≥1G
2.6 3
3.7 M≥132
A≥112
N≥1G
W≥1G
1.7
2.1 M≥132
A≥112
N≥1G
W≥1G
1.7
2.1 M≥132
A≥112
N≥1G
W≥1G
GST09
4.2
4.8 M≥132
A≥112
N≥1G
W≥1G
5.3
5.9 M≥132
A≥112
N≥1G
W≥1G
5.4 6.1
7.3 M≥132
A≥112
N≥1G
W≥1G
3.1
3.7 M≥132
A≥112
N≥1G
W≥1G
3.1
3.7 M≥132
A≥112
N≥1G
W≥1G
GST11
8.5 9.5 10 11.5 7 7
GST14
15 18 18 20 11 11
Helical gearbox GST-2;-3VC(flange housing)
Mounting
position
A B C D E F
GST03
0.17 0.17 0.17 0.17 0.17 0.17
GST04
0.35 0.45 0.3 0.6 0.3 0.3
GST05
0.45 0.7 0.6 0.95 0.45 0.45
GST06
0.5
0.6 M≥132
0.9
1.0 M≥132
1.1 1.6
1.7 M≥132
0.9
1.0 M≥132
0.9
1.0 M≥132
GST07
1.8
2.2 M≥132
A≥112
N≥1G
W≥1G
2.4
2.8 M≥132
A≥112
N≥1G
W≥1G
2.2 2.7
3.4 M≥132
A≥112
N≥1G
W≥1G
1.5
1.9 M≥132
A≥112
N≥1G
W≥1G
1.5
1.9 M≥132
A≥112
N≥1G
W≥1G
GST09
3.5
4.1 M≥132
A≥112
N≥1G
W≥1G
4.5
5.0 M≥132
A≥112
N≥1G
W≥1G
4.4 5.5
6.7 M≥132
A≥112
N≥1G
W≥1G
2.8
3.4 M≥132
A≥112
N≥1G
W≥1G
2.8
3.4 M≥132
A≥112
N≥1G
W≥1G
GST11
7.5 8.5 8.0 10.5 6 6
GST14
13 16 14 18 9.5 9.5
Tab. 11 Amount of lubricant in litres

Drive 90...132 Motor size
A, M, N, W Drive-end version 1A ...2K Drive size
