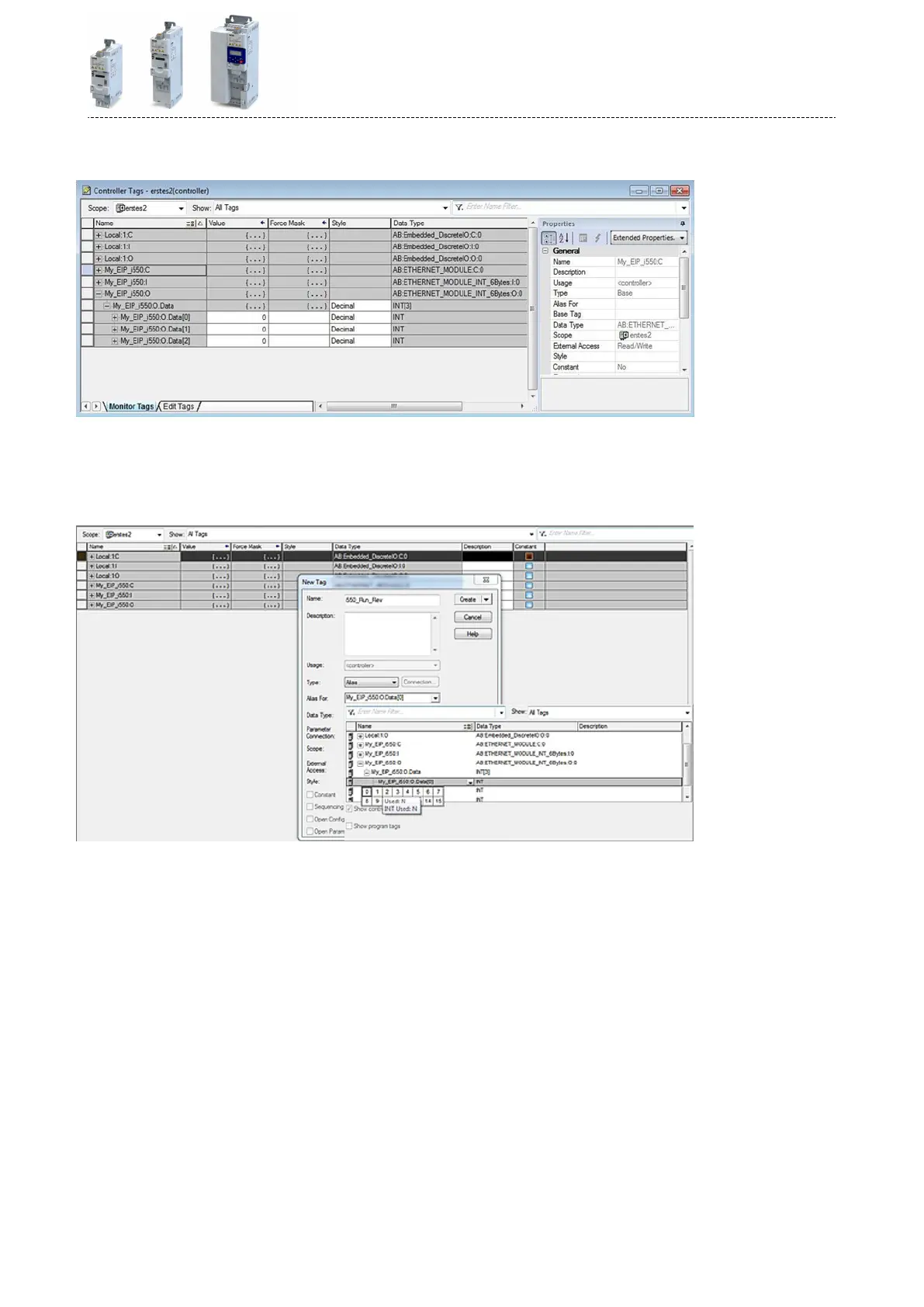

Here, for instance, the four words are displayed, the output assembly "My_EIP_i550:O"
consists of:
2.Creang alias tags for individual bits of the assemblies.
1. In the navigaon tree (Controller Organizer) under "Controller", open the "Controller
Tags".
2. Right-click any tag to execute the "New Tag" context menu command.
The "New Tag" dialog box is opened.
3. Fill in input elds.
In the example ...
a) the name "i550_Run_Rev" is entered.
b) the "Alias" type is selected.
c) in the output assembly word "My_EIP_i550:O.Data[0]", bit 1 is assigned to
"Run_Rev".
4. Click "Create".
The new alias tag is added to the database.
The conguraon is now completed.
Conguring the network
EtherNet/IP
